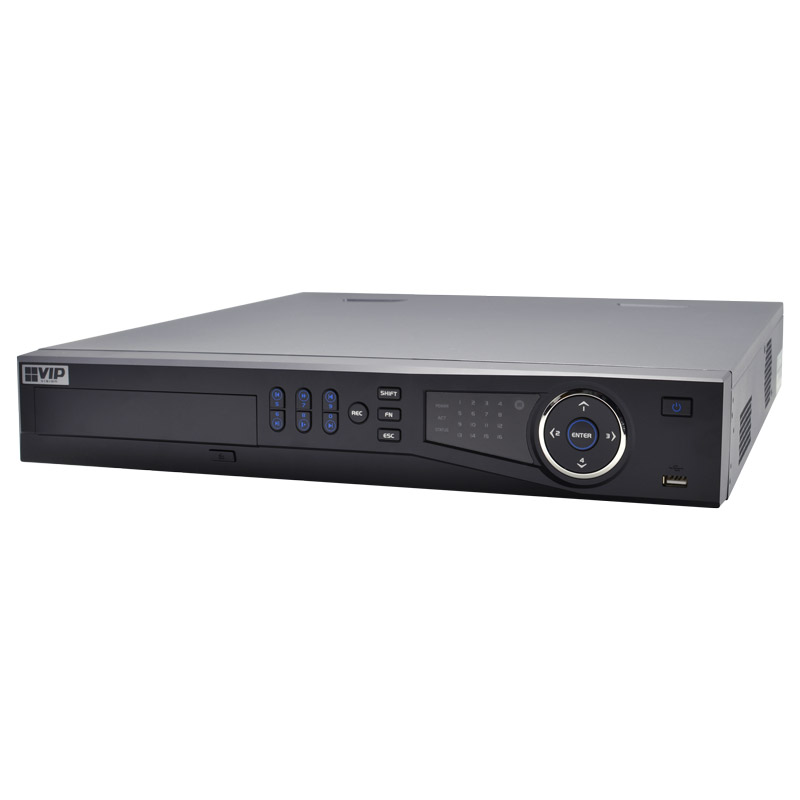

Professional 32 Channel Network Video Recorder (256Mbps)

Brand logo
SKU NVR32PRONP
Brand logo

Professional 32 Channel Network Video Recorder (256Mbps)

SKU NVR32PRONP

Stock may be limited. Please contact us for availability or for an alternative item.

The VIP Vision NVR32PRONP is a 32 channel network video recorder, designed as an immediate and customisable high definition IP surveillance solution.

This NVR requires external Power over Ethernet (PoE) switches. The NVR supports up to 256Mbps incoming bandwidth and can record beyond up to 12MP resolution (4000 x 3000).

Adjusting recording settings, exporting footage and live viewing camera streams are performed through an easy to use user interface. This NVR supports up to 24TB of internal storage via 4 x SATA ports and features continuous recording. This NVR is also capable of live view output in Ultra HD resolution (3840 x 2160), allowing cameras to display at their maximum resolution on compatible UHD monitors/televisions.

Smartphone and tablet remote viewing is available for iOS (iPhone, iPad), Google Android and Microsoft Windows Phone via free applications and can be configured in seconds using the remote view QR code tool.

The NVR32PRONP can backup footage to external USB devices, eSATA devices, an internal DVD-RW burner (optional) as well as via the local network.

Suggested Products

Suggested product image
24" LG LCD Monitor
LCDLG24W
Suggested product image
6RU 450mm Deep Wall Mount Data Cabinet
RACKMOUNTCAB6-450W
Suggested product image
2000VA Line-Interactive Tower UPS - 1200W
UPS2000VA

Links and Downloads

NVR32PRO(16P)(NP) Product Brochure (PDF) 1.25 MB
NVR_Firmware_TypeC_20160421 25.71 MB
Smart PSS V2.0 (Mac) 90.05 MB
VIP NVR Quick Start Guide - Blue GUI (PDF) 2.49 MB
Full NVR User Manual V4.3.0 - Blue GUI (PDF) 12.75 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Input / Output
16 channels input / 6 channels relay output
Auxiliary Inputs
1 x RS232 / 1 x RS485 / 1 x eSATA
Backup Modes
USB Device / Network / eSATA Device / Internal SATA burner
Bit Rate
1 ~ 20Mbps
Dimensions
440 x 405 x 76mm
Display Resolution
Configurable from 3840 x 2160 to 1024 x 768
Display Split
1/4/8/9/16
Ethernet
2 RJ-45 port (10/100/1000M)
HDD Modes
N/A
Incoming Bandwidth
256Mbps
Internal HDD
4 SATA ports, up to 24TB
Main Processor
Dual-core embedded processor
Max. User Access
128 users
Maximum Record Resolution
Configurable from 12.0MP(4000 x 3000) to CIF (352 x 288)
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search
ONVIF Conformance
2.4 Conformance
Operating Environment
-10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa
Operating System
Embedded Linux
Optical Interface
N/A
OSD
Camera title, Time, Video loss, Camera lock, Motion detection
Playback Sync
1/4/9/16
Power Consumption
17W
Power over Ethernet
N/A
Power Supply
100 ~ 240VAC, 50 ~ 60Hz
Record Interval
1~120 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Record Modes
Manual / Schedule (Regular [Continuous], MD, Alarm) / Stop
Remote View
iOS (iPhone, iPad) / Android devices / Windows Phone
Search Modes
Time/Date, Alarm, By Motion, Exact search, Smart search
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer
Two-way Talk
1 channel input / 1 channel output / RCA
USB Interface
3 ports: Rear USB3.0 / Front USB2.0
Video Compression
H.265 / H.264 / MJPEG
Video Detection
Motion (Zones: 396(22× 18)), Video Loss, Camera Blank
Video Input
32 channel
Video Output
2 x HDMI / VGA
Weight
4.35kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
525 mm
Height
210 mm
Depth
500 mm
Weight
9.10 kg
