General
Video Input
16 Channels
PoE
Yes
HDD Capacity
4
Processor & Operation
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Interoperability
ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK. Supports Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Canon. Chrome, IE9 and later, Firefox support.
App Integration
iOS / Android
Recording
Recording Resolution
Configurable from 32.0MP (6528 x 4896) to QCIF (176 x 144)
Network Bandwidth (AI Disabled)
384Mbps (incoming/recording/outgoing)
Network Bandwidth (AI Enabled)
200Mbps (incoming/recording/outgoing)
Video & Audio Compression
Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG, Audio: G.711a / G.711u / PCM / G726
Playback Channels
Up to 16 channels
Playback Modes
General Recording, Motion Detection, Intelligent Events, Alarm Triggers, POS
Decoding Capacity (AI Disabled)
8CH@8.0MP/25fps, 16CH@4.0MP/25fps
Decoding Capacity (AI Enabled)
12CH@4.0MP/25fps
Backup Method
USB device / Network / eSATA

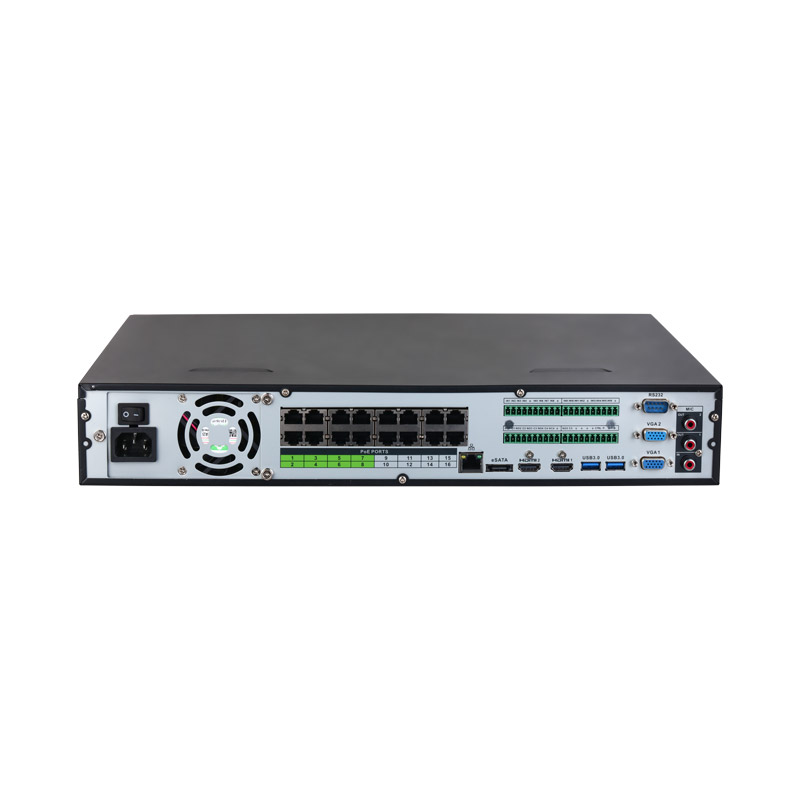

Interface
HDD
4 x SATA bays, up to 16TB per bay
Audio
1 channel input (RCA), 2 channel output (RCA)
Alarm Interface
16 channels input, 6 channels output
Alarm Types
General (motion, video loss, scene change, etc.), Anomalies (camera disconnect, disk full, IP conflict , etc.), Intelligent (AI alerts, face, human/vehicle, etc.)
Alarm Actions
Begin record, take snapshot, camera external alarm output, access controller, audio, buzzer, NVR log, camera preset, email
Display Output
2 x HDMI (up to 3840 x 2160), 2 x VGA (up to 1920 x 1080)
Display Split
1st & 2nd Screens: 1/4/8/9/16
Display Mode
Multiple sources: HDMI1+VGA1 (Mirror), HDMI2+VGA2 (Mirror)
Network Input
1 x 1000Mbps Ethernet uplink, 16 x PoE 100Mbps (802.3af/at), ports 1-8 supports ePoE
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
USB & Other Inputs
1 x Front USB 2.0, 2 x Rear USB 3.0 / 1 x RS-485, 1 x RS-232, 1 x eSATA
Artificial Intelligence
NVR Operated AI
Face Detection, Face Recognition, AI Human/Vehicle Detection
Supported Camera AI
Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp
Face Detection Functions
Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Detection (By NVR)
2 channel (up to 12 face images per second, per channel)
Face Detection (By Camera)
16 channels
Face Recognition Capacity
NVR Supports up to 20 face databases and 20,000 face images
Face Recognition (By NVR)
2 channel (Face detection via NVR video stream analysis; Face recognition performed by NVR) 16 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
Face Recognition (By Camera)
16 channels
Human/Vehicle Detection Functions
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
Human/Vehicle Detection (By NVR)
IVS: 4 channels (10 rules per channel), SMD: 8 channels
Human/Vehicle Detection (By Camera)
IVS: 16 channels, SMD: 16 channels
ANPR Functions
Up to 20,000 plate numbers, blocklist & allowlist
ANPR (By Camera)
8 channels
Video Metadata Functions
People (clothing colour, hat, bag, umbrella, etc.), Vehicle (vehicle colour, vehicle model, number plate, etc.)
Video Metadata (By NVR)
-
Video Metadata (By Camera)
8 channels
Environment
Power Supply
100–240 VAC ~ 50-60 Hz
Power Consumption
≤ 13W (without HDD) / PoE: Max 25.5W for single port, 130W total
Operating Environment
- 10°C ~ +55°C / 10 ~ 93%RH
Rackmountable
Yes
Rackmount Units
1.5U
Dimensions
440mm × 416mm × 76mm
Weight
4.82kg (without HDD)
Warranty (Years)
4
