General
Video Input
16 channels
PoE
Yes, w/ ePoE
HDD Capacity
Processor & Operation
Interoperability
ONVIF 2.4, SDK, CGI
App Integration
Recording
Recording Resolution
Configurable from: 16.0MP (4920 x 3264) to D1 (704 x 480)
Network Bandwidth (AI Disabled)
Network Bandwidth (AI Enabled)
Video & Audio Compression
Playback Channels
Playback Modes
Decoding Capacity (AI Disabled)
Decoding Capacity (AI Enabled)
Backup Method
Interface
HDD
Audio
Alarm Interface
Alarm Types
Alarm Actions
Display Output
Display Split
1/4/8/9/16
Display Mode
Network Input
Network Functions
HTP, HTTPS, TCP/IP, IPv4/IPV6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPoE, DDNS, FTP, Alarm server, IP Search (supports VIP cameras/NVRs), P2P
USB & Other Inputs
Artificial Intelligence
NVR Operated AI
Supported Camera AI
Face Detection Functions
Face Detection (By NVR)
Face Detection (By Camera)
Face Recognition Capacity
Face Recognition (By NVR)
Face Recognition (By Camera)
Human/Vehicle Detection Functions
Human/Vehicle Detection (By NVR)
Human/Vehicle Detection (By Camera)
ANPR Functions
ANPR (By Camera)
Video Metadata Functions
Video Metadata (By NVR)
Video Metadata (By Camera)
Environment
Power Supply
Single, AC100V~240V, 40~60 Hz
Power Consumption
<21.1W (without HDD) / PoE: 25.5W per port, 150W total
Operating Environment
-10°C ~ +55°C / 0 ~ 90%RH / 86 ~ 106kpa
Rackmountable
No
Rackmount Units
1RU

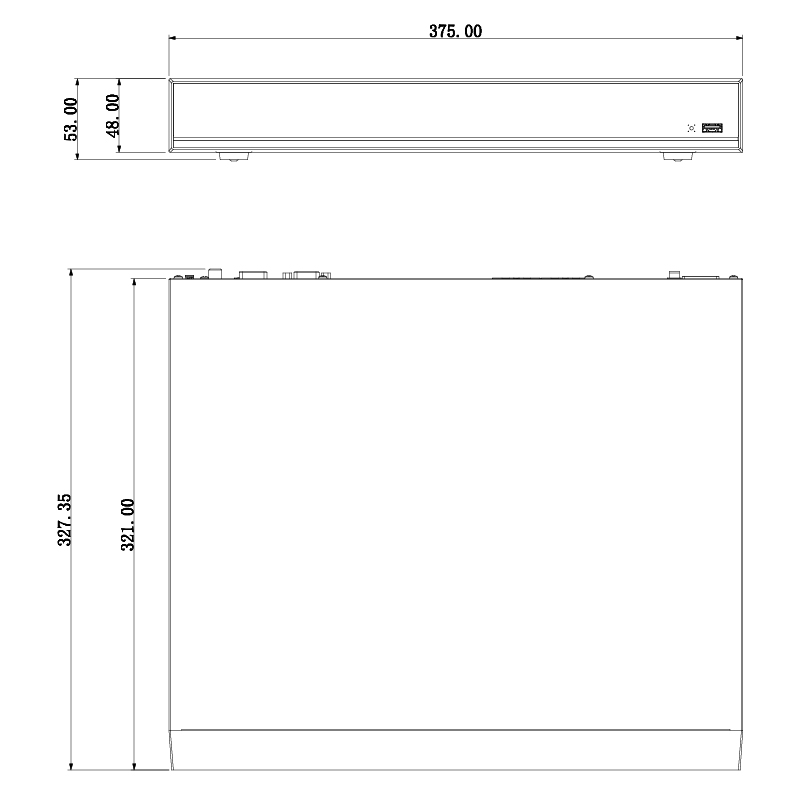

Dimensions
375mm x 327.3mm x 53mm
Weight
2.70Kg (without HDD)
Other
AI Search (Face Recognition)
Up to 8 target face images at the same time
AI Search (Metadata)
Support search target video by metadata
AI Search (Perimeter Protection)
Search by target classification (Human, Vehicle)
Alarm Input / Output
4 channel Alarm inputs / 2 channel Relay Outputs
Auxiliary Inputs
1 x RS232, 1 x RS485
Backup Modes
USB Device / Network
Database Application
Each database can be applied to video channels independently
Database Management
Up to 20 face databases with 100,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
Decoding Capacity
4 channels: 8.0MP (30fps) / 16 channels: 1080p (30fps)
Display Resolution
Configurable from: HDMI/ VGA - 3840 x 2160 to 1024 x 768
Ethernet
1 RJ45 Ports (10/100/1000Mbps)
Face
Gender, age, glasses, beard, mask
HDD Modes
N/A
Human Body
Tops style, tops colour, bottom style, bottom colour, hat , bag
Incoming Bandwidth
320Mbps (160Mbps when AI function is enabled)
Internal HDD
2 x SATA ports up to 10TB, max. 20TB HDD capacity
Main Processor
Multi-core embedded processor
Max. User Access
128 users
Non-motor Vehicle
Type, colour, people, number
Object Classification
Human / vehicle secondary recognition for tripwire and intrusion
Operating System
Embedded LINUX
Optical Interface
N/A
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Performance (Face Recognition)
Max. 22 face pictures per second (modeling and comparing), Approx. 16 channels face recognition with Ultimate AI cameras / Approx. 4 channels face recognition with Professional AI & standard cameras (Performance varies depending on camera and resolution)
Performance (Perimeter Protection)
16 Channel, 10 IVS rules for each Channel
Playback Sync
1/4/9/16
Power over Ethernet
16 PoE Ports (IEE802.3af/at), 1-8 Ports Support ePoE & EoC
Record Interval
1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
Record Modes
Manual, Schedule (Continuous, MD (Motion Detection), Alarm, IVS)
Remote View
iOS (iPhone,iPad), Android Devices
Search Modes
Time / Date, Alarm, MD & Exact Search (to the second)
Stranger Mode
Detect strangers face (not in database)
Trigger Events
Alarm Out, Video Push, Email, Recording, PTZ, Tour, Snapshot, Voice Prompt , Buzzer & Screen Tips
Trigger Events (Face Recognition)
Buzzer, Voice Prompts, Email, snapshot, Recording, Alarm Out, PTZ activation, etc.
Two-way Talk
1 Channel Input, 1 Channel Output, RCA
USB Interface
2 x USB ports (1 x Rear USB 3.0, 1 x Front USB 2.0)
Vehicle
Vehicle colour, vehicle model, vehicle logo, plate colour, vehicle decorations, call, seatbelt
Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering & Scene Change
Video Output
1 x HDMI, 1 x VGA
Warranty (Years)
4
