Compact 16 Channel Network Video Recorder with PoE (200Mbps)

Brand logo
SKU NVR16COM
Brand logo

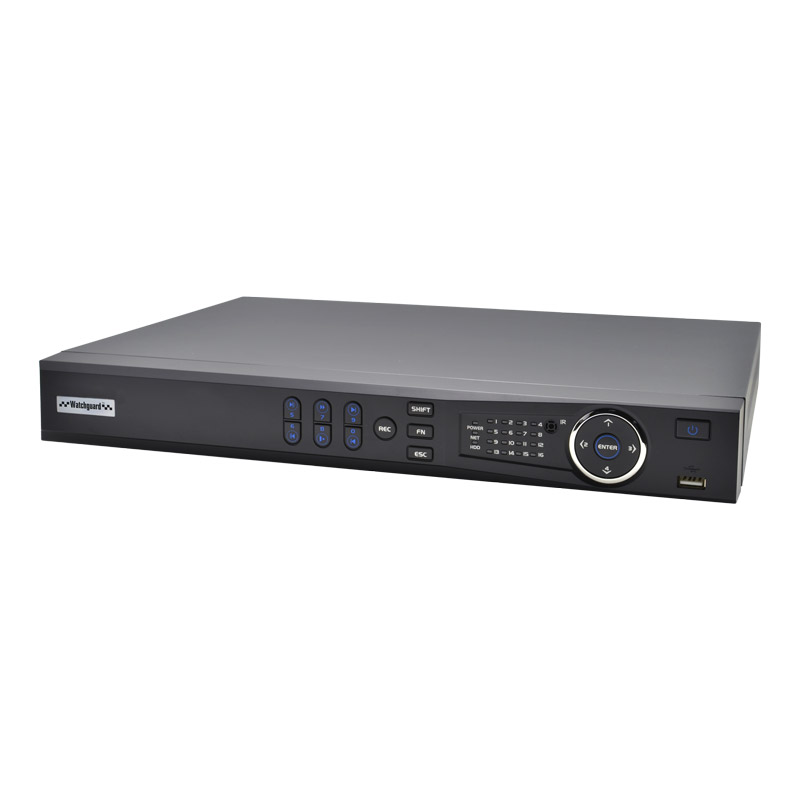

Compact 16 Channel Network Video Recorder with PoE (200Mbps)

SKU NVR16COM

Stock may be limited. Please contact us for availability or for an alternative item.

NVR16COM is a compact network video recorder with a built-in 16 port power over Ethernet switch, allowing easy plug and play installation.

Product features:
• Records up to 5.0 megapixel (2560 x 1920)
• Up to 200Mbps total incoming bandwidth
• 2 x SATA ports up to 10TB each, max. 20TB HDD capacity
• Built-in 16 port power over Ethernet switch
• Motion detection recording & record scheduling
• HDMI & VGA simultaneous video output
• Backup via external USB device or local network
• Remote view in seconds with setup via QR code

Suggested Products

Suggested product image
Compact 16 Channel 2.0MP IP Surveillance Kit (8 Domes, 8 Bullets)
NVR16COMPACK
Suggested product image
Compact 4 Channel Network Video Recorder with PoE (80Mbps)
NVR4COM
Suggested product image
Compact 8 Channel Network Video Recorder with PoE (80Mbps)
NVR8COM

Links and Downloads

NVRCOM Series Brochure (PDF) 0.75 MB
Smart PSS V2.0 (Mac) 90.05 MB
NVR_Firmware_TypeE_20170612 14.10 MB
Full NVR User Manual V4.3.0 - Blue GUI (PDF) 12.75 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Dual-core embedded processor
Operating System
Embedded Linux
Video Input
16 channels
PoE
HDD Capacity
Two-way Talk
1 channel input, 1 channel output, RCA
Interoperability
ONVIF 2.4, CGI Conformant
Display
Video Output
1 HDMI / 1 VGA
Display Resolution
1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768
Display Split
1/4/8/9/16
OSD
Title, time, video loss, camera lock, motion detection, recording
Recording
Recording Resolution
Configurable from 5.0MP (2560 x 1920) to CIF (352 x 288)
Incoming Bandwidth
200Mbps
Decoding Capacity
Video Compression
H.264 / MJPEG
Bit Rate
48~8192kbps
Record Modes
Manual / Schedule (Regular [Continuous], MD, Alarm) / Stop
Record Interval
1~120 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Features
Alarm Input / Output
4 channels input / 2 channels relay output
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection
Motion Detection, MD Zones: 396(22× 18), Video Loss & Camera Blank
Playback Sync
1/4/8/9/16
Search Modes
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Backup Modes
USB Device / Network / Internal SATA burner
Network
Ethernet
1 RJ-45 port (10/100/1000Mbps)
Power over Ethernet
16 ports (IEEE802.3at/af)
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support VIP Vision IP camera, DVR, NVS and etc.)
Optical Interface
N/A
Max. User Access
128 users
Remote View
iOS (iPhone, iPad); Android devices, Windows Phone
Storage
Internal HDD
2 x SATA ports up to 10TB, max. 20TB HDD capacity
HDD Modes
Single (no RAID compatibility)
USB Interface
2 ports: Rear USB3.0 / Front: USB2.0
Auxiliary Inputs
1 x RS232
Environment
Power Supply
AC 100~240V, 47/63 Hz
Power Consumption
NVR: 30W (without HDD) / PoE: Max 25.5W per port
Operating Environment
-10 ~+55°C / 10~90%RH / 86~106kpa
Rackmountable
Rackmount Units
Dimensions
Weight
2.5kg (without HDD)
Other
Dimensions / Rack Units
375mm x 327mm x 53mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
450 mm
Height
180 mm
Depth
430 mm
Weight
3.90 kg
