Ultimate 128 Channel Network Video Recorder (384Mbps)

Brand logo
SKU NVR128ULTNP
Brand logo

Ultimate 128 Channel Network Video Recorder (384Mbps)

SKU NVR128ULTNP

Stock may be limited. Please contact us for availability or for an alternative item.

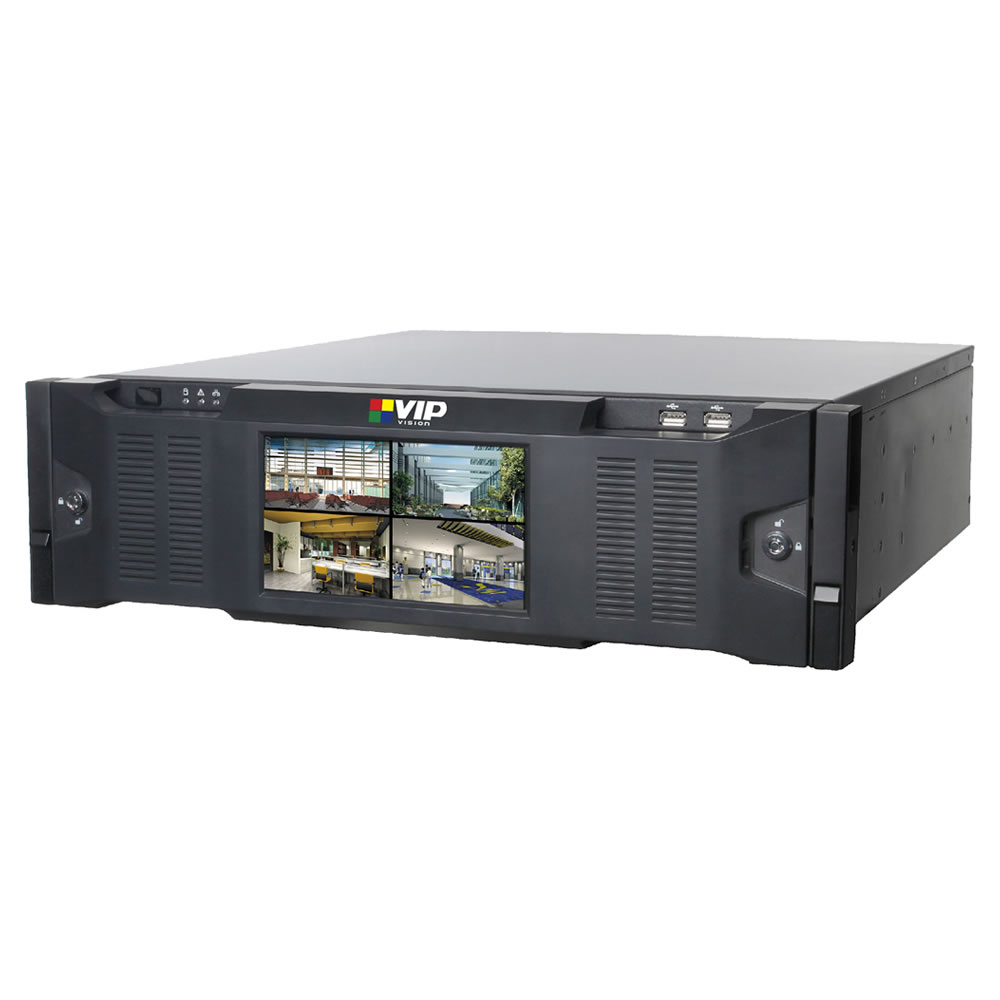

The VIP Vision NVR128ULTNP is a 128 channel network video recorder, designed as a high performance, high capacity, professional IP surveillance solution for enterprise applications.

Purpose built for large surveillance installations, the NVR128ULTNP is powered by Intel® Core™ processors and includes a 7’’ front panel LCD display. It features 16 x SATA ports for a maximum of 96TB of hard drive storage which can be optimised for speed or redundancy via a variety of RAID HDD configurations.

This NVR is also capable of live view output in Ultra HD resolution (3840 x 2160), allowing cameras to display at their maximum resolution on compatible UHD monitors/televisions.

The NVR128ULTNP supports up to 384Mbps incoming bandwidth and can record beyond full HD video at a maximum resolution of 12.0MP (4000 x 3000). It also supports configuration of the VIP Vision 360° IP camera range.

Accessing footage and changing settings remotely is possible from a local PC or over the internet via the NVR web interface. Smartphone and tablet remote viewing is available for iOS (iPhone, iPad), Google Android and Microsoft Windows Phone.

The NVR128ULTNP can backup footage to external USB devices, eSATA devices, an internal DVD-RW burner (optional) as well as via the local network

Suggested Products

Suggested product image
24" LG LCD Monitor
LCDLG24W
Suggested product image
6RU 600mm Deep Wall Mount Data Cabinet
RACKMOUNTCAB6-600W
Suggested product image
2000VA Line-Interactive Tower UPS - 1200W
UPS2000VA

Links and Downloads

NVR128ULTNP Product Brochure (PDF) 0.61 MB
HDD Space Calculator 6.17 MB
Smart PSS V2.0 (Mac) 90.05 MB
NVR_Firmware_TypeH_20160714 94.81 MB
Full NVR User Manual V4.3.0 - Blue GUI (PDF) 12.75 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Input / Output
16 channels input / 8 channels relay output
Auxiliary Inputs
1 x RS232 / 1 x RS485 / 1 x eSATA / 1 x Mini SAS
Backup Modes
USB Device / Network / eSATA Device / Internal SATA burner
Bit Rate
1 ~ 20Mbps
Dimensions
532 x 485 x 133mm
Display Resolution
Configurable from 3840 x 2160 to 1024 x 768
Display Split
1/4/8/9/16/25/36, Extra display: 1/4/8/9/16
Ethernet
4 RJ-45 ports (10/100/1000M): Load Balancing / Independent
HDD Modes
Single disk, RAID 0/1/5/6/10/50/60 (Global hot-spare support)
Incoming Bandwidth
384Mbps
Internal HDD
16 SATA ports, up to 96TB
Main Processor
Intel® Core™ Processors
Max. User Access
128 users
Maximum Record Resolution
Configurable from 12.0MP(4000 x 3000) to CIF (352 x 288)
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search
ONVIF Conformance
2.4 Conformance
Operating Environment
-10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa
Operating System
Embedded Linux
Optical Interface
2 x Gigabit Fibre Interface
OSD
Camera title, Time, Video loss, Camera lock, Motion detection
Playback Sync
128Mbps (RAID 5 mode) / 64Mbps (single HDD mode)
Power Consumption
NVR: < 51W (without HDD)
Power over Ethernet
N/A
Power Supply
100 ~ 240VAC, 50 ~ 60Hz
Record Interval
1~120 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Record Modes
Manual / Schedule (Regular [Continuous], MD, Alarm) / Stop
Remote View
iOS (iPhone, iPad) / Android devices / Windows Phone
Search Modes
Time/Date, Alarm, By Motion, Exact search, Smart search
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer
Two-way Talk
1 channel input / 1 channel output / RCA
USB Interface
4 ports: Rear USB3.0 / Front USB2.0
Video Compression
H.264 / MJPEG
Video Detection
Motion (Zones: 396(22× 18)), Video Loss, Camera Blank
Video Input
128 channel
Video Output
2 x HDMI / 1 VGA
Weight
17.45kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
485 mm
Height
532 mm
Depth
133 mm
Weight
17.50 kg
