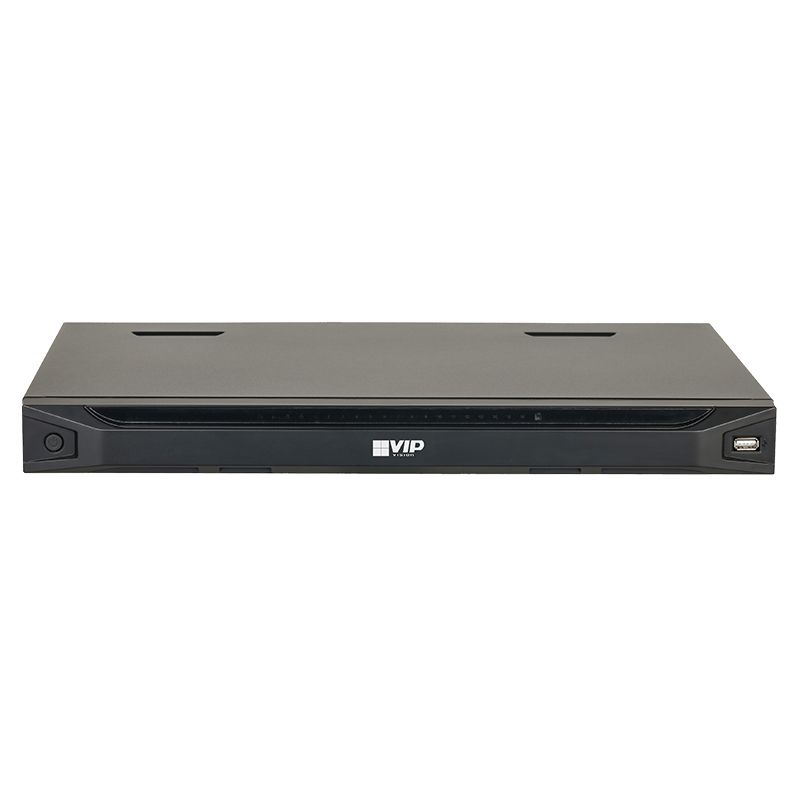

Ultra HD Network Video Decoder (4 x HDMI Out)

Brand logo
SKU NVD-A4
Brand logo

Ultra HD Network Video Decoder (4 x HDMI Out)

SKU NVD-A4

Stock may be limited. Please contact us for availability or for an alternative item.

The NVD-A4 is an IP video decoder that allows for configuration of up to 4 HDMI displays, creating video walls that display live footage from any camera or recorder connected to the network, plus any connected HDMI video inputs. Each decoder can be fully configured and adjusted over the network or with SmartPSS.

Product features:
• Roaming decoder displays all video feeds on network
• Video wall splicing for up to 36 displays per monitor
• Split screen control with zoom/merge/roam/overlay
• Switch between standard & high definition streams
• Decode up to 8CH 4K, 36CH 1080p or 144CH D1
• Support for audio, alarm, bi-directional talk, RS232, RS485
• Fisheye dewarp & multi-video split display
• Manage via web browser or VIP Vision™ SmartPSS

Suggested Products

Suggested product image
Ultra HD Network Video Decoder (9 x HDMI Out)
NVD-A9

Links and Downloads

VIP Vision NVD-A Series User Manual (PDF) 2.64 MB
VIP Vision NVD-A Series Quick Start Guide (PDF) 0.79 MB
VIP Vision NVD-A Series Datasheet (PDF) 0.38 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

System
Processor
Internal Processor
Operating System
Embedded Linux
Performance
Video Format
H.265+ / H.265 / H.264 / MJPEG / MPEG4
Audio Format
PCM / G.711A
Video Decoding Capacity (Separate)
Port 1 & 2: 1CH@8K / 4CH@4K / 18CH@1080p / 40CH@720p / 72CH@D1
Video Decoding Capacity (Total)
2CH@8K / 8CH@4K / 36CH@1080p / 80CH@720p / 144CH@D1
Decoding Resolution
32MP / 12MP / 8MP / 6MP / 5MP / 3MP / 1080p / 720p / 960H / D1 / HD1 / 2CIF / CIF / QCIF
Video Frame Rate
PAL: 1~25fps / NTSC: 1~30fps
Video Input
2 x HDMI 1.4
Video Output

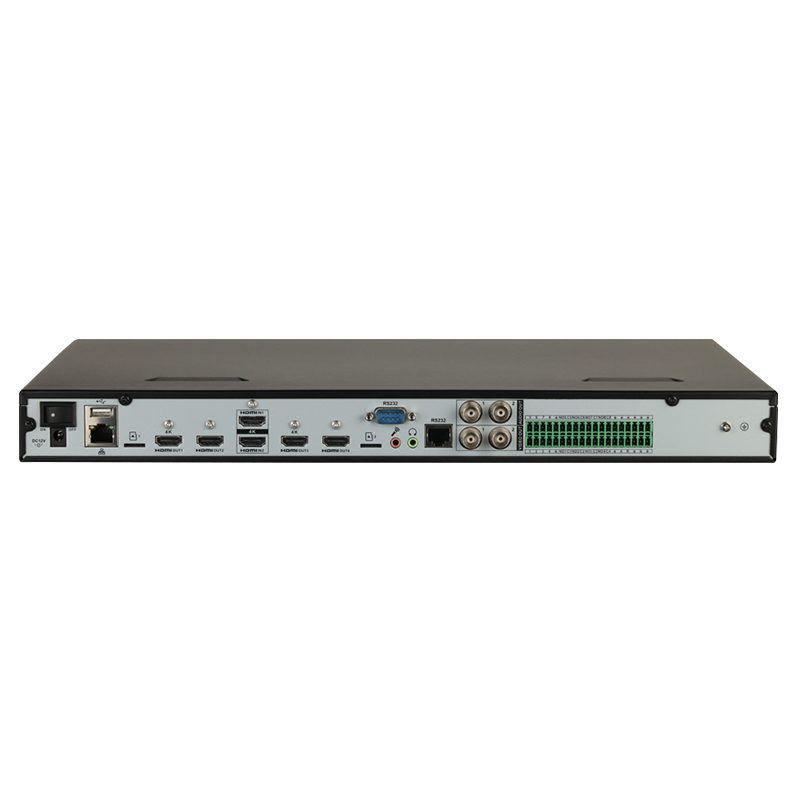

4 x HDMI (2 x HDMI 2.0, 2 x HDMI 1.4), 2 x BNC
Collection Resolution
4096 x 2160 @ 24fps / 3840 x 2160 @ 30fps / 1920 x 1080 and lower @ 60fps
Display Resolution
Odd interfaces: 3840 x 2160 / 1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768, Even interfaces: 1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768
Display Split
1 / 4 / 6 / 8 / 9 / 16 / 25 / 36
Bi-directional Talk
1 Pair 3.5mm jack (2.0V Line in / 50mV Mic in / 10KΩ,2.0V / 16Ω out)
Alarm Input
8ch
Alarm Output
8ch relay out (30VDC 1A, 125VAC, 0.5A)
Communication Interface
1 RJ45 network port (10M/100M/1000M); 2 RS232; 1 RS485
Environment
Power Supply
12VDC 5A
Power Consumption
≤40W
Operating Temperature
-10°C~+55°C, 10%~95%RH (86Kpa ~ 106Kpa)
Dimensions
440 x 322 x 44mm (1U)
Weight
3.23kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
450 mm
Height
50 mm
Depth
330 mm
Weight
3.50 kg
