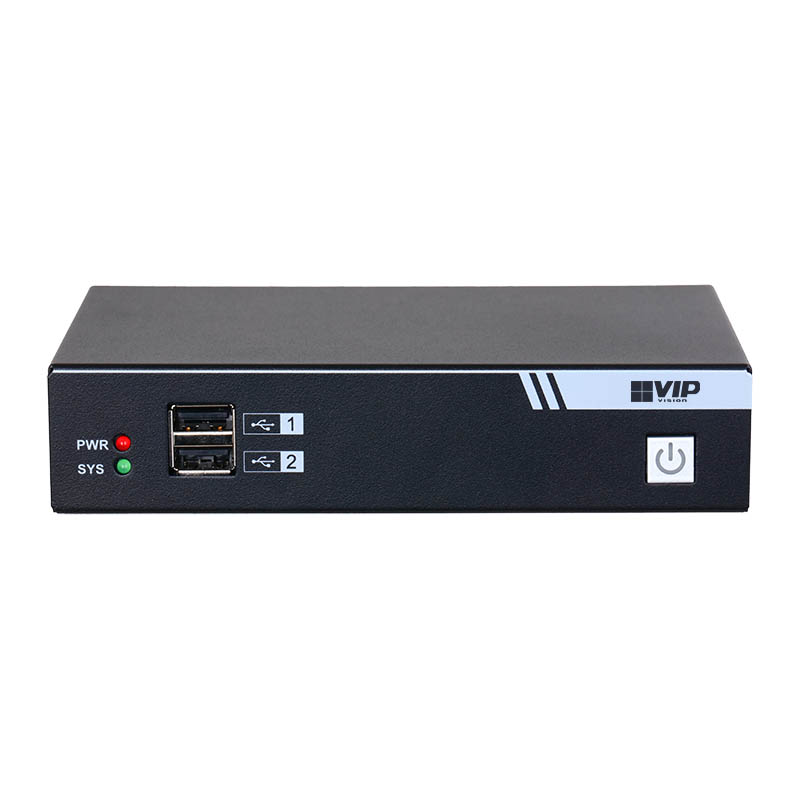

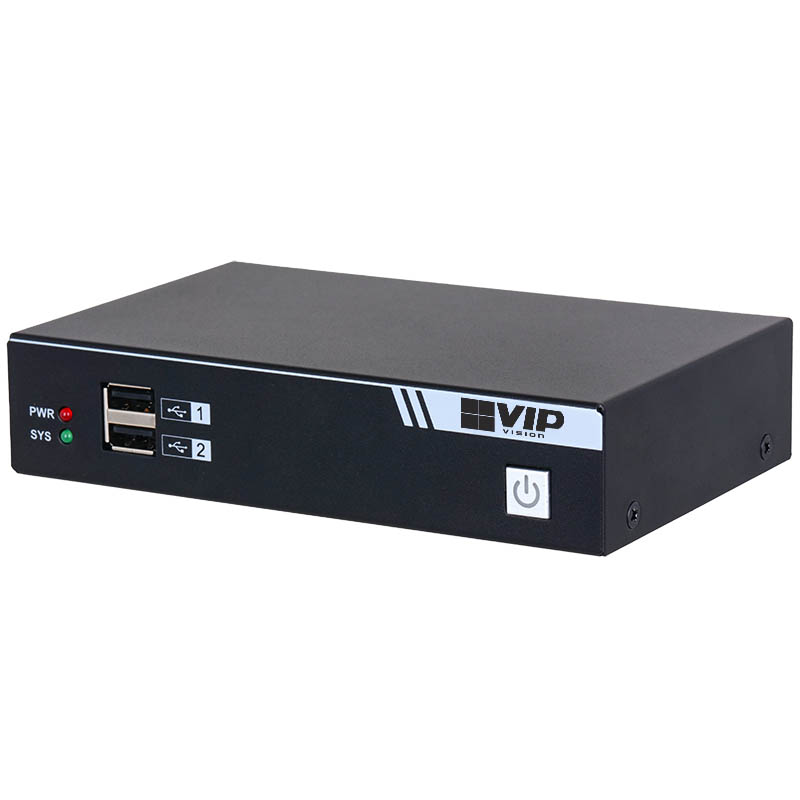

Ultra HD Network Video Decoder (2 x HDMI Out)

Brand logo
SKU NVD-A2
Brand logo

Ultra HD Network Video Decoder (2 x HDMI Out)

SKU NVD-A2

This product is Coming Soon. Please contact us for more information.

The NVD-A2 comes from a series of IP video decoders which allow the configuration of 2 HDMI displays, which create video walls of live footage from any camera or recorder connected to the network as well as any connected HDMI video inputs. This decoder can be fully configured and adjusted over the network or with SmartPSS.

Product Features
• Roaming decoder displays all video feeds on network
• Video wall slicing for up to 36 displays per monitor
• Split screen control with zoom, merge, roam and overlay
• Switch between standard and high definition streams
• Decode up to 2CH 4K, 48CH 1080p or 144CH D1
• Support for audio and multi-video split display
• Manage via web browser or VIP Vision SmartPSS.

Suggested Products

Suggested product image
Ultra HD Network Video Decoder (6 x HDMI Out)
NVD-A6
Suggested product image
Ultra HD Network Video Decoder (9 x HDMI Out)
NVD-A9

Links and Downloads

VIP Vision NVD-A Series Datasheet (PDF) 0.49 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

System
Processor
High-Performance Embedded Processor
Operating System
Embedded Linux
Performance
Video Format
H.265 / H.264
Audio Format
PCM
Video Decoding Capacity (Separate)
-
Video Decoding Capacity (Total)
Decodes maximum 2Ch@8MP(25fps), 3CH@6MP(25fps), 5CH@5MP(25fps), 5CH@4MP(25fps), 7CH@3MP(25fps), 10CH@1080p(30fps) and 32CH@D1(30FPS) Simultaneously
Decoding Resolution
8MP / 6MP / 5MP / 3MP / 1080p / 960H / D1
Video Frame Rate
PAL: 1~25fps / NTSC: 1~30fps
Video Input
-
Video Output
2 x HDMI
Collection Resolution
-
Display Resolution
1024 x 768@60Hz, 1280 x 720@60Hz, 1280 x 1024@60Hz and 1920 x 1080@60Hz
Display Split
1 / 4 / 6/ 8 / 9 / 16 / 25 split. Supports M x N custom split and M x N < 36
Bi-directional Talk
-
Alarm Input
-
Alarm Output
-

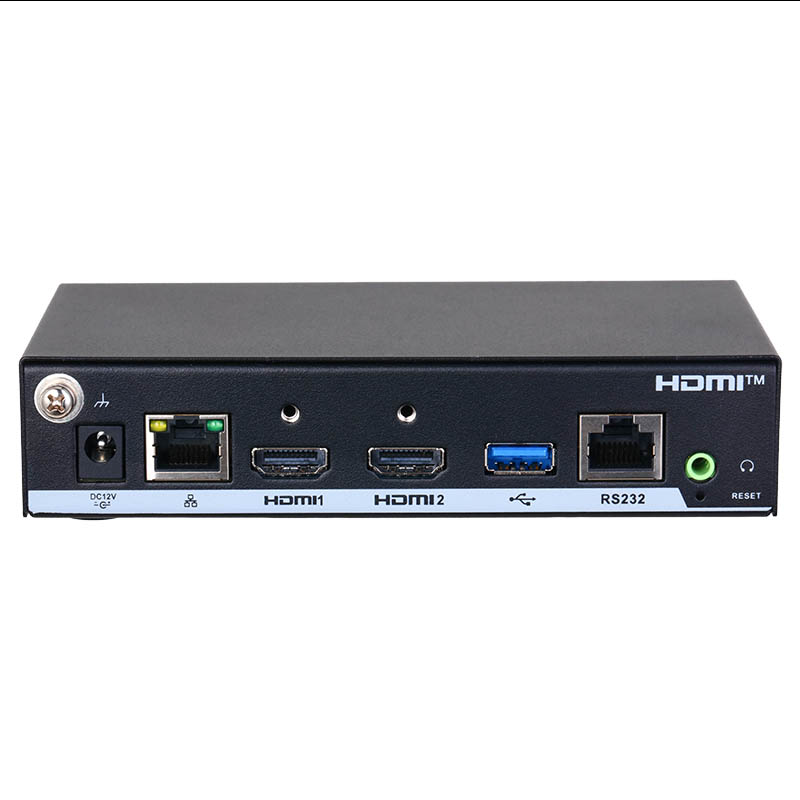

Communication Interface
1 x RJ45 network port (10 / 100 / 1000M), 1 x RS232 (via RJ45, 3 x USB
Environment
Power Supply
100-240 VAC, 50-60Hz
Power Consumption
<24W
Operating Temperature
-10°C to +55°C

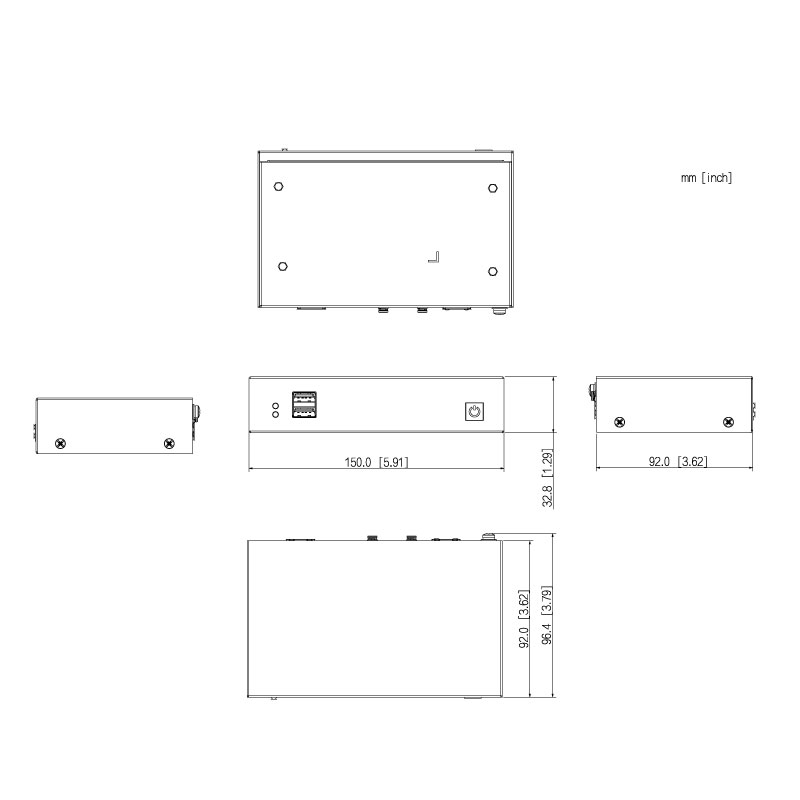

Dimensions
150.0 mm x 92.0 mm x 32.8 mm (L x H x W)
Weight
0.30kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
0 mm
Height
0 mm
Depth
0 mm
Weight
0.00 kg
