Securview 8 Channel Mobile HDCVI Recorder with GPS, 4G and WiFi

Brand logo
SKU MXVR-GPS8GW
Brand logo

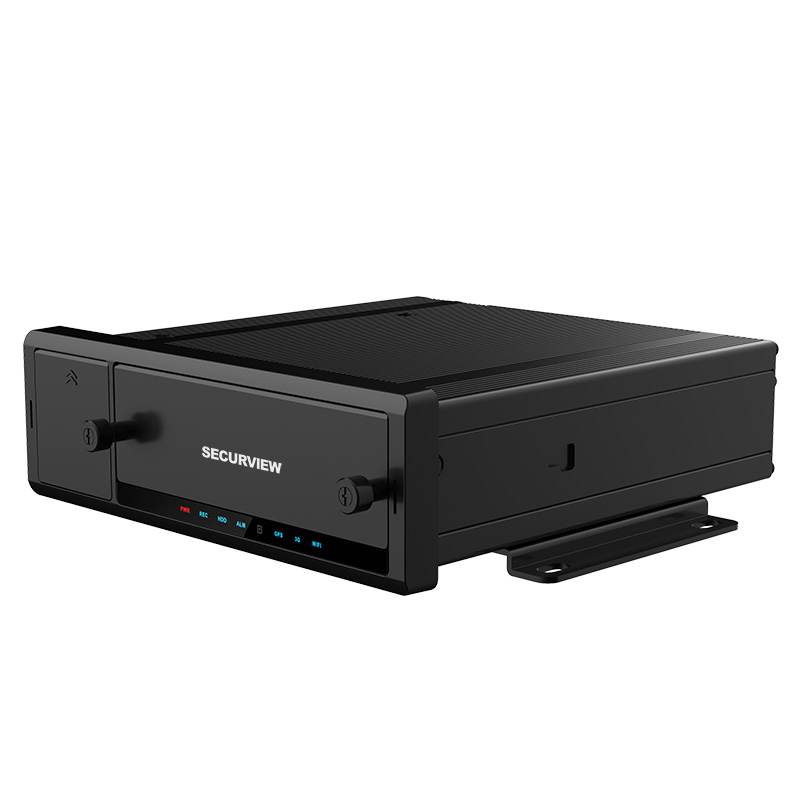

Securview 8 Channel Mobile HDCVI Recorder with GPS, 4G and WiFi

SKU MXVR-GPS8GW

The MXVR-GPS8GW is an 8 channel mobile HDCVI DVR with support for a wide range of mobile cameras to suit your vehicle surveillance needs.

A part of the Mobile Series from Securview, this model combines Full HD video, precision GPS, 4G and WiFi connectivity to deliver peace of mind when on the road. This series offers wide compatibility with all mobile camera technologies, including HDCVI, AHD, TVI, composite or IP* cameras, so you can create a vehicle video solution to your exact requirements.

Product features:
• Records 8 channels at 2.0MP / Full HD 1080p up to 25fps
• Support for HDCVI, HDTVI, AHD or analogue cameras (via M12, 4-pin inputs)
• Support for 4CH additional PoE IP cameras via RJ45 inputs or via external switch (sold separately)
• GPS tracking coordinate overlay on footage, GPS/GLONASS, includes GPS antenna
• Built-in 4G radio for remote viewing & management (standard size SIM card sold separately)
• Built in 2.4GHz WiFi module for PC web-interface access, includes WiFi antenna
• Storage interface 2 x 2.5'' SATA HDD or SSD and standard SD card slot up to 512GB
• VGA (M16, 10-pin connector),composite (M12, 4-pin) or coaxial (M12, 7-pin) display outputs
• Up to 8 alarm inputs and 1 pulse input, with 1 relay output and 1 controllable output
• Supports HDCVI camera audio inputs as well as 1 external microphone input
• Features RS485, RS232 and CAN auxiliary inputs
• Robust, lockable housing with vibration-dampening design
• Heavy duty M12 video input connectors
• Single DIN size for standardised installation in vehicles

Suggested Products

Suggested product image
12m Cable for MCVR-GPS Recorders and Cameras
MCVR-CABLE12M
Suggested product image
18m Cable for MCVR-GPS Recorders and Cameras
MCVR-CABLE18M
Suggested product image
3m Cable for MCVR-GPS Recorders and Cameras
MCVR-CABLE3M
Suggested product image
6m Cable for MCVR-GPS Recorders and Cameras
MCVR-CABLE6M
Suggested product image
300mm VGA Breakout Cable for MCVR-GPS Recorders
MCVR-VGACABLE3M
Suggested product image
Securview 4 Channel Mobile HDCVI Recorder with GPS, 4G and WiFi
MXVR-GPS4GW
Suggested product image
Crucial BX500 2TB 3D NAND SATA 2.5-inch SSD
SSD2TB2.5
Suggested product image
Mobile Series 1080p Fixed HDCVI Wedge Dome
VSCVI2MPVDIRFTV3
Suggested product image
Mobile Series 1080p Fixed HDCVI Flush Mount Bumper Camera
VSCVIM-2BT
Suggested product image
Mobile Series 1080p Fixed HDCVI Bumper Camera
VSCVIM-2CIR
Suggested product image
Mobile Series 1080p Fixed HDCVI Mini Dome
VSCVIM-2DIR
Suggested product image
Mobile Series 1080p Fixed HDCVI Twin Dash Camera
VSCVIM-2TT

Links and Downloads

MXVR Series Mobile HDCVI DVR Product Datasheet (PDF) 0.79 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded Linux
Video Input
8 channels HDCVI / Analogue (M12, 4-pin), 4 channels IP (RJ45)
Camera Configuration (Coaxial)
8 channels, up to 2.0MP / 1080p resolution
Camera Configuration (Network)
4 channels, up to 2.0MP / 1080p resolution (via 4 x RJ45 input, or via 6-pin ETH2 port cable/switch sold separately)
Display
Video Output
1 x VGA (M16, 10-pin), 1 x Composite (M12, 4-pin), 1 x Coaxial (M12, 7-pin)
Display Resolution
1920 x 1080 to 800 x 600
Display Split
1 / 4 / 8 / 9 / 16
OSD
Channel, time, GPS position, license plate
Recording
Recording Resolution
Main: Up to 1080p (1920 x 1080), Sub: Up to D1 (720 x 576)
Frame Rate
1 ~ 25fps
Video Compression
H.265 / H.264
Playback Sync
1 / 4
Backup Modes
USB Device / Network
Interface
Storage Capacity
2 x 2.5’’ SATA ports for HDD/SSD, 1 x SD card slot, up to 512GB
Alarm Interface
Up to 8 channels local input and 1 channel pulse input, 1 controllable 12V 0.75A output, 1 relay output
Audio Interface
Supports HDCVI audio cameras and 1 external microphone input
USB Interface
2 x USB3.0 (front), 1 x USB2.0 (rear, via extend port)
GPS
GPS/GLONASS Satellite Positioning, 1 x SMA GPS Antenna
Auxiliary Inputs
2 x RS232, 1 x RS485, 1 x CAN
Network
Ethernet
1 x RJ45 port 100/1000M (front), 4 x RJ45 port 100M & 1 x 6-pin ETH2 port (rear)
WiFi
Built-in WiFi module, 1 x 2.4GHz WiFi SMA Antenna
Network Functions
TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server
Max. User Access
128 users
Remote View
iOS (iPhone, iPad); Android devices; PC applications and via web interface
Environmental
Power Supply
6 ~ 36VDC
Power Consumption
<12W (no peripherals)
Operating Conditions
-30 ~ +70°C / 0~90%RH
Dimensions (WxDxH)
180 x 190 x 50mm / 1 DIN (Front Panel 190 x 60mm)
Weight
3.2kg (without HDD)
Warranty (Years)
4
