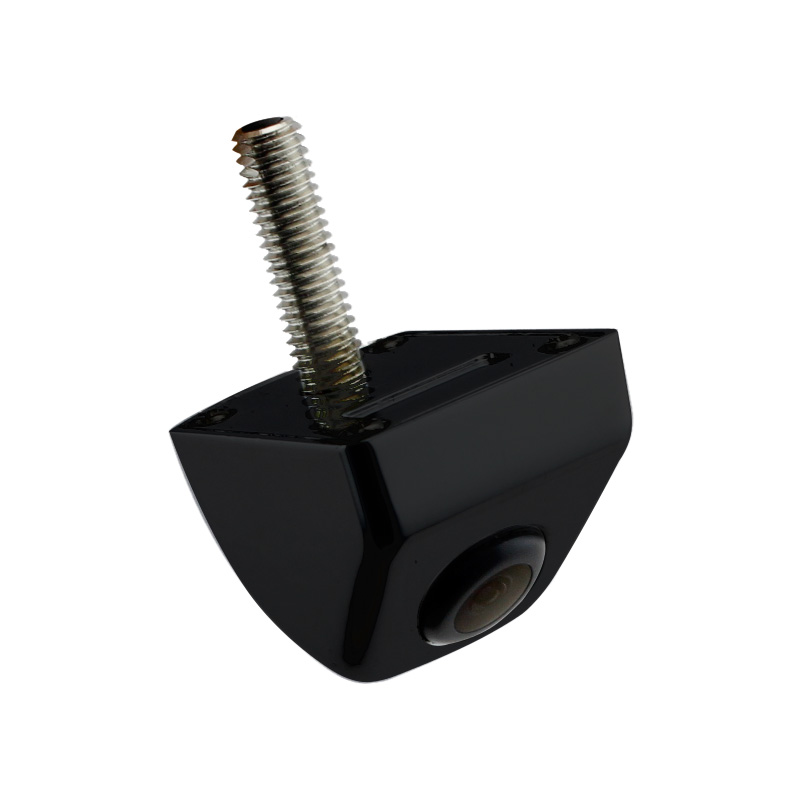

Vehicle Reverse Screw Mount Bullet Camera

Brand logo
SKU MSCAM-S28
Brand logo

Vehicle Reverse Screw Mount Bullet Camera

SKU MSCAM-S28

The RHINO™ MSCAM Series of professional vehicle reverse cameras comprises intuitively designed cameras built for demanding weather environments. Each model features an innovative bracket for optimal installation and some feature infrared LEDs for night vision performance. The series is ideal for every day driving and also large fleets of trucks and buses.

Product features:
• Weather resistant screw mount bullet camera
• 420TVL resolution
• 640(H) x 480(V) effective pixels
• 170° field of view
• Vandal resistant
• 12V power input
• Parking line overlay

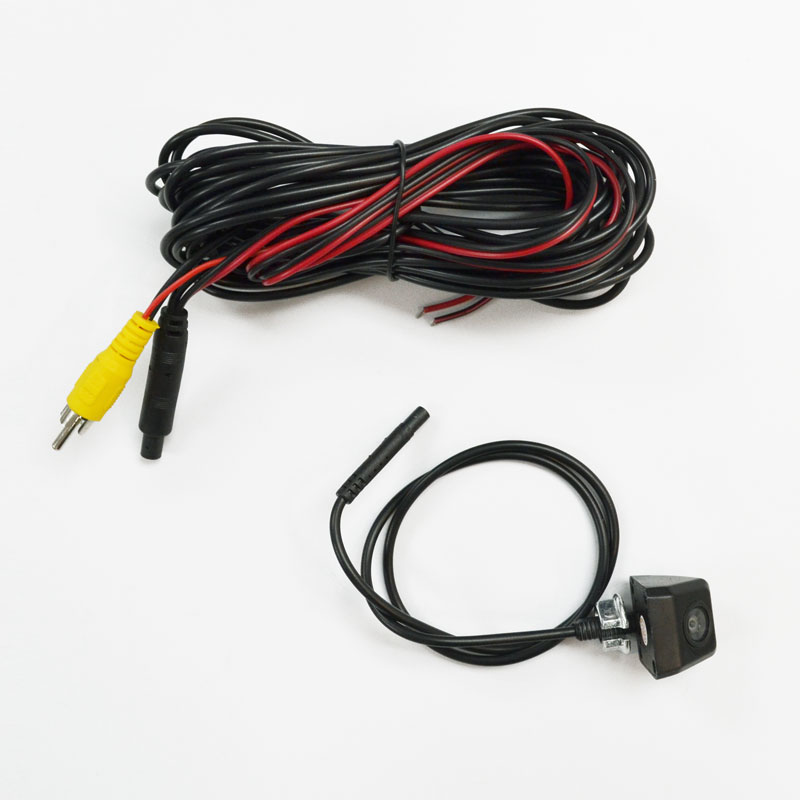

Accessories included:
• 5m video lead

Suggested Products

Suggested product image
Vehicle Reverse Flush Mount Bullet Camera with Bracket
MSCAM-BF18
Suggested product image
Vehicle Reverse Infrared Bullet Camera with Bracket
MSCAM-BI28
Suggested product image
Vehicle Reverse Flush Mount Infrared Bullet Camera
MSCAM-FI18
Suggested product image
4.3’’ TFT Dashboard Flip Monitor for Vehicles
MSMON-4

Links and Downloads

MSCAM Vehicle Camera Series - Product Brochure (PDF) 0.42 MB
MSCAM Vehicle Cameras Series - Installation Manual (PDF) 1.08 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Camera Style
Weather Resistant Bullet
Image Sensor
1/4 CMOS
Effective Pixels
640 (H) x 480 (V)
Mirrored
Yes
Camera
Lens
2.8mm
Minimum Illumination
0.5 Lux
Maximum Infrared Range
5m
Video
Resolution
420TVL
Video Output
1 channel RCA (1.0Vp-p, 75 ohm)
Environment
Ingress Protection
IP67
Vandal Resistant
Yes
Power Input
12V
Power Consumption
< 100mA
Operating Environment
-10° to 50°C / RH95% (max)
Dimensions
30 x 26 x 22mm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
130 mm
Height
72 mm
Depth
80 mm
Weight
0.19 kg
