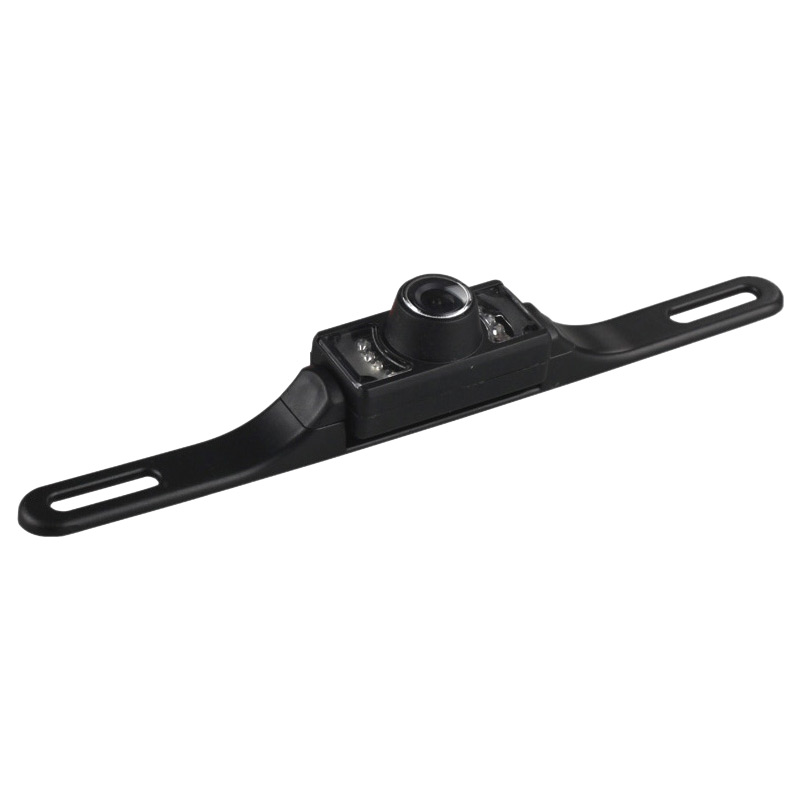

Vehicle Infrared Number Plate Reverse Camera

SKU MSCAM-NPI

Vehicle Infrared Number Plate Reverse Camera

SKU MSCAM-NPI

The RHINO™ MSCAM Series of professional vehicle reverse cameras comprises intuitively designed cameras built for demanding weather environments. Each model features an innovative bracket for optimal installation and some feature infrared LEDs for night vision performance. The series is ideal for every day driving and also large fleets of trucks and buses.

Product features:
• Weather resistant infrared number plate reverse camera
• 420TVL resolution
• 652(H) x 492(V) effective pixels
• 120° field of view
• Vandal resistant
• 12V ~ 24V power input
• Parking line overlay

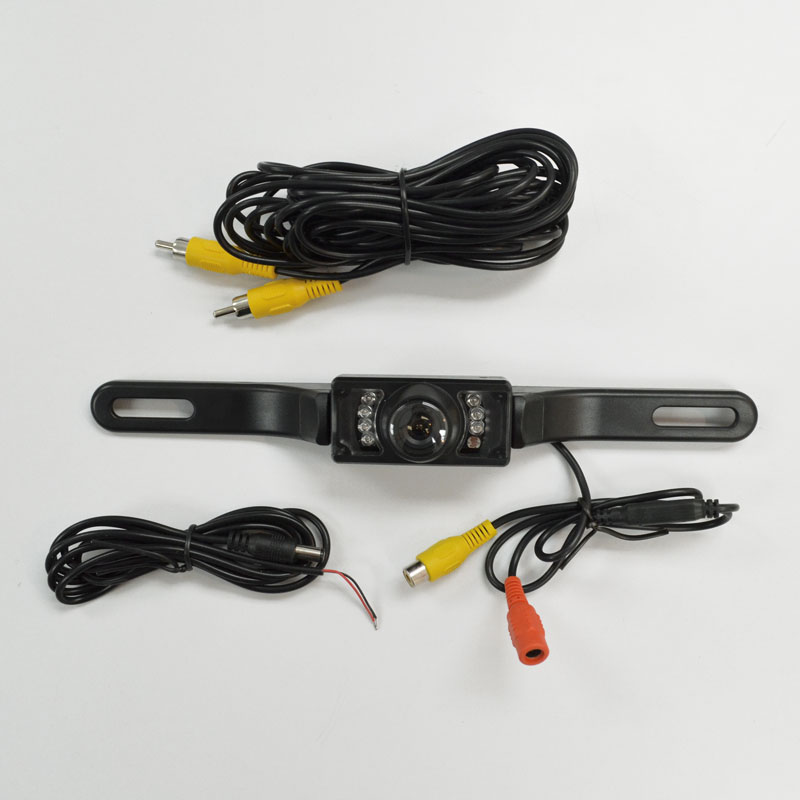

Accessories included:
• DC power supply cable
• 5m video lead

Suggested Products

Vehicle Reverse Flush Mount Infrared Bullet Camera
MSCAM-FI18

4 Sensor Vehicle Reversing/Parking Kit
MSKIT-RV4

Heavy Duty Wireless Reversing Camera / Monitor Kit
MSKIT-WRC

4.3’’ TFT Dashboard Flip Monitor for Vehicles
MSMON-4

Links and Downloads

MSCAM Vehicle Camera Series - Product Brochure (PDF) 0.42 MB

MSCAM Vehicle Cameras Series - Installation Manual (PDF) 1.08 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

General

Camera Style

Weather Resistant Number Plate

Image Sensor

1/4 CMOS

Effective Pixels

652 (H) x 492 (V)

Mirrored

Yes

Camera

Lens

TBA

Minimum Illumination

TBA

Maximum Infrared Range

Video

Resolution

420TVL

Video Output

1 channel RCA (1.0Vp-p, 75 ohm)

Environment

Ingress Protection

IP68

Vandal Resistant

Yes

Power Input

12V ~ 24V

Power Consumption

< 80mA

Operating Environment

-10° to 50°C / RH95% (max)

Dimensions

250 x 30 x 45mm

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

260 mm

Height

50 mm

Depth

80 mm

Weight

0.21 kg
