Vehicle Reverse Flush Mount Infrared Bullet Camera

Brand logo
SKU MSCAM-FI18
Brand logo

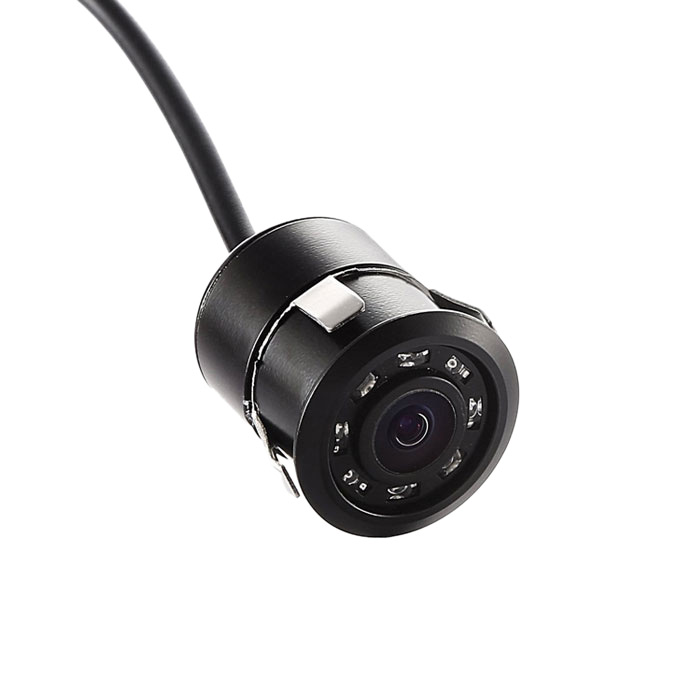

Vehicle Reverse Flush Mount Infrared Bullet Camera

SKU MSCAM-FI18

The RHINO™ MSCAM Series of professional vehicle reverse cameras comprises intuitively designed cameras built for demanding weather environments. Each model features an innovative bracket for optimal installation and some feature infrared LEDs for night vision performance. The series is ideal for every day driving and also large fleets of trucks and buses.

Product features:
• Weather resistant infrared flush mount bullet camera
• 420TVL resolution
• 656(H) x 492(V) effective pixels
• 120° field of view
• Vandal resistant
• 12V ~ 14V power input
• Parking line overlay

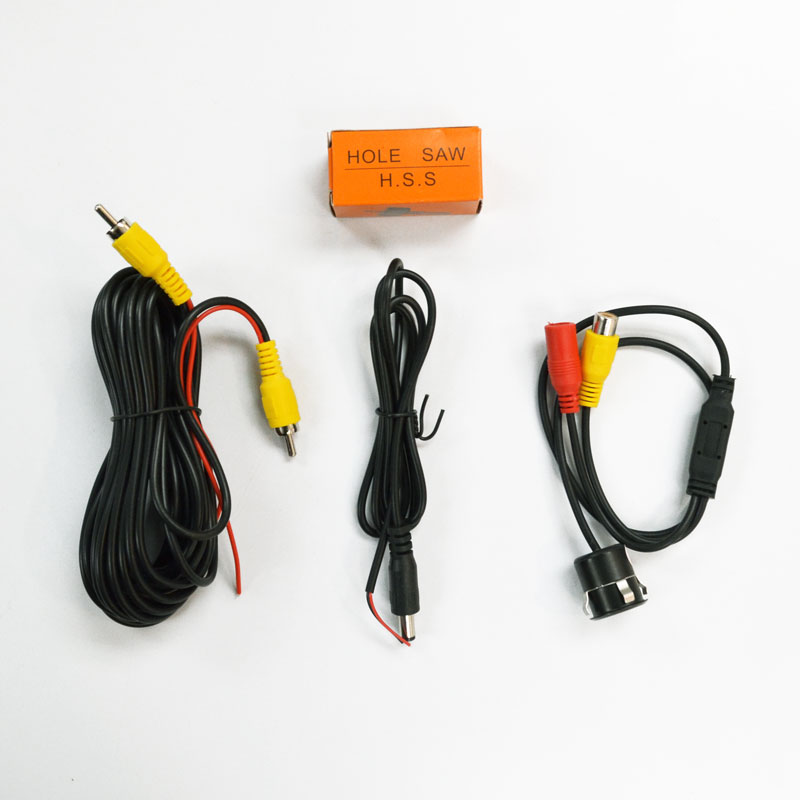

Accessories included:
• DC power supply cable
• 5m video lead
• Hole saw

Suggested Products

Suggested product image
Vehicle Infrared Number Plate Reverse Camera
MSCAM-NPI
Suggested product image
Vehicle Reverse Screw Mount Bullet Camera
MSCAM-S28
Suggested product image
Heavy Duty Vehicle Infrared Reverse Camera
MSCAM-TI
Suggested product image
4.3’’ TFT Dashboard Flip Monitor for Vehicles
MSMON-4

Links and Downloads

MSCAM Vehicle Camera Series - Product Brochure (PDF) 0.42 MB
MSCAM Vehicle Cameras Series - Installation Manual (PDF) 1.08 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Camera Style
Weather Resistant Bullet
Image Sensor
1/4 CMOS
Effective Pixels
656 (H) x 492 (V)
Mirrored
Yes
Camera
Lens
2.8mm
Minimum Illumination
0.1 Lux
Maximum Infrared Range
5m
Video
Resolution
420TVL
Video Output
1 channel RCA (1.0Vp-p, 75 ohm)
Environment
Ingress Protection
IP67
Vandal Resistant
Yes
Power Input
12V-14V
Power Consumption
< 100mA
Operating Environment
-10° to 50°C / RH95% (max)
Dimensions
Ø20 x 22mm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
130 mm
Height
72 mm
Depth
80 mm
Weight
0.17 kg
