Vehicle Reversing Bullet Camera with Bracket

SKU MSCAM-B18

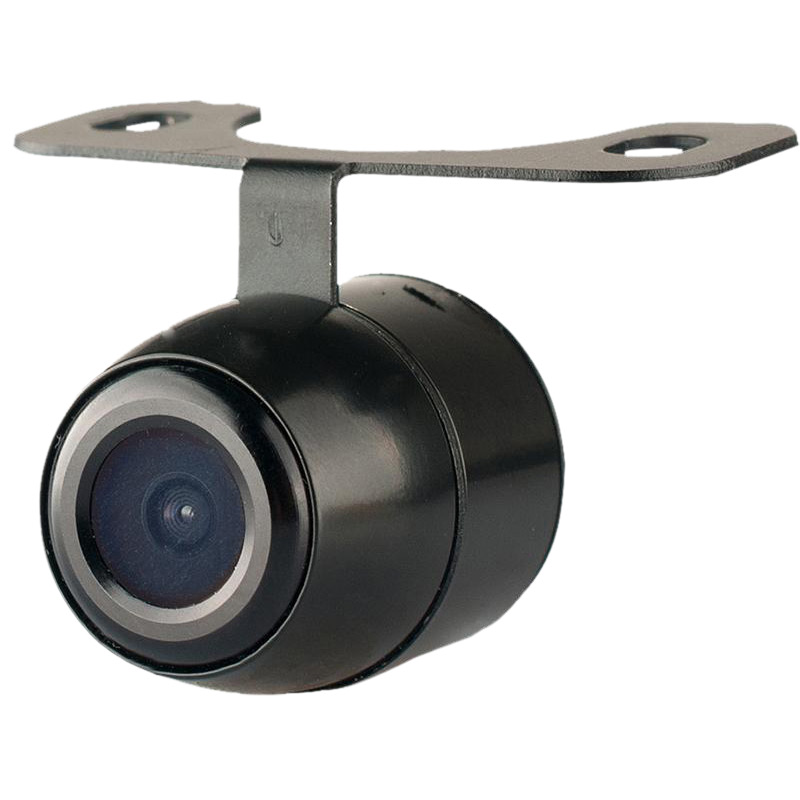

Vehicle Reversing Bullet Camera with Bracket

SKU MSCAM-B18

The RHINO™ MSCAM Series of professional vehicle reverse cameras comprises intuitively designed cameras built for demanding weather environments. Each model features an innovative bracket for optimal installation and some feature infrared LEDs for night vision performance. The series is ideal for every day driving and also large fleets of trucks and buses.

Product features:
• Weather resistant bullet style reversing camera
• 400TVL resolution, 656(H) x 492(V) effective pixels
• 150° field of view
• 12V ~ 14V power input
• Parking line overlay

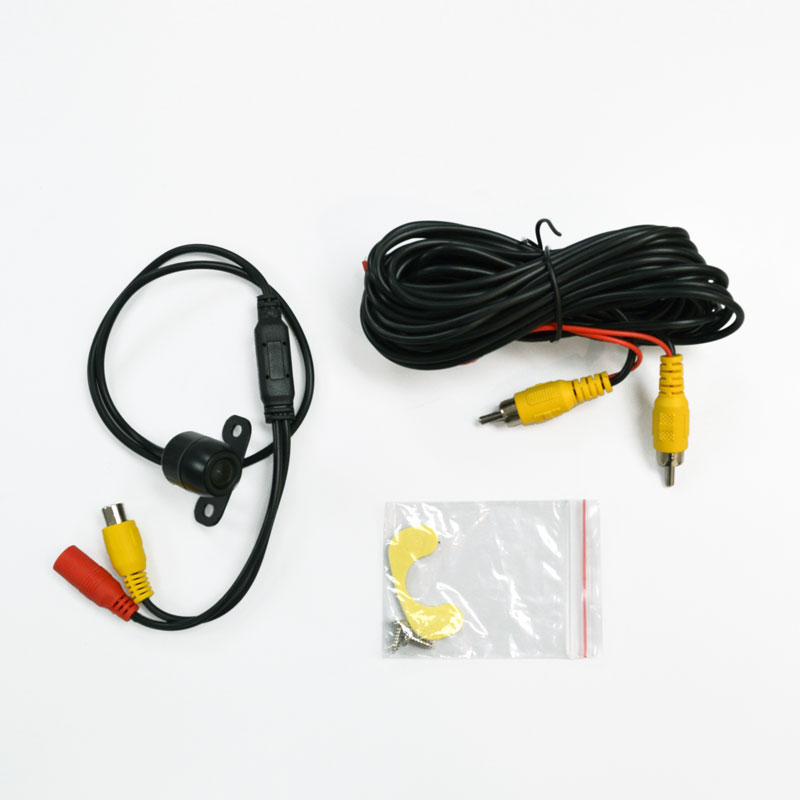

Accessories included:
• 5m video lead
• Mounting kit

Suggested Products

Vehicle Reverse Flush Mount Bullet Camera with Bracket
MSCAM-BF18

Vehicle Reverse Infrared Bullet Camera with Bracket
MSCAM-BI28

Vehicle Infrared Number Plate Reverse Camera
MSCAM-NPI

4.3’’ TFT Dashboard Flip Monitor for Vehicles
MSMON-4

Links and Downloads

MSCAM Vehicle Camera Series - Product Brochure (PDF) 0.42 MB

MSCAM Vehicle Cameras Series - Installation Manual (PDF) 1.08 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

General

Camera Style

Weather Resistant Bullet

Image Sensor

1/3.6”

Effective Pixels

656 (H) x 492 (V)

Mirrored

Yes

Camera

Lens

2.8mm

Minimum Illumination

0.5 Lux

Maximum Infrared Range

Video

Resolution

400TVL

Video Output

1 channel RCA (1.0Vp-p, 75 ohm)

Environment

Ingress Protection

IP67

Vandal Resistant

Yes

Power Input

12V-14V

Power Consumption

< 100mA

Operating Environment

-10° to 50°C / RH95% (max)

Dimensions

28 x 30 x 22mm

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

130 mm

Height

72 mm

Depth

80 mm

Weight

0.16 kg
