Mobile Series 4 Channel NVR with GPS & PoE

Brand logo
SKU MNVR4-GPS
Brand logo

Mobile Series 4 Channel NVR with GPS & PoE

SKU MNVR4-GPS

This product is Coming Soon. Please contact us for more information.

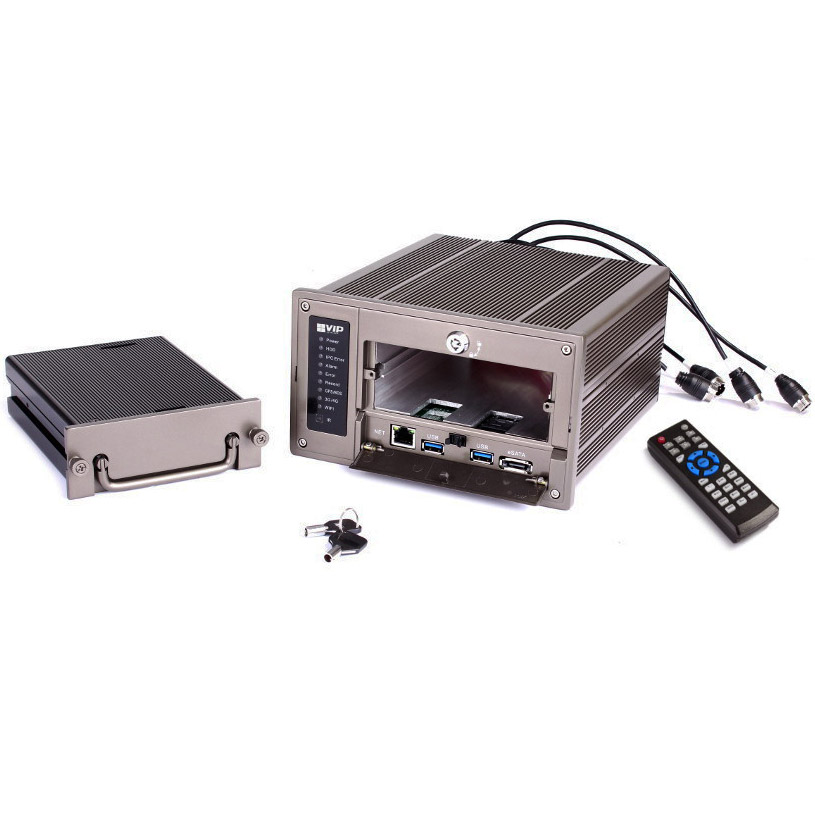

The MNVR4-GPS offers Full HD recording, GPS overlay and Power over Ethernet in a robust chassis. It is ideal for large vehicle surveillance in transportation, public transport and earth moving sectors.

Product features:
• Records up to Full HD 1080p (1920 x 1080)
• Features a built-in high precision GPS module
• Lockable HDD slot for secure footage retrieval
• 2 x 2.5’’ SATA ports for up to 8TB of HDD capacity
• Built-in Power over Ethernet (PoE) switch
• Compatible with 8 ~ 36VDC power vehicles
• Backup via external USB device or local network
• Remote view for iOS, Android & Windows Phone

Suggested Products

Suggested product image
Mobile Series 1080p Fixed HDCVI Bumper Camera
VSCVI2MPCIRAT
Suggested product image
Mobile Series 1080p Fixed HDCVI Mini Dome
VSCVI2MPDIRAT
Suggested product image
Mobile Series 1080p Fixed HDCVI Wedge Dome
VSCVI2MPVDIRFT

Links and Downloads

Mobile NVR Series Quick Start Guide (PDF) 1.78 MB
Mobile Series PoE GPS NVR - Product Brochure (PDF) 0.59 MB
Disk Manager - Recorder HDD Playback Software (Windows V1.0.3.2 22-04-2020) 61.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Input / Output
8 channels input / 2 channels relay output
Auxiliary Inputs
1 x RS232 / 1 x RS485
Backup Modes
USB Device / eSATA Device / Network
Bit Rate
H.264: 48 ~ 8192Kbps
Dimensions / Rack Units
180 x 208 x 100mm / 2 DIN
Display Resolution
Configurable from 1920 x 1080 to 1024 x 768
Display Split
1/4
Ethernet
1 x RJ-45 port (10/100/1000M)
GPS Functions
Built-in high precision GPS module / Overlay: car number, time, position, speed
HDD Modes
Single (no RAID compatibility)
Internal HDD
2 x 2.5’’ SATA ports, up to 8TB / 1 x SD card slot, up to 128GB
Interoperability
ONVIF 2.3 conformant
Main Processor
Dual-core embedded processor
Max. User Access
128 users
Network Functions
HTTP, IPv4, TCP/IP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Filter
Operating Environment
-10 ~ 55°C / 10 ~ 90%RH
Operating System
Embedded Linux
OSD
Camera title, Time, Video loss, Camera lock, Motion detection
Playback Sync
1/4
Power Consumption
< 15W
Power over Ethernet
4 ports (IEEE802.3af)
Power Supply
6 ~ 36VDC
Record Interval
1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
Record Modes
Manual / Schedule (Regular [Continuous], MD, Alarm) / Stop
Recording Rate
200Mbps
Recording Resolution
Configurable from 1080p (1920 x 1080) to D1 (704 x 576)
Remote View
Requires optional 3G/4G module
Search Modes
Time/Date, Alarm, By Motion, Exact search, Smart search
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer
Two-way Talk
1 channel input, 1 channel output (aviation connector), RCA
USB Interface
3 ports: Rear USB2.0 / 2 x Front USB2.0
Video Compression
H.264
Video Detection
Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
Video Input
4 channels
Video Output
1 x HDMI, 1 x VGA, 2 x TV
Weight
3.0kg (without HDD)
Warranty (Years)
4
