Professional 8 Channel Mobile NVR with GPS, 4G & WiFi

Brand logo
SKU MNVR-GPS8GW
Brand logo

Professional 8 Channel Mobile NVR with GPS, 4G & WiFi

SKU MNVR-GPS8GW

Stock may be limited. Please contact us for availability or for an alternative item.

The VIP Vision™ MNVR-GPS8GW is a 8 channel mobile NVR which offers Full HD recording, GPS overlay, Power over Ethernet and 4G remote viewing, all in a robust chassis. It's the ideal vehicle solution for monitoring driver and passenger behaviour, gathering video evidence in the event of an accident, proof of delivery and GPS vehicle tracking.

Product features:
• 8 channel mobile NVR with built-in PoE ports
• Records up to Full HD 1080p (1920 x 1080)
• Combines video footage with GPS tracking overlay
• Lockable HDD & SD card slot for secure footage retrieval
• 2.5" SATA bays up to 8TB, SD storage up to 128GB
• Robust housing; vibration-dampening construction
• Double DIN standard size for all models
• Backup via external USB device or local network
• 4G & WiFi allows for mobile remote viewing from anywhere (SIM not included)

Suggested Products

Suggested product image
Professional 4 Channel Mobile NVR with GPS, 4G & WiFi
MNVR-GPS4GW
Suggested product image
Mobile Series 4.0MP Heavy Duty Vehicle Camera
VSIP4MPEIRAT

Links and Downloads

Mobile NVR Datasheet.pdf 0.81 MB
Mobile NVR Series Datasheet (PDF) 0.65 MB
Mobile NVR Series Installation Manual (PDF) 1.71 MB
Mobile NVR Series Software Tools 63.43 MB
Mobile Vehicle Recorder Reversing Indicator Setup Guide (PDF) 0.98 MB
Smart PSS V2.0 (Mac) 90.05 MB
Mobile NVR Series Quick Start Guide (PDF) 1.78 MB
Mobile NVR User's Manual 5.69 MB
Disk Manager - Recorder HDD Playback Software (Windows V1.0.3.2 22-04-2020) 61.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded Linux
Auxiliary inputs
1 x RS232 / 1 x RS485
Video Input
8 channels
Interoperability
ONVIF 2.3 conformant
Audio
Audio Input/Output
1 channel input, 1 channel output
Two-Way Talk
1 channel input, 1 channel output (aviation connector), RCA
Display
Video Output
1 x HDMI, 1 x VGA, 2 x TV
Display Resolution
Configurable from 1920 x 1080 to 1024 x 768
Display Split
1/4
OSD
Camera title, Time, Video loss, Camera lock, Motion detection
Recording
Maximum Resolution
Configurable from 1080p (1920 x 1080) to D1 (704 x 576)
Recording Rate
200Mbps
Video Compression
H.264
Bit Rate
H.264: 48 ~ 8192Kbps
Record Modes
Manual / Schedule (Regular [Continuous], MD, Alarm) / Stop
Record Interval
1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
Alarm Input/Output
8 channels input / 2 channels relay output
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer
Video Detection
Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
Playback Sync
1/4
Search Modes
Time/Date, Alarm, By Motion, Exact search, Smart search
Backup Modes
USB Device / eSATA Device / Network
Network
Ethernet
1 x RJ-45 port (10/100/1000M)
Power Over Ethernet
8 ports (IEEE802.3af/at)
Network Functions
HTTP, IPv4, TCP/IP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Filter
GPS Functions
Built-in high precision GPS module / Overlay: car number, time, position, speed
Max. User Access
128 users
Remote View
iOS (iPhone, iPad); Android devices, Windows Phone
Storage
Internal HDD
2 x 2.5’’ SATA ports, up to 8TB / 1 x SD card slot, up to 128GB
HDD Modes
Single (no RAID compatibility)
USB Interface
3 ports: 2 x USB3.0 (front), 1 x USB2.0 (rear)
Environmental
Power Supply
6 ~ 36VDC
Power Consumption
< 15W (without HDD)
Operating Environment
-30 ~ +60°C / 0~90%RH
DIN Size
2 DIN

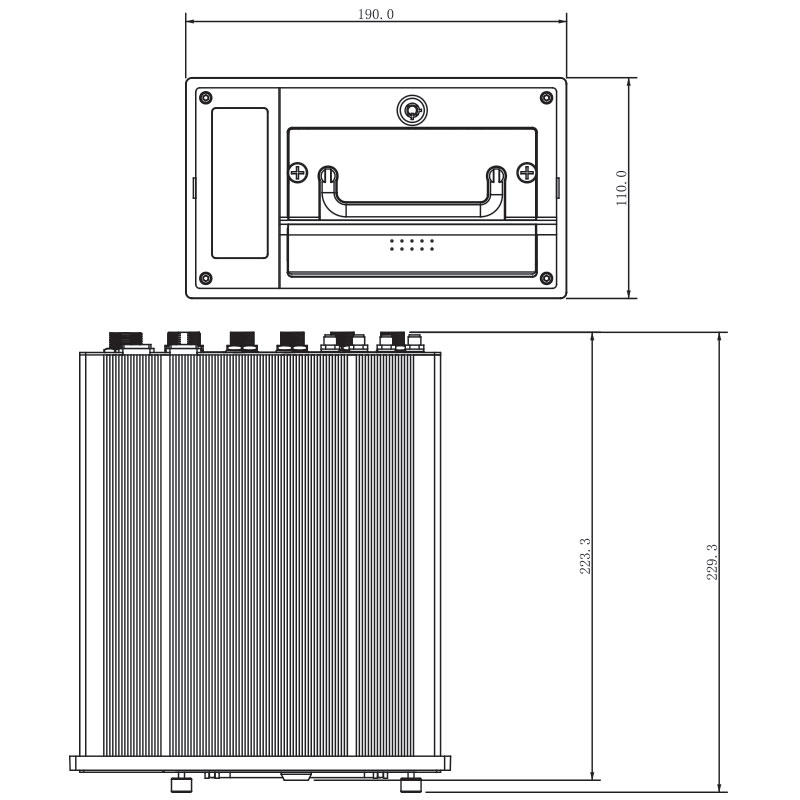

Dimensions
190×229×110mm
Weight
3.0kg (without HDD)
Other
Max. Recording Bandwidth
200Mbps
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
380 mm
Height
330 mm
Depth
110 mm
Weight
4.70 kg
