Professional 4 Channel Mobile NVR with GPS, 4G & WiFi

Brand logo
SKU MNVR-GPS4GW2
Brand logo

Professional 4 Channel Mobile NVR with GPS, 4G & WiFi

SKU MNVR-GPS4GW2

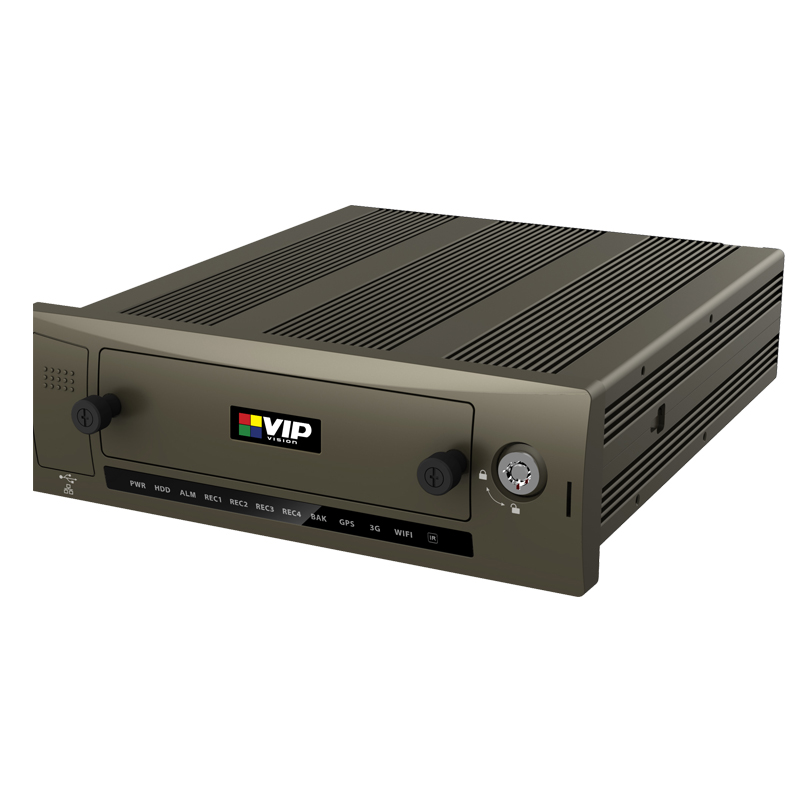

The MNVR-GPS4GW2 is a 4 channel mobile NVR with 1080p recording, high precision GPS for vehicle tracking and remote view via 4G, all in a robust, lockable case. Perform essential functions such as monitoring driver and passenger behaviour, gathering video evidence in the event of an accident, proof of delivery and GPS vehicle tracking.

Product features:
• Records 4 channels at 2.0MP, up to 200Mbps incoming bandwidth
• Combines video footage with GPS tracking overlay
• Ideal for public transport, cash transit, shipping, etc.
• 1 x 2.5'' SATA HDD bay & SD card slot up to 2TB
• Audio, alarm, RS485 and RS232 inputs
• Robust housing; vibration-dampening construction
• Heavy duty M12 video input connectors
• Single DIN standard size
• 4G & WiFi allows for mobile remote viewing from anywhere (SIM not included)

Suggested Products

Suggested product image
2TB Mobile Hard Disk Drive (2.5'')
HD2TBSV2.5
Suggested product image
10" Rhino 1920 x 1200 LCD Monitor
LCD10FHD
Suggested product image
Crucial BX500 2TB 3D NAND SATA 2.5-inch SSD
SSD2TB2.5

Links and Downloads

Mobile NVR Datasheet.pdf 0.81 MB
MDVR Dock Manager 50.81 MB
Smart PSS V2.0.1 (Windows) 88.17 MB
Smart PSS V2.0 (Mac) 90.05 MB
Disk Manager - Recorder HDD Playback Software (Windows V1.0.3.2 22-04-2020) 61.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Dual-core Embedded Processor
Operating System
Embedded LINUX
Video Input
4 channel BNC
PoE
8 ports (IEEE802.3af/at)
HDD Capacity
Two-way Talk
1 Channel Mic in, 1 Channel Mic out
Interoperability
ONVIF 2.3 conformant
Display
Video Output
1 x HDMI, 1 x VGA, 2 x TV
Display Resolution
Configurable from 1920 x 1080 to 1024 x 768
Display Split
1/4
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution
Configurable from 1080p (1920 x 1080) to D1 (704 x 576)
Incoming Bandwidth
200Mbps
Decoding Capacity
Video Compression
H.265/H.264
Bit Rate
48~8192Kb/s
Record Modes
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Features
Alarm Input / Output
6 channel
Trigger Events
Recording, PTZ, Tour, Alarm out, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback Sync
1 / 4
Search Modes
Time/Date, Alarm, Motion Detection & Exact search (accurate to second), Smart search
Backup Modes
USB Device/Network/Internal HDD
Network
Ethernet
1 RJ-45 Port (10/100 Mbps)
Power over Ethernet
4 ports (IEEE802.3af/at)
Network Functions
TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server
Optical Interface
N/A
Max. User Access
128 users
Remote View
iPhone, iPad, Android, Windows Phone
Storage
Internal HDD
1x SATA ports, max.2TB
HDD Modes
Single (no RAID compatibility)
USB Interface
2 ports: 2x USB2.0
Auxiliary Inputs
1 x RS485 port (for PTZ)
Environment
Power Supply
6~36VDC
Power Consumption
<15W
Operating Environment
-35°C (heater optional)~+60°C / 10%~95%RH / 86~106kpa
Rackmountable
Rackmount Units
Dimensions
Weight
3kg (without HDD)
Other
Dimensions / Rack Units
190 x 210 x 60mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
400 mm
Height
350 mm
Depth
100 mm
Weight
5.00 kg
