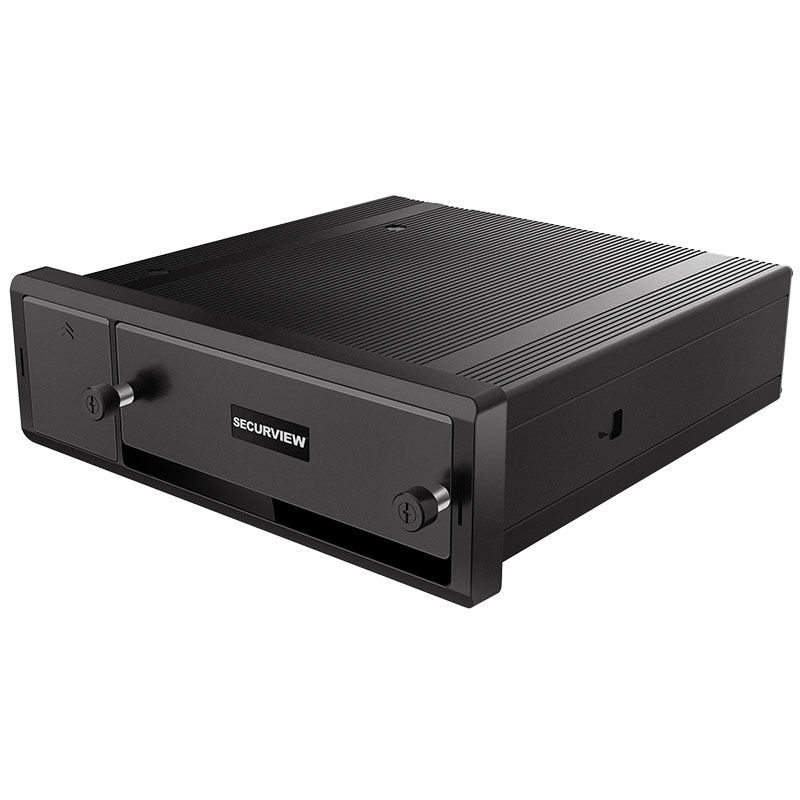

Securview 8 Channel Mobile HDCVI DVR with GPS, 4G & WiFi

SKU MCVR-GPS8GW

Securview 8 Channel Mobile HDCVI DVR with GPS, 4G & WiFi

SKU MCVR-GPS8GW

Stock may be limited. Please contact us for availability or for an alternative item.

The MCVR-GPS8GW is an 8 channel mobile HDCVI DVR with Full HD 1080p recording, high precision GPS for vehicle tracking and remote view via 4G, all in a robust, lockable case. Perform essential functions such as monitoring driver and passenger behaviour, gathering video evidence in the event of an accident, proof of delivery and GPS vehicle tracking.

Product features:
• Records 8 channels up to Full HD 1080p (1920 x 1080p) at 25fps
• Combines video footage with GPS tracking overlay
• Ideal for public transport, cash transit, shipping, etc.
• 2 x 2.5'' SATA HDD bay & SD card slot up to 128GB
• Audio, alarm, RS485 and RS232 inputs
• Robust housing; vibration-dampening construction
• Heavy duty M12 video input connectors
• Single DIN standard size
• 4G & WiFi allows for mobile remote viewing from anywhere (SIM not included)

Suggested Products

2TB Mobile Hard Disk Drive (2.5'')
HD2TBSV2.5

12m Cable for MCVR-GPS Recorders and Cameras
MCVR-CABLE12M

18m Cable for MCVR-GPS Recorders and Cameras
MCVR-CABLE18M

3m Cable for MCVR-GPS Recorders and Cameras
MCVR-CABLE3M

6m Cable for MCVR-GPS Recorders and Cameras
MCVR-CABLE6M

Securview 4 Channel Mobile HDCVI Recorder with GPS
MCVR-GPS

300mm VGA Breakout Cable for MCVR-GPS Recorders
MCVR-VGACABLE3M

Mobile Series 1080p Fixed HDCVI Flush Mount Bumper Camera
VSCVIM-2BT

Mobile Series 1080p Fixed HDCVI Bumper Camera
VSCVIM-2CIR

Mobile Series 1080p Fixed HDCVI Mini Dome
VSCVIM-2DIR

Mobile Series 1080p Fixed HDCVI Twin Dash Camera
VSCVIM-2TT

Links and Downloads

Mobile DVR Series Datasheet (PDF) 0.93 MB

Mobile DVR Series Installation Manual (PDF) 1.52 MB

Mobile Vehicle Recorder Reversing Indicator Setup Guide (PDF) 0.98 MB

Mobile DVR Series Software Tools 30.62 MB

Mobile DVR Series User's Manual (PDF) 3.09 MB

Firmware Update MCVR-GPS8GW-27/06/2019 18.65 MB

Disk Manager - Recorder HDD Playback Software (Windows V1.0.3.2 22-04-2020) 61.46 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

General

Main Processor

Embedded Processor

Operating System

Embedded Linux

Auxiliary inputs

1 x RS232 / 1 x RS485

Video Input

8 channel HDCVI / Analogue

Camera Configurations

8 channels up to 1080p/25fps (HDCVI), 8 channels up to 960H/25fps (analogue)

Audio

Audio Input/Output

4 channels input / 1 channel output

Two-Way Talk

Reuse channel 1 audio input/output

Display

Video Output

1 x VGA (cable sold separately) / 2 x TV

Display Resolution

1920 x 1080 to 800 x 600

Display Split

1 / 4 / 8 / 9

OSD

Camera title, time, video loss, camera lock, motion detection, recording

Recording

Maximum Resolution

1080p (1920 x 1080) / 720p (1280 x 720)

Frame Rate (Main)

1080p (1~25fps)

Frame Rate (Sub)

960H (1~6fps) / CIF (1~25fps)

Frame Rate (Third)

N/A

Video Compression

H.264 / G.711

Bit Rate

48~8192Kbps

Record Modes

Manual / Schedule (Regular, Continuous), Motion Detection, Alarm, Stop

Record Interval

1~120 min (default: 60 min) / Pre: 1~30s / Post: 10~300s

Alarm Input/Output

7 channels input / 2 channels output

Trigger Events

Recording; PTZ; tour; alarm; email notification; FTP upload; internal buzzer; and screen tip overlay

Video Detection

MD zones: 396 (22 × 18) / Video loss / Camera blank

Playback Sync

1/4

Search Modes

Time/Date; Alarm; Motion detection; Exact search

Backup Modes

USB Device / Network

Network

Ethernet

1x RJ-45 port (10/100/1000M)

GPS

Built-in highly accurate GPS module / Overlay: car number, time, position, speed

Network Functions

TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server

Max. User Access

128 users

Remote View

iOS (iPhone, iPad); Android devices, Windows Phone (Requires optional 3G/4G module)

Storage

Internal HDD

2 x 2.5’’ SATA ports / 1 x SD card slot, up to 128GB

USB Interface

3 ports: 2 x USB3.0 (front), 1 x USB2.0 (rear)

Environmental

Power Supply

6 ~ 36VDC

Power Consumption

<12W (without HDD)

Operating Environment

-30 ~ +60°C / 0~90%RH

DIN Size

Single DIN

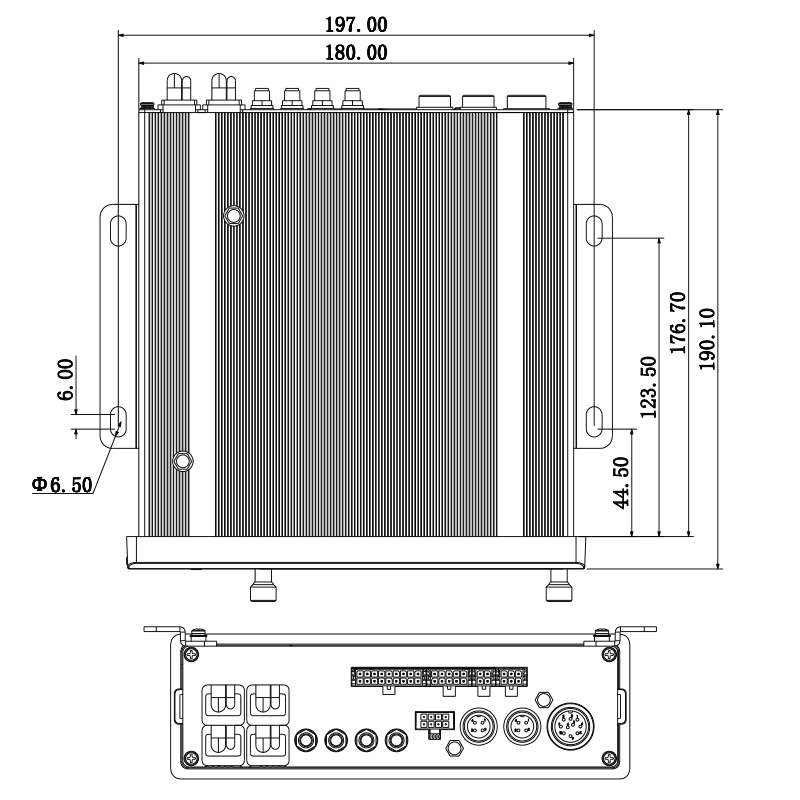

Dimensions

180mm x 190mm x 50mm

Weight

2.2kg (without HDD)

Other

Max. Recording Bandwidth

64Mbps

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

290 mm

Height

308 mm

Depth

123 mm

Weight

3.10 kg
