Outdoor Surface Mount Magnetic Lock - Lock Sensor

SKU MAGLOC200S

Outdoor Surface Mount Magnetic Lock - Lock Sensor

SKU MAGLOC200S

The Watchguard™ MAGLOC Series comprises affordable access solutions, with a wide range of electromagnetic locks and accessories to safely and securely control access in your home or business.

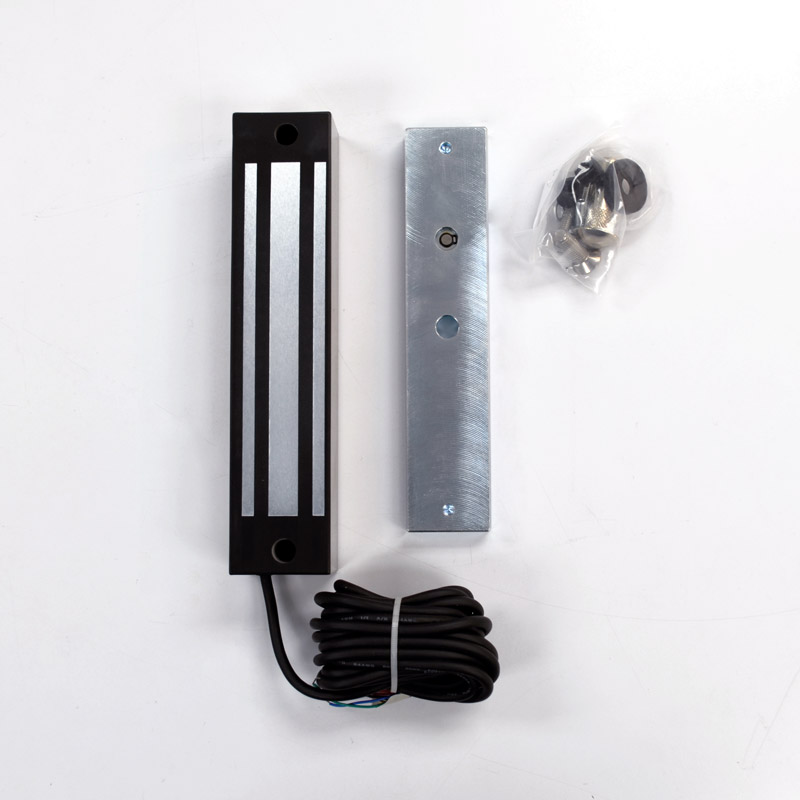

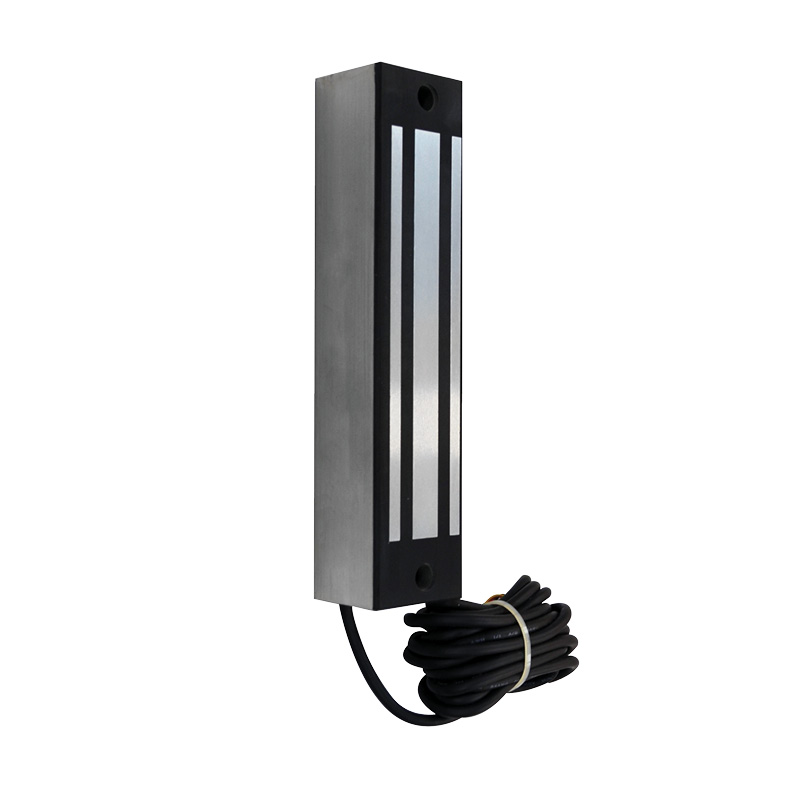

The MAGLOC200S is a surface mounted electromagnetic gate lock, designed for outdoor use. This model includes the electromagnetic lock, armature plate and mounting component kit.

• Surface mount design
• 270kg approximate holding force
• Stainless steel construction with zinc finish
• Lock status sensor for lock monitoring
• 12V/24VDC selectable power input
• Overvoltage/voltage spike protection
• Sealed casing for outdoor use
• 3m long power cable

Links and Downloads

MAGLOC Series - Product Datasheet (PDF) 2.99 MB

MAGLOC200S User Manual .pdf 0.13 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

General

Type

Surface Mount

Holding Force

270kg

Door Status Sensor

No

Lock Status Sensor

Yes

Timer

No

Lock Configuration

Fail Safe

Environmental

Weather Rating

Indoors / Outdoors

Construction

Stainless Steel with Zinc Finish

Power Input

12VDC / 24VDC (selectable)

Current Draw

500mA@12V / 250mA@24V

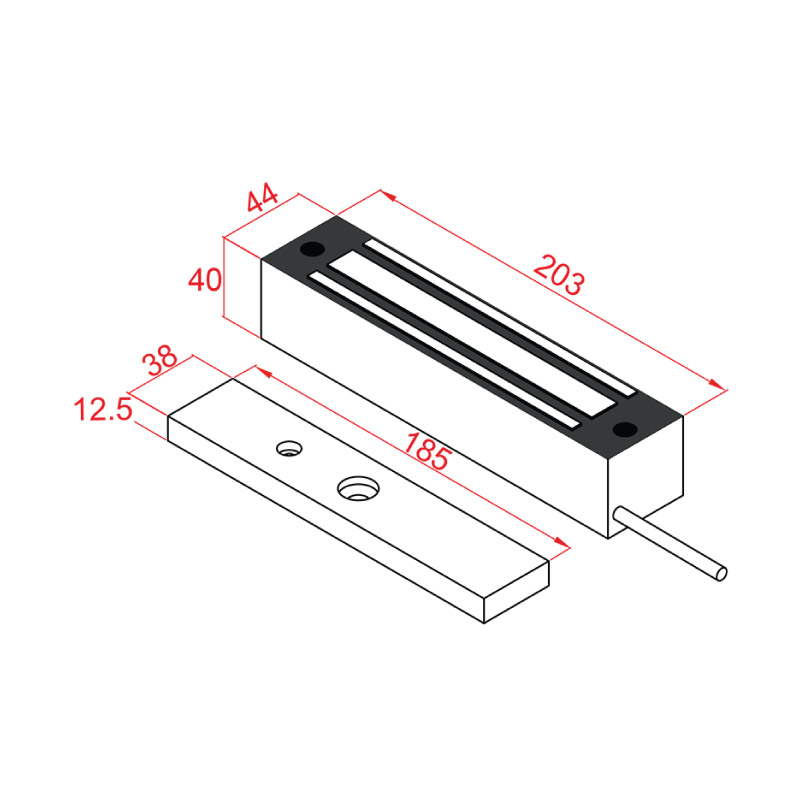

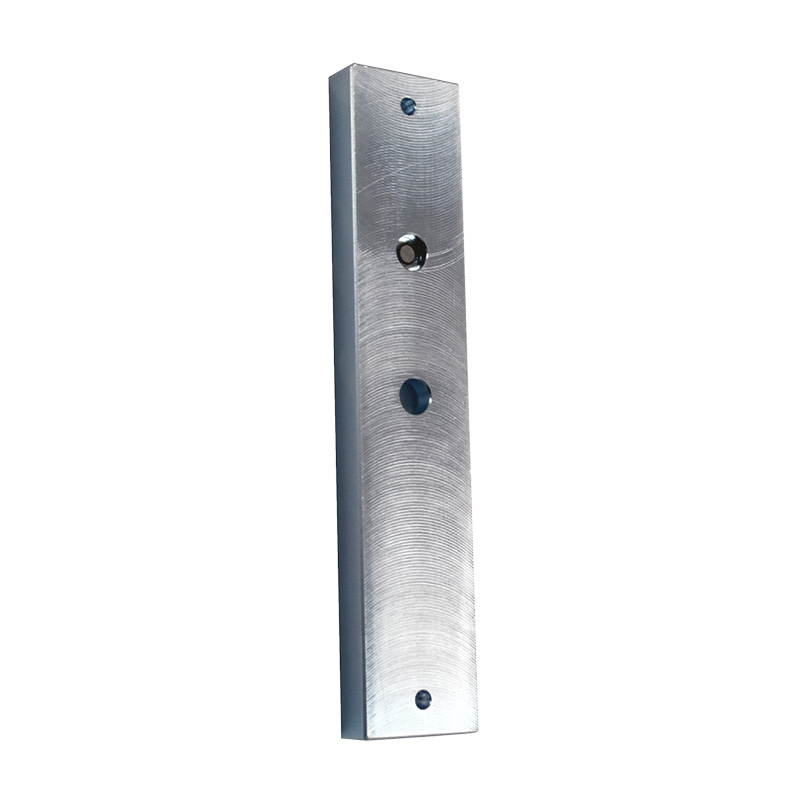

Armature Dimensions

185 x 38 x 12.5mm

Lock Dimensions

203 x 40 x 44mm

Warranty (Years)

1

Shipping Weight and Dimensions

Includes product packaging

Width

100 mm

Height

50 mm

Depth

290 mm

Weight

3.00 kg
