Outdoor Side Mount Magnetic Lock - Lock Sensor

Brand logo
SKU MAGLOC200G
Brand logo

Outdoor Side Mount Magnetic Lock - Lock Sensor

SKU MAGLOC200G

The Watchguard™ MAGLOC Series comprises affordable access solutions, with a wide range of electromagnetic locks and accessories to safely and securely control access in your home or business.

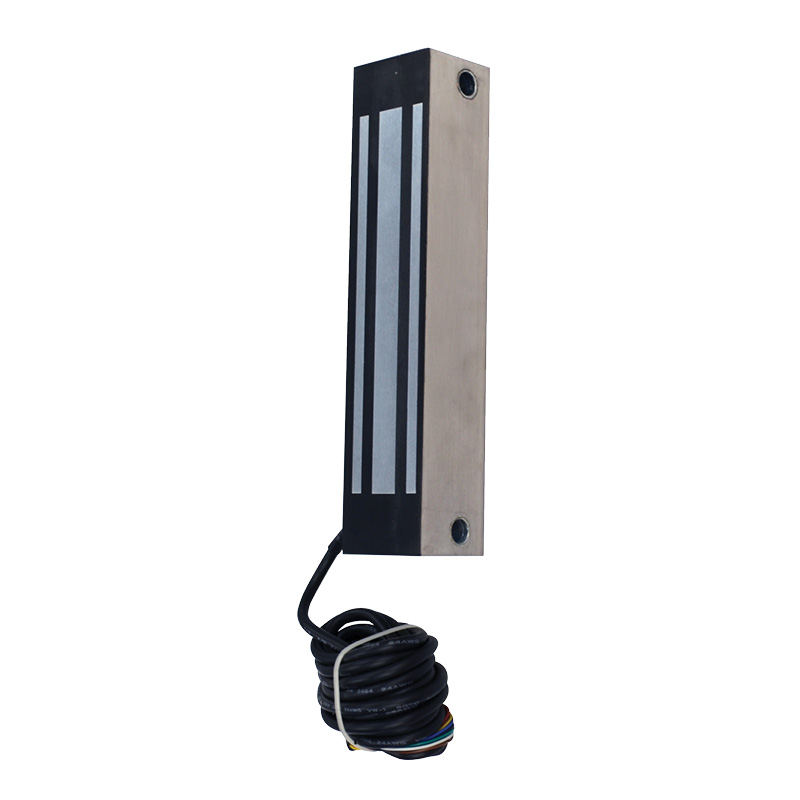

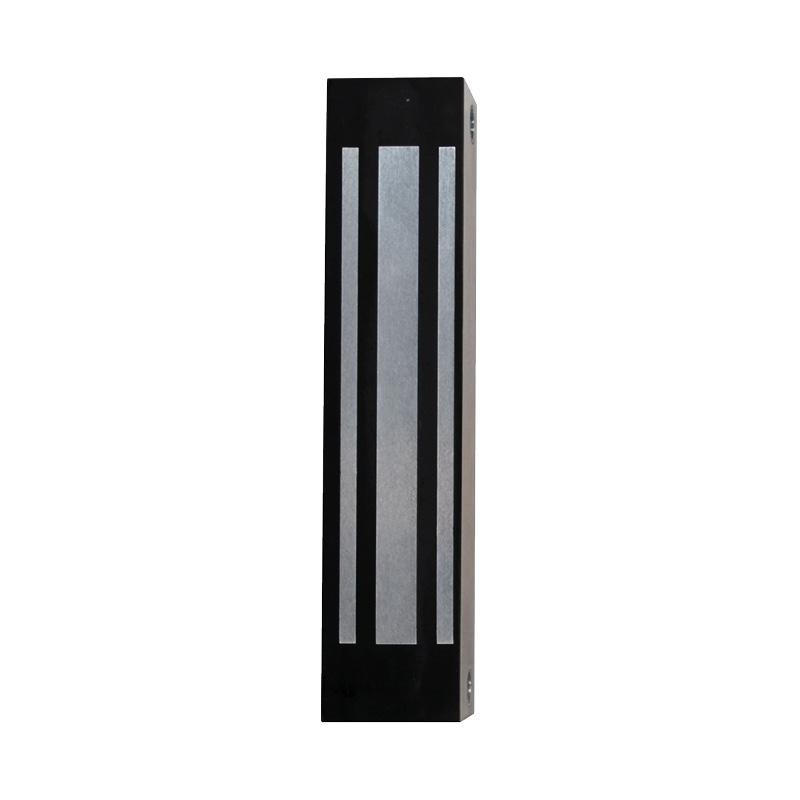

The MAGLOC200G is a side mounted electromagnetic gate lock, designed for outdoor use. This model includes the electromagnetic lock, armature plate and mounting component kit.

• Side mount design, can be vertically mounted
• 270kg approximate holding force
• Stainless steel construction with zinc finish
• Lock status sensor for lock monitoring
• 12V/24VDC selectable power input
• Overvoltage/voltage spike protection
• Sealed casing for outdoor use
• 3m long power cable

Links and Downloads

MAGLOC Series - Product Datasheet (PDF) 2.99 MB
MAGLOC200G User Manual (PDF) 0.13 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Type
Side Mount
Holding Force
270kg
Door Status Sensor
No
Lock Status Sensor
Yes
Timer
No
Lock Configuration
Fail Safe
Environmental
Weather Rating
Indoors / Outdoors
Construction
Stainless Steel with Zinc Finish
Power Input
12VDC / 24VDC (selectable)
Current Draw
500mA@12V / 250mA@24V

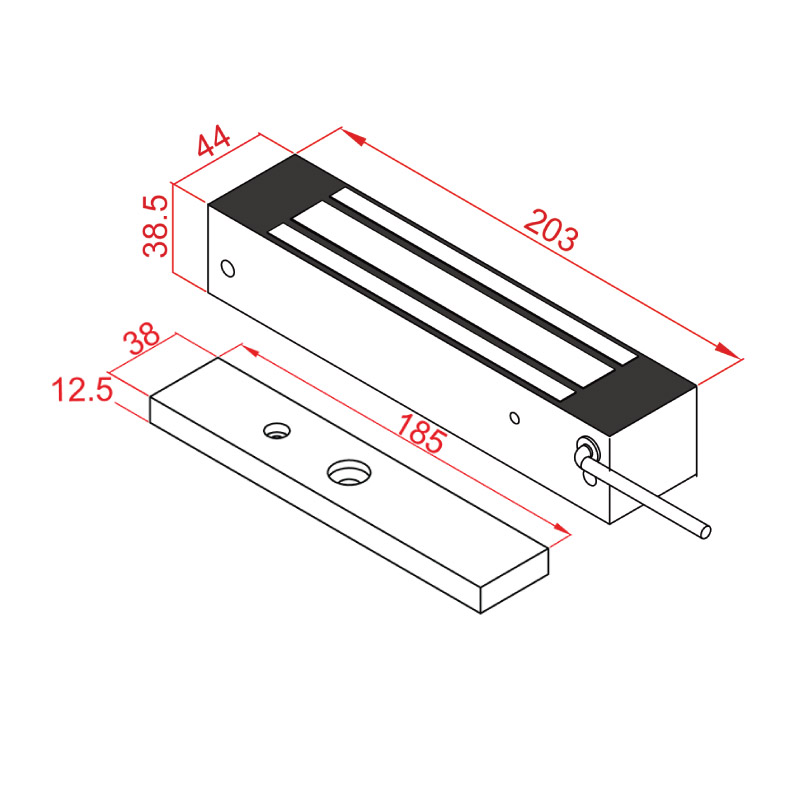

Armature Dimensions
185 x 38 x 12.5mm
Lock Dimensions
203 x 38.5 x 44mm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
100 mm
Height
50 mm
Depth
290 mm
Weight
3.00 kg
