Surface Mount Magnetic Lock

Brand logo
SKU MAGLOC100S
Brand logo

Surface Mount Magnetic Lock

SKU MAGLOC100S

The Watchguard™ MAGLOC Series comprises affordable access solutions, with a wide range of electromagnetic locks and accessories to safely and securely control access in your home or business.

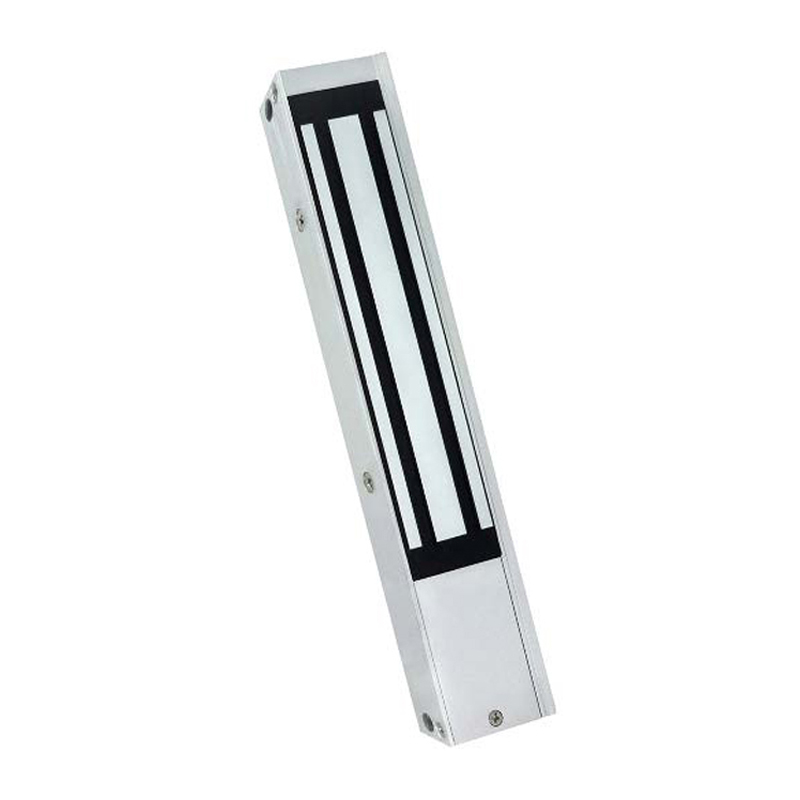

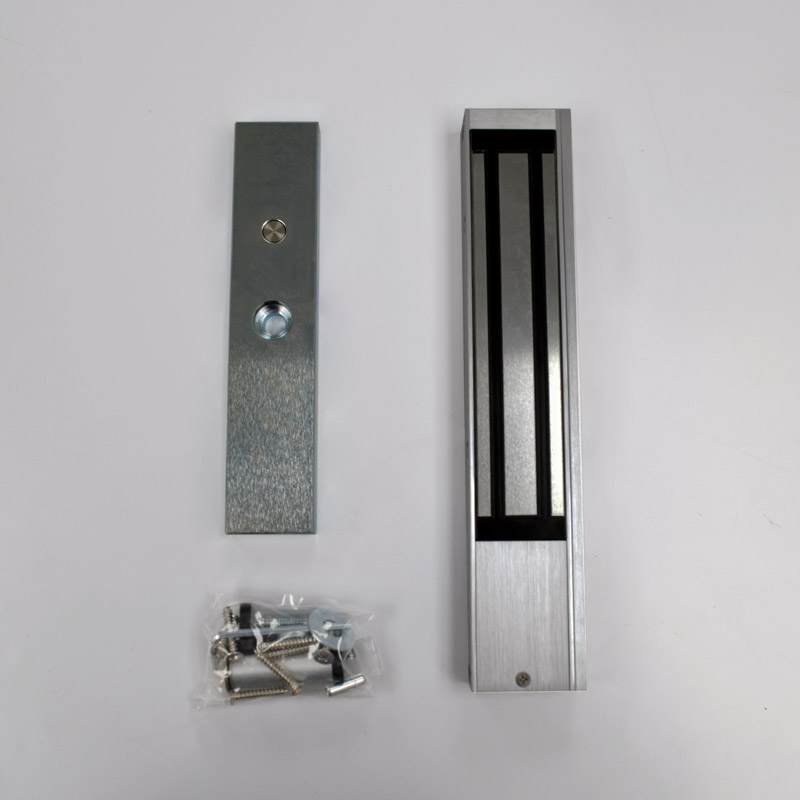

The MAGLOC100S is a surface mounted electromagnetic door lock, designed for indoor use. This model includes the electromagnetic lock, armature plate and mounting component kit.

Product features:
• Surface mount design
• 270kg approximate holding force
• Anodised aluminium face plate with zinc finish
• 12V/24VDC selectable power input
• Overvoltage/voltage spike protection

Suggested Products

Suggested product image
L & Z Brackets for MAGLOC100
MAGLOC-LZ100
Suggested product image
Mortise Mount Magnetic Lock
MAGLOC100M

Links and Downloads

MAGLOC Series - Product Datasheet (PDF) 2.99 MB
MAGLOC100S User Manual (PDF) 0.55 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Type
Surface Mount
Holding Force
270kg
Door Status Sensor
No
Lock Status Sensor
No
Timer
No
Lock Configuration
Fail Safe
Environmental
Weather Rating
Indoor Only
Construction
Anodised Aluminium with Zinc Finish
Power Input
12VDC / 24VDC (selectable)
Current Draw
500mA@12V / 250mA@24V

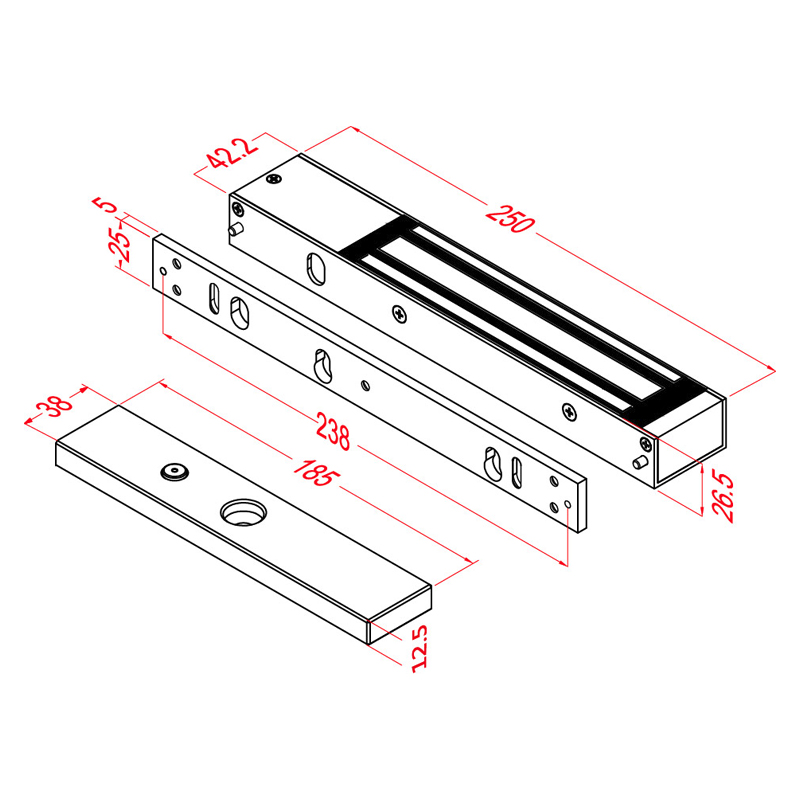

Armature Dimensions
185 x 38 x 12.5mm
Lock Dimensions
250 x 47.2 x 26.5mm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
250 mm
Height
60 mm
Depth
27 mm
Weight
4.70 kg
