Surface Mount Magnetic Lock - Door & Lock Monitored with Timer

SKU MAGLOC100S-DST

The Watchguard™ MAGLOC Series comprises affordable access solutions, with a wide range of electromagnetic locks and accessories to safely and securely control access in your home or business.

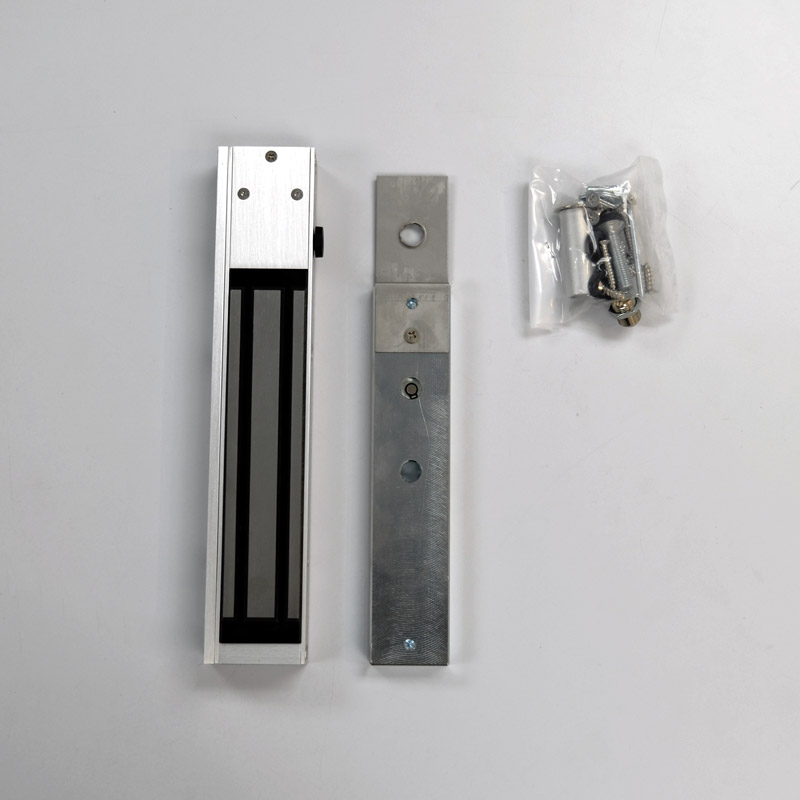

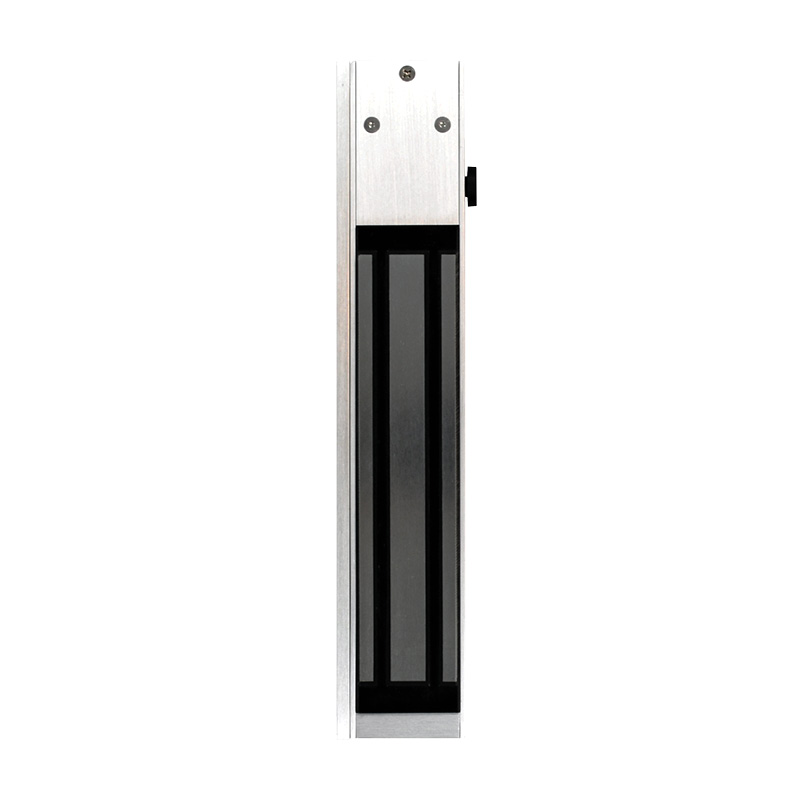

The MAGLOC100S-DST is a surface mounted electromagnetic door lock, designed for indoor use. It is the optimal choice for alarm integration with lock/door status sensors and a configurable timer (1~90s). This model includes the electromagnetic lock, armature plate and mounting component kit.

Product features:
• Surface mount design
• 270kg approximate holding force
• Anodised aluminium face plate with zinc finish
• Lock and door status sensors
• Configurable delay timer 1~90s
• 12V/24VDC selectable power input
• Overvoltage/voltage spike protection

Links and Downloads

MAGLOC Series - Product Datasheet (PDF) 2.99 MB
MAGLOC100S-DST User Manual (PDF) 0.60 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Type
Surface Mount
Holding Force
270kg
Door Status Sensor
Yes
Lock Status Sensor
Yes
Timer
Yes (1~90s)
Lock Configuration
Fail Safe
Environmental
Weather Rating
Indoor Only
Construction
Anodised Aluminium with Zinc Finish
Power Input
12VDC / 24VDC (selectable)
Current Draw
500mA@12V / 250mA@24V

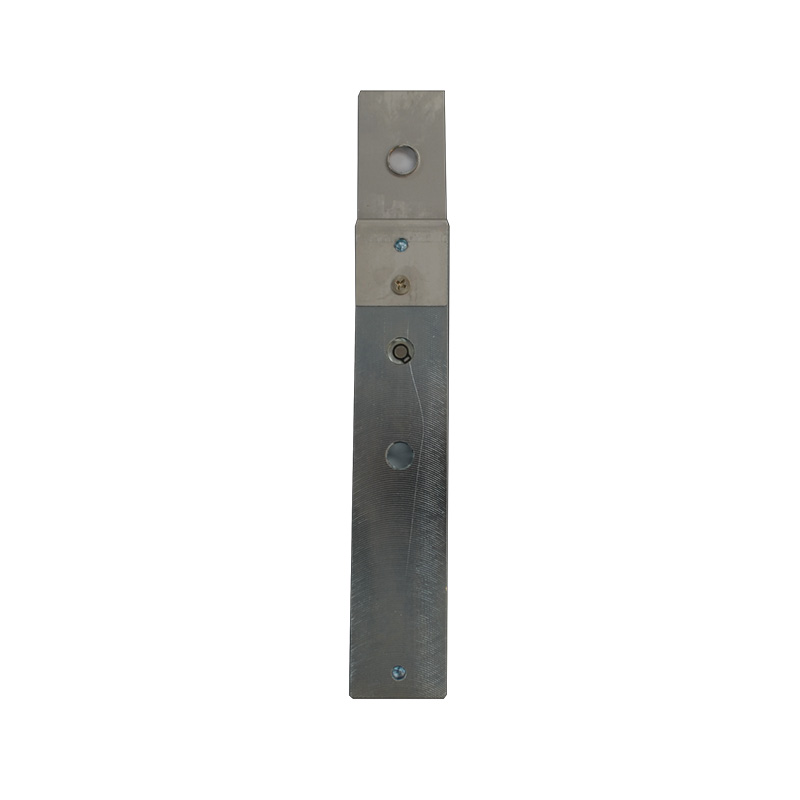

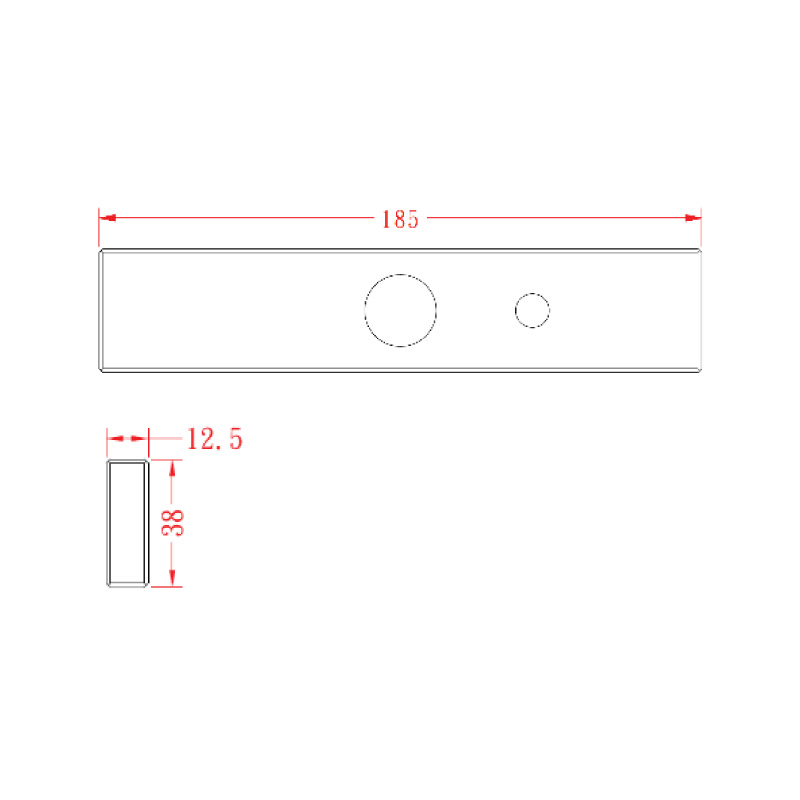

Armature Dimensions
185 x 38 x 12.5mm

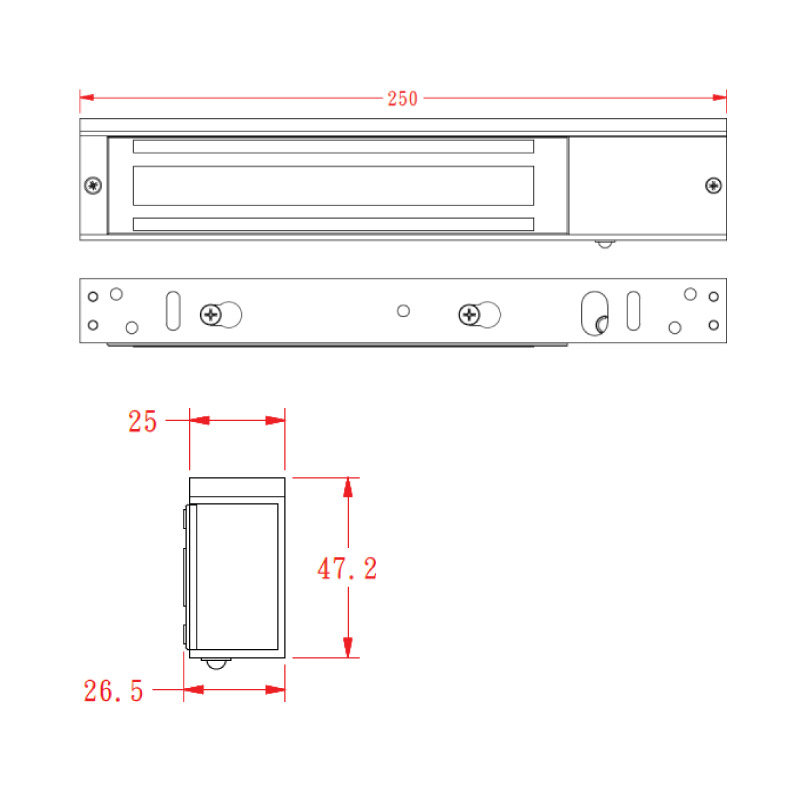

Lock Dimensions
250 x 47.2 x 26.5mm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
85 mm
Height
190 mm
Depth
145 mm
Weight
2.20 kg
