AVOL 100W Driver-on-Board LED Street Light

Brand logo
SKU LSL-C100-C
Brand logo

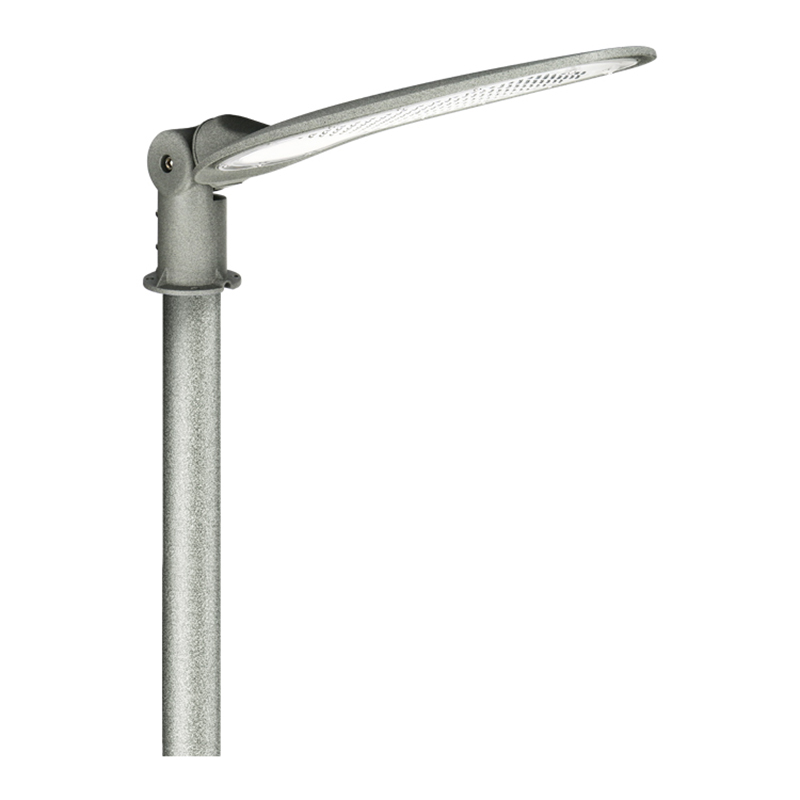

AVOL 100W Driver-on-Board LED Street Light

SKU LSL-C100-C

The AVOL LSL-C Series comprises versatile LED lights that deliver high performance street and area lighting. Fitted with driver-on-board technology, these luminaires offer impressive lighting in a compact, weather resistant aluminium chassis.

LSL-C Series lights feature a 180° adjustable pole mount and can be fitted to vertical or angled fittings. They are ideal for illumination in street lighting applications, in area lighting for public spaces and for general purpose lighting in a variety of commercial and industrial building environments.

Product features:
• 100W LED flood light with 11000lm light output
• High 110lm/W luminous efficacy for energy efficiency
• 6000K cool white colour temperature
• 90° x 130° beam angle
• Driver-on-board technology for compact size & affordability
• Slimline, aluminium, IP65 weather rated enclosure
• Adjustable base with 180° of vertical rotation
• Ø62.1mm pole slip fit installation

* Pole not included

Suggested Products

Suggested product image
AVOL 150W Driver-on-Board LED Street Light
LSL-C150-C
Suggested product image
AVOL 200W Driver-on-Board LED Street Light
LSL-C200-C
Suggested product image
AVOL 50W Driver-on-Board LED Street Light
LSL-C50-C

Links and Downloads

AVOL LSL-C Series Street Lights Datasheet (PDF) 0.32 MB
LSL-C Series LED Street Lights Installation Guide (PDF) 1.91 MB
LSL-C100-C - IES File for Lighting Simulation 0.06 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Optical
Light Output
11000lm
Luminous Efficacy
110lm/W
Colour Temperature
6000K
Colour Rendering Index
> 80
Beam Angle
90° x 130°
Light Decay
N/A
Rated Lifespan
35,000 hours
Electrical
Power Consumption
100W
Input Voltage
100 ~ 277VAC
Power Factor
> 0.9
Dimmable
N/A
Motion Activated
N/A
General
Ingress Protection
IP65
Plug / Socket / Base
Unterminated (H05RN-F 3G0,75mm²)
Reflector / Diffuser
Polycarbonate lens
Housing Adjustments
180° adjustable housing
NSW ESS Accepted
No
Operating Environment
-20° ~ 50°C

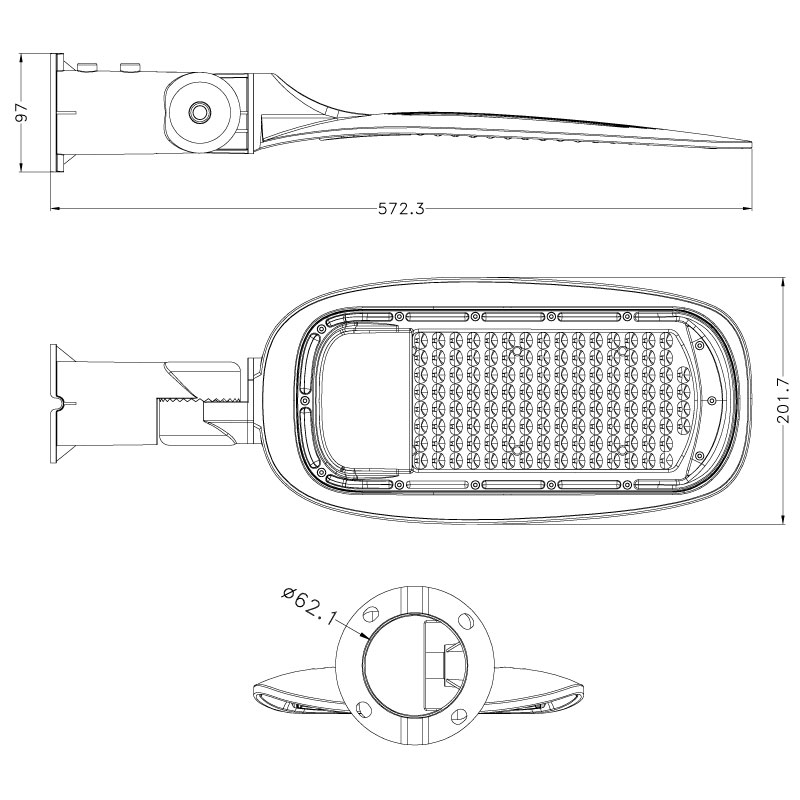

Dimensions
572 x 202 x 97mm
Other
Pole Installation
Ø62.1mm (Max.)
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
220 mm
Height
590 mm
Depth
100 mm
Weight
2.30 kg
