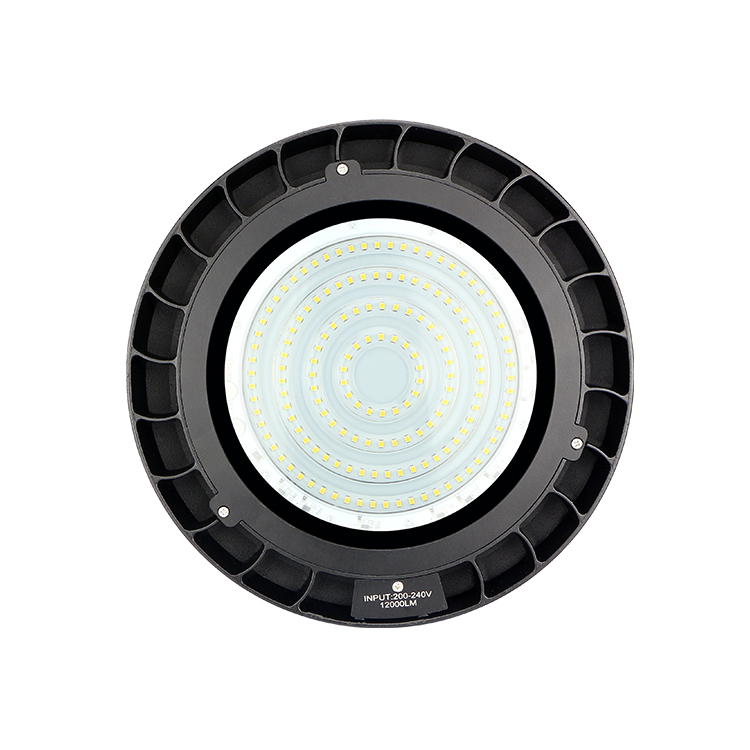

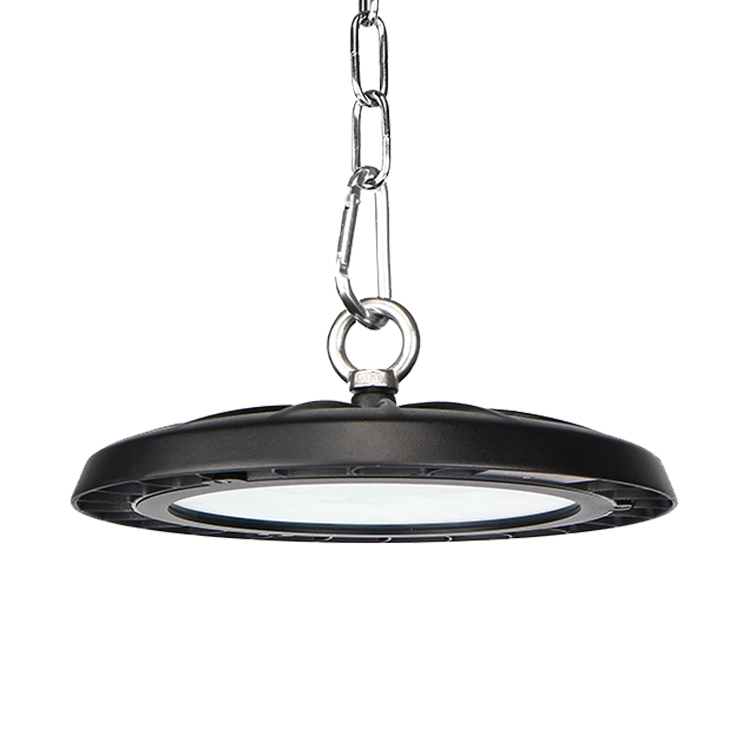

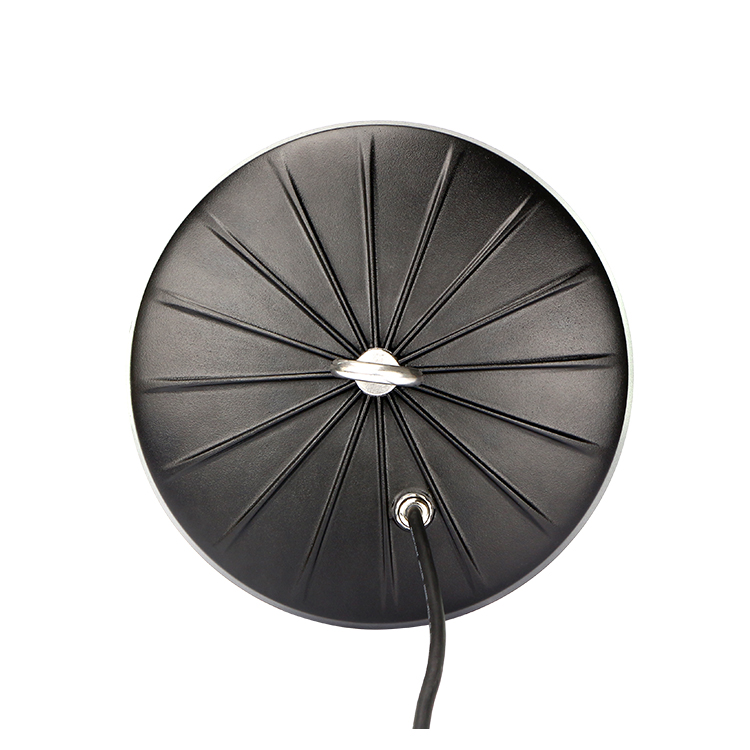

AVOL 200W Driver-on-Board LED High Bay Light

SKU LHB-E200-C

AVOL 200W Driver-on-Board LED High Bay Light

SKU LHB-E200-C

This product is Coming Soon. Please contact us for more information.

The AVOL LHB-E Series high bay lights deliver energy efficient lighting to commercial applications. They are built with a weather resistant housing and IK07 rated vandal resistant tampered glass lens. Each light has a compact, robust aluminium body and comes in a cool white colour temperature.

The LHB-E series delivers ideal lighting conditions in areas with high ceilings, such as warehouses, sporting facilities and exhibition halls.

Product features:
• 200W LED flood light with 20000lm light output
• High 100lm/W luminous efficacy for energy efficiency
• 6000K cool white colour temperature
• 90° beam angle
• Slim economical design, and aluminum construction
• IK07 rated vandal resistant strong tempered glass lens
• IP65 rated weather resistance for outdoor use
• Long lifespan LED lighting: rated for up to 35,000 hours
• Integrated, on-board LED driver for streamlined installation

Suggested Products

AVOL 100W Driver-on-Board LED High Bay Light
LHB-E100-C

AVOL 150W Driver-on-Board LED High Bay Light
LHB-E150-C

Links and Downloads

AVOL LHB-E Series High Bays Datasheet (PDF) 0.39 MB

LHB-E Series LED High Bays Installation Guide (PDF) 1.24 MB

LHB-E200-C - IES File for Lighting Simulation 0.06 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Optical

Light Output

20000lm

Luminous Efficacy

100lm/W

Colour Temperature

6000K

Colour Rendering Index

> 80

Beam Angle

90°

Light Decay

N/A

Rated Lifespan

35,000 hours

Electrical

Power Consumption

200W

Input Voltage

220 ~ 240VAC

Power Factor

> 0.9

Dimmable

N/A

Motion Activated

N/A

General

Ingress Protection

IP65

Plug / Socket / Base

3-Pin AC Plug

Reflector / Diffuser

Tempered glass lens

Housing Adjustments

180° adjustable housing

NSW ESS Accepted

Operating Environment

-20° ~ 50°C

Dimensions

Ø360 x 52mm

Other

Vandal Resistance

IK07

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

370 mm

Height

80 mm

Depth

390 mm

Weight

3.30 kg
