Longevity 5GHz Wireless Link

Brand logo
SKU LGAP300
Brand logo

Longevity 5GHz Wireless Link

SKU LGAP300

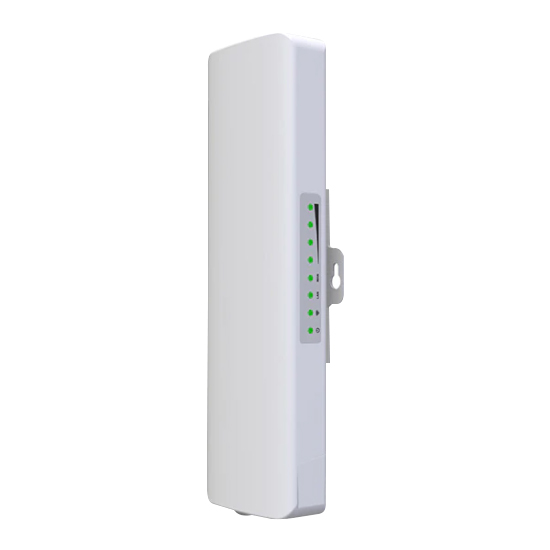

The LGAP300 is a long range, 5GHz directional wireless antenna. This wireless transmitter is perfect for building reliable wireless bridges to expand your network.

Product features:
• Strong signal with dual antenna design
• Dual 10/100M LAN and WAN ports with PoE
• Up to 5km point-to-point range (no obstructions)
• 60°(H) / 30°(V) signal angle
• 867Mbps link-link transfer rate
• Pole, wall and rack mountable
• Operates in extreme temperatures from -40°C to 55°C
• IP65 weather resistance for outdoors use

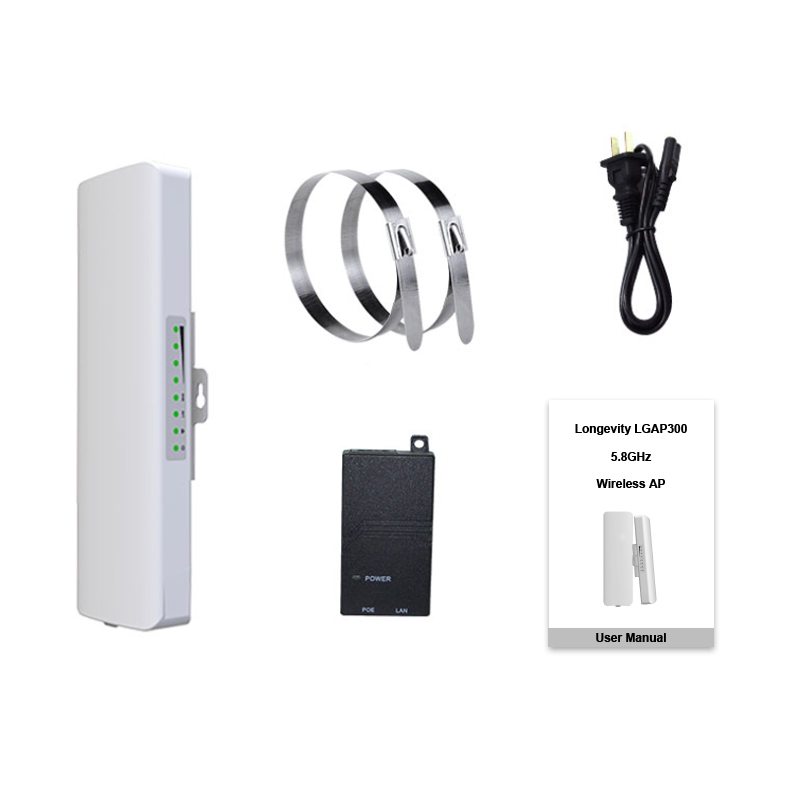

Includes:
1 x WiFi access point
1 x PoE power adapter
2 x Stainless ties for pole mount
1 x Power cable
1 x Instruction manual

Suggested Products

Suggested product image
Longevity 5GHz Wireless Point-to-Point Bridge (2 Links)
LGAP300-PACKA
Suggested product image
Longevity 5GHz Wireless Point-to-Multi-Point Bridge (3 Links)
LGAP300-PACKB

Links and Downloads

Longevity LGAP300 Datasheet (PDF) 0.10 MB
Longevity LGAP300 User Manual V1.4.pdf 2.75 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Antennas
2 x 5.8GHz 12dBi Directional Antennas
Transmitting Power
200mW (23dBm)
Receiving Sensitivity
-96dBm
Operating Frequency
5.18GHz ~ 5.82GHz
Transmission Rate
5.8GHz: 865Mbps (between links only)
Wireless Standard
IEEE802.11a/an/ac
Network Interface
1 x 10/100Mbps WAN RJ45 Ethernet Port (PoE Support), 1 x 10/100Mbps LAN RJ45 Ethernet Port (PoE Support)
Environment
Indicator Lights
Power / WAN / LAN / WiFi / Signal Strength
Power
PoE Power Supply (802.3af) / 48V 0.32A Power Adapter
Power Consumption
<8W
IP Rating
IP65, 2KV Lightning Portection
Installation
Bracket/Pole/Rack Mount
Case
ABS Plastic Case
Operating Temperature
-40°C~55°C / 10%~90%RH
Dimensions
262 x 80 x 53mm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
120 mm
Height
340 mm
Depth
80 mm
Weight
0.80 kg
