1300Mbps Dual Band Wireless Access Point

Brand logo
SKU LGAP200
Brand logo

1300Mbps Dual Band Wireless Access Point

SKU LGAP200

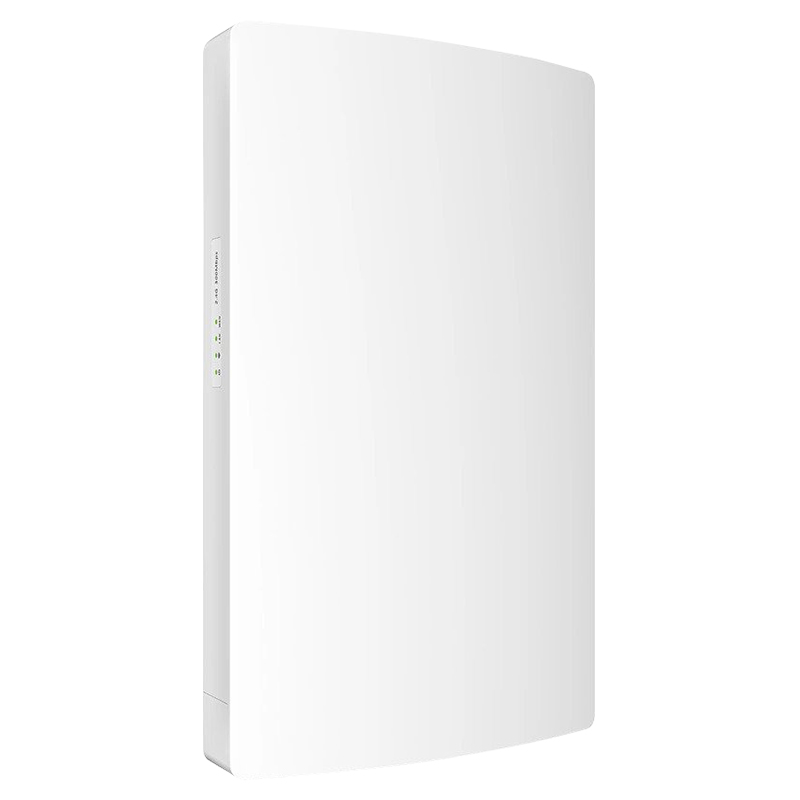

The LGAP200 is an long range directional antenna with dual frequency 2.4GHz/5.8GHz. This high speed wireless transmitter delivers reliable WiFi connections.

Product features:
• 1300Mbps Gigabit high speed
• Dual LAN/WAN ports
• Strong signal with dual antenna design
• WAVE2 WiFi technology
• 60°(H)/30°(V) signal angle
• IP65 weather resistance for outdoors use

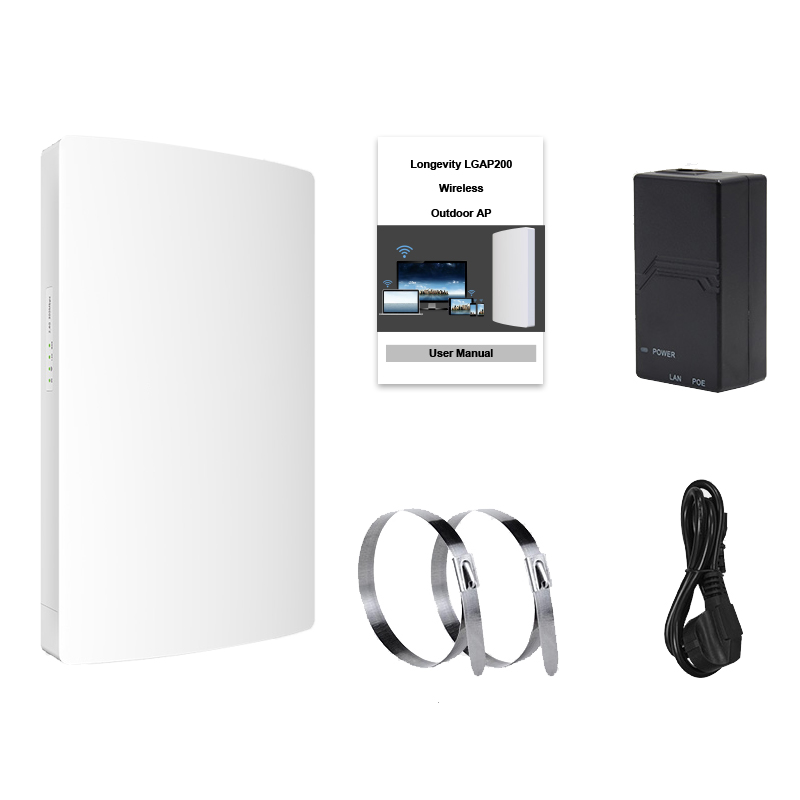

Includes:
1 x WiFi access point
1 x PoE power adapter
2 x Stainless ties for pole mount
1 x Power cable
1 x Instruction manual

Suggested Products

Suggested product image
Longevity 5GHz Wireless Link
LGAP300

Links and Downloads

Longevity LGAP200 Datasheet (PDF) 0.11 MB
Longevity LGAP200 User Manual v1.0 (PDF) 1.60 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Antennas
2.4GHz: 11dBi Directional Antennas, 5.8GHz: 13dBi Direction Antennas
Transmitting Power
500mW (27dBm)
Receiving Sensitivity
-96dBm
Operating Frequency
802.11ac/n/a: 5.18GHz-5.825GHz, 802.11b/g/n: 2.412GHz-2.4835GHz
Transmission Rate
2.4GHz: 450Mbps, 5.8GHz: 865Mbps
Wireless Standard
N/A
Network Interface
Environment
Indicator Lights
Power \ WAN \ LAN \ WiFi
Power
PoE Power Supply (802.3af) / 48V 0.5A Power Adapter
Power Consumption
<20W
IP Rating
IP65
Installation
Bracket/Pole Mount
Case
ABS Material, Plastic Case
Operating Temperature
-10°C~65°C / 10%~90%RH
Dimensions
300 x 180 x 50mm
Other
Network Ports

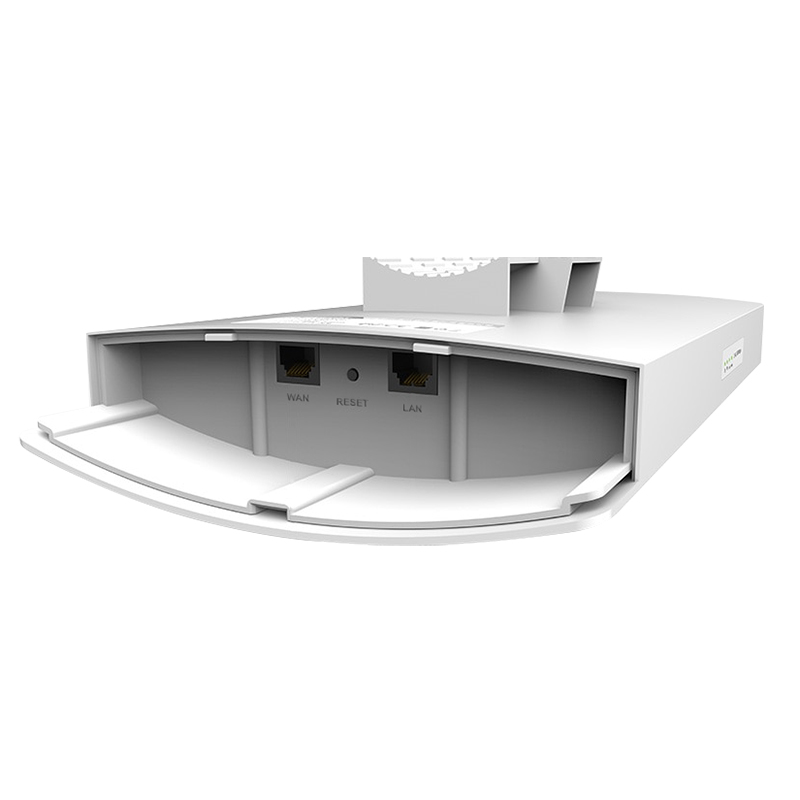

1 x 10/100/1000Mbps WAN RJ45 Ethernet Port (PoE Support), 1 x 10/100/1000Mbps LAN RJ45 Ethernet Port (PoE Support)
Wireless Rate
2.4GHz: 450Mbps / LTE Cat4: 867Mbps
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
280 mm
Height
360 mm
Depth
80 mm
Weight
1.35 kg
