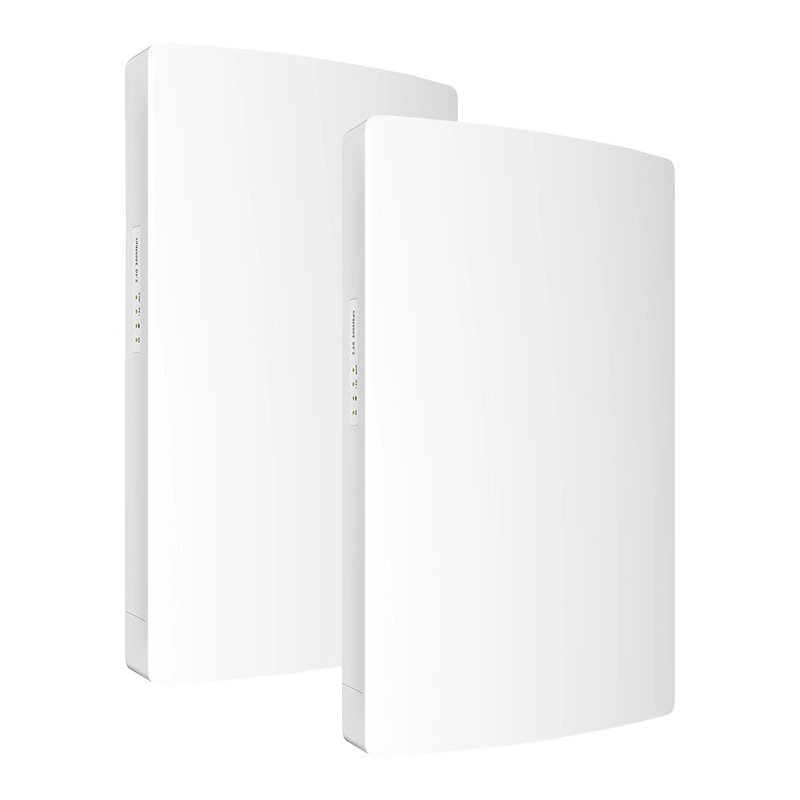

2 x Preconfigured 1300Mbps Dual Band Wireless Access Point

Brand logo
SKU LGAP200-PACKA
Brand logo

2 x Preconfigured 1300Mbps Dual Band Wireless Access Point

SKU LGAP200-PACKA

Stock may be limited. Please contact us for availability or for an alternative item.

The LGAP200 is an long range directional antenna with dual frequency 2.4GHz/5.8GHz. This high speed wireless transmitter delivers reliable WiFi connections.

LGAP200-PACKA includes 2 x preconfigured LGAP200 for PTP (point-to-point) or PTMP (point-to-multi-point), with up to 120m wireless range.

Product features:
• 1300Mbps Gigabit high speed
• Dual LAN/WAN ports
• Strong signal with dual antenna design
• WAVE2 WiFi technology
• 60°(H)/30°(V) signal angle
• IP65 weather resistance for outdoors use

Includes:
2 x WiFi access point
2 x PoE power adapter
4 x Stainless ties for pole mount
2 x Power cable
1 x Instruction manual

Suggested Products

Suggested product image
1300Mbps Dual Band Wireless Access Point
LGAP200
Suggested product image
3 x Preconfigured 1300Mbps Dual Band Wireless Access Point
LGAP200-PACKB

Links and Downloads

Longevity LGAP200 Datasheet (PDF) 0.11 MB
Longevity LGAP200 User Manual v1.0 (PDF) 1.60 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Antennas
2.4GHz: 11dBi Directional Antennas, 5.8GHz: 13dBi Direction Antennas
Transmitting Power
500mW (27dBm)
Receiving Sensitivity
-96dBm
Operating Frequency
802.11ac/n/a: 5.18GHz-5.825GHz, 802.11b/g/n: 2.412GHz-2.4835GHz
Transmission Rate
2.4GHz: 450Mbps, 5.8GHz: 865Mbps
Wireless Standard
N/A
Network Interface
Environment
Indicator Lights
Power \ WAN \ LAN \ WiFi
Power
PoE Power Supply (802.3af) / 48V 0.5A Power Adapter
Power Consumption
<20W
IP Rating
IP65
Installation
Bracket/Pole Mount
Case
ABS Material, Plastic Case
Operating Temperature
-10°C~65°C / 10%~90%RH
Dimensions
300 x 180 x 50mm
Other
Network Ports
1 x 10/100/1000Mbps WAN RJ45 Ethernet Port (PoE Support), 1 x 10/100/1000Mbps LAN RJ45 Ethernet Port (PoE Support)
Wireless Rate
2.4GHz: 450Mbps / LTE Cat4: 867Mbps
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
280 mm
Height
360 mm
Depth
160 mm
Weight
2.70 kg
