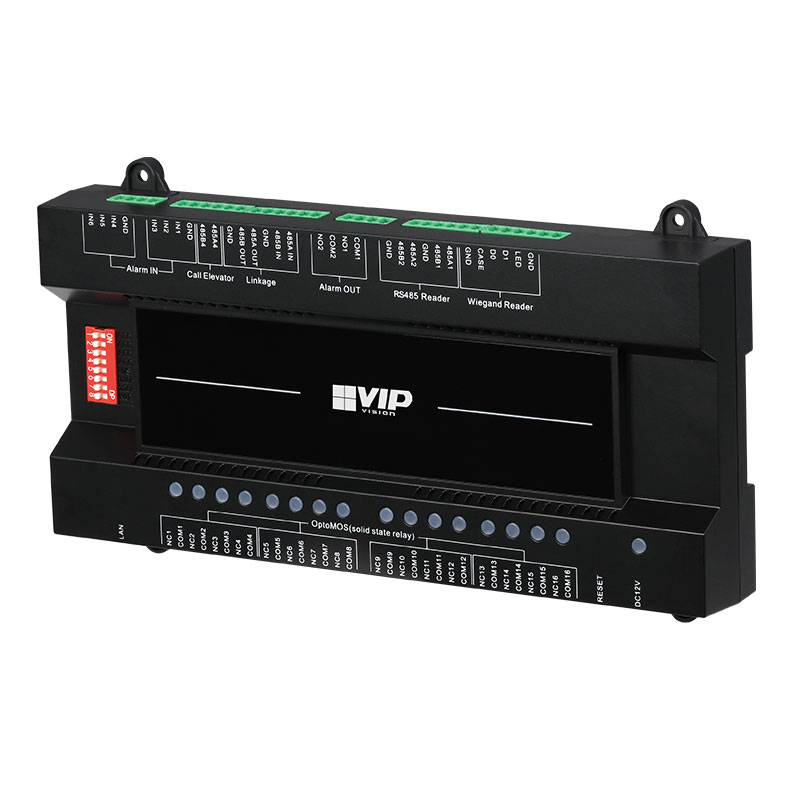

Apartment Series Lift Controller

Brand logo
SKU LFTCON
Brand logo

Apartment Series Lift Controller

SKU LFTCON

Available by special order only. Please contact us for lead times.

Product features:
• Connect up to 1 Wiegand reader and 2 RS485 readers
• Support 8 cascading, up to 128 floors permission control
• Alarm In/Out: 6/2
• Alarm records and log records: 30,000
• Supports up to 60 call lift modules
• All floors' permission will be released if fire alarm is triggered
• Remote control and configured via web client

Links and Downloads

VIP Vision LFTCON User Manual (PDF) 6.02 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

System
Main Processor
ARM Cortex M4@180MHz
Communication Type
TCP/IP; RS485, and Wiegand
Indicator
Power Indicator
1
Communication Indicator
1
Relay Indicator
16
Interface
Alarm In
6 (Alarm_in_1 for fire alarm)
Alarm Out
2
RS485
4 (RS485 1: card reader or call lift module / RS485 2: card reader or call lift module / RS485 3: cascade with slave lift controller / RS485 4: call lift module)
Wiegand
1
Relay Out
16
General
Installation
Wall mount / DIN rail
Power
12VDC, PoE (802.3af)
Operating Temperature
-20°C~55°C / 90%RH
Dimensions
210mm x 116mm x 29mm
Weight
1.0kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
210 mm
Height
29 mm
Depth
116 mm
Weight
1.00 kg
