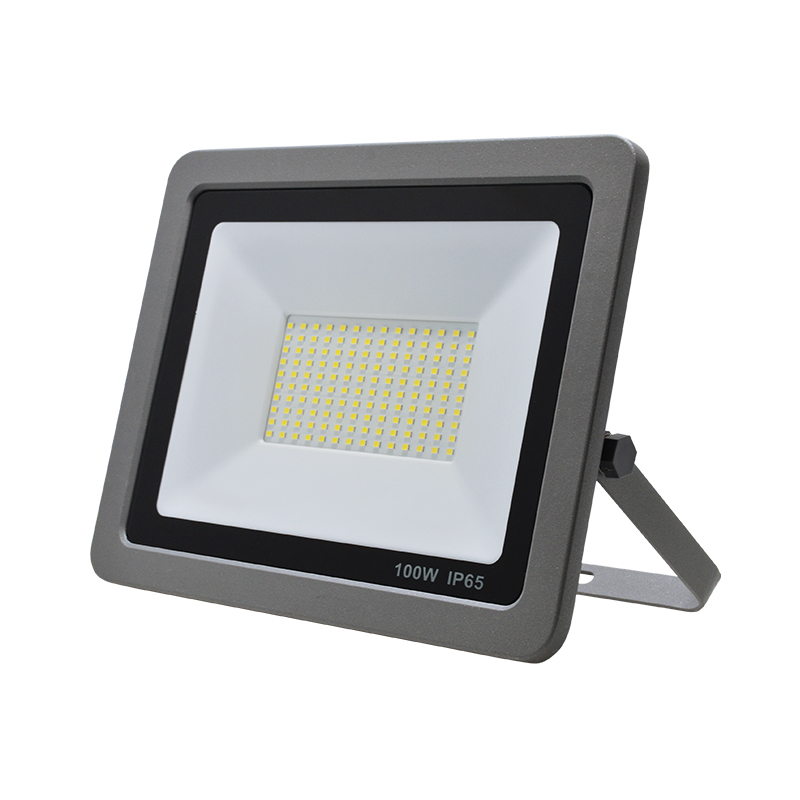

AVOL 100W Driver-on-Board LED Flood Light (6000K)

SKU LFL-H100-C

AVOL 100W Driver-on-Board LED Flood Light (6000K)

SKU LFL-H100-C

The AVOL LFL-H Series of driver-on-board LED flood lights delivers high quality, affordable & efficient lighting performance in a robust, weather resistant package. The driver-on-board design of the LFL-H Series means the chassis is lightweight and compact for easy installation. Each flood also has a simple U-shape adjustable bracket for wall mounting.

LFL-H Series LED flood lights are ideal for general purpose or security lighting in residential & commercial applications.

Product features:
• 100W LED flood light with 8000lm light output (80lm/W)
• 6000K cool white colour temperature
• Wide 120° beam angle; reflector minimises LED glare
• Lightweight aluminium chassis with adjustable U-bracket
• IP65 rated weather resistance for outdoor use
• Long lifespan LED lighting: rated for up to 35,000 hours
• Integrated, on-board LED driver for streamlined installation

Suggested Products

AVOL 150W Driver-on-Board LED Flood Light (6000K)
LFL-H150-C

AVOL 200W Driver-on-Board LED Flood Light (6000K)
LFL-H200-C

AVOL 50W Driver-on-Board LED Flood Light (6000K)
LFL-H50-C

AVOL 50W Sensor LED Flood Light (6000K)
LFL-H50-CS

Links and Downloads

LFL-H Series LED Flood Lights Datasheet (pdf) 0.47 MB

LFL-H Series LED Flood Lights Guide 2.pdf 2.40 MB

LFL-H100-C IES - File for Lighting Simulation 0.06 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Optical

Light Output

8000lm

Luminous Efficacy

80lm/W

Colour Temperature

6000K

Colour Rendering Index

> 80

Beam Angle

120°

Light Decay

N/A

Rated Lifespan

35,000 hours

Electrical

Power Consumption

100W

Input Voltage

220 ~ 240VAC

Power Factor

>0.9

Dimmable

N/A

Motion Activated

N/A

General

Ingress Protection

IP65

Plug / Socket / Base

3-Pin AC Plug

Reflector / Diffuser

Aluminium reflector

Housing Adjustments

Adjustable U bracket

NSW ESS Accepted

Operating Environment

-25° ~ 50°C

Dimensions

270 x 210 x 30mm

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

260 mm

Height

285 mm

Depth

50 mm

Weight

1.60 kg
