Commercial 20W 5000K LED Sensor Flood Light

Brand logo
SKU LFL-C20-CS3
Brand logo

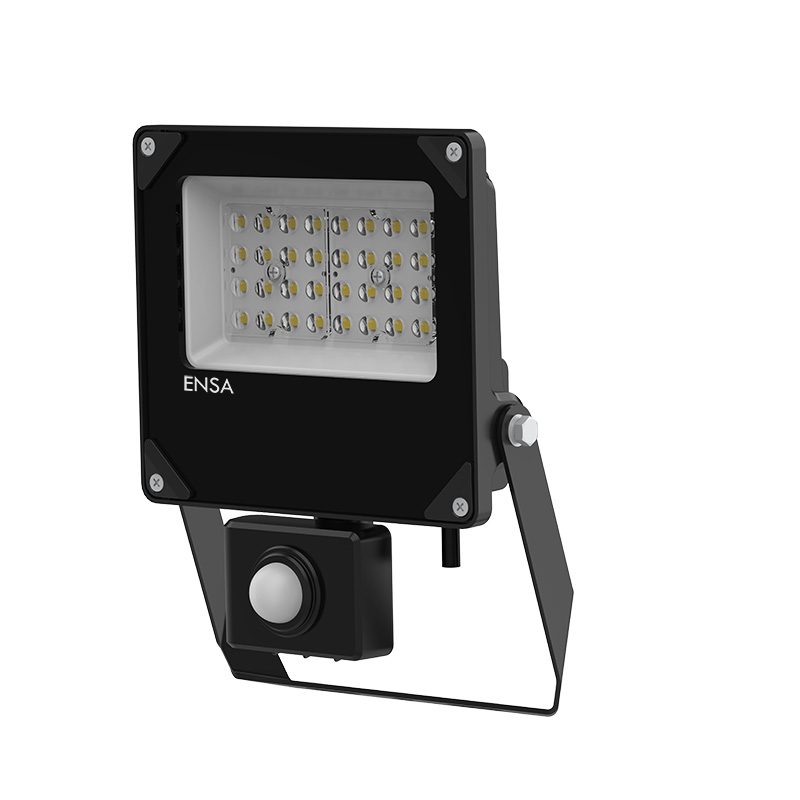

Commercial 20W 5000K LED Sensor Flood Light

SKU LFL-C20-CS3

The LFL-C-3 Series combines energy saving LED flood lighting with customisable motion-sensing technology. Models use high quality Lumileds LEDs and reliable LED drivers for long lasting performance. Available in three wattages, each model in this series is equipped with a 8m passive infrared sensor with lux sensitivity, motion sensitivity and on-time adjustments.

The LFL-C-3 Series is built with a metal, IP66 rated weather resistant chassis, making them suitable for outdoor lighting in residential, commercial and industrial applications.

• Superb light output across the range up to 140lm/W
• High quality Lumileds 2835 LEDs in 5000K cool white
• Sensor flood light models detect up to 8m in a 140° arc
• Durable metal IP66 rated weather resistant chassis
• Adjust light & motion sensitivity and light on-timer
• On/off sensor light; pan/tilt adjustable PIR sensor body
• Wide 120° beam angle, great for general purpose lighting
• Adjustable U-shape mount with over 240° of motion

Suggested Products

Suggested product image
Commercial 30W 5000K LED Sensor Flood Light
LFL-C30-CS3
Suggested product image
Commercial 50W 5000K LED Sensor Flood Light
LFL-C50-CS3

Links and Downloads

Specifications

Optical
Light Output
2800lm
Luminous Efficacy
140lm/W
Colour Temperature
5000K
Colour Rendering Index
>80
Beam Angle
120°
Light Decay
<5% at 6,000 hours
Rated Lifespan
50,000 hours
Electrical
Power Consumption
20W
Input Voltage
100 ~ 240VAC 50 / 60Hz
Power Factor
>0.9
Dimmable
N/A
Motion Activated
Passive Infrared (PIR) motion sensor, 140° arc up to 8m range, pan & tilt sensor (±75°)
General
Ingress Protection
IP66
Plug / Socket / Base
Unterminated
Reflector / Diffuser
Internal aluminium reflector / Tempered glass front
Housing Adjustments
240° adjustable 2-point fastened U-bracket
NSW ESS Accepted
N/A
Operating Environment
-20° ~ 50°C

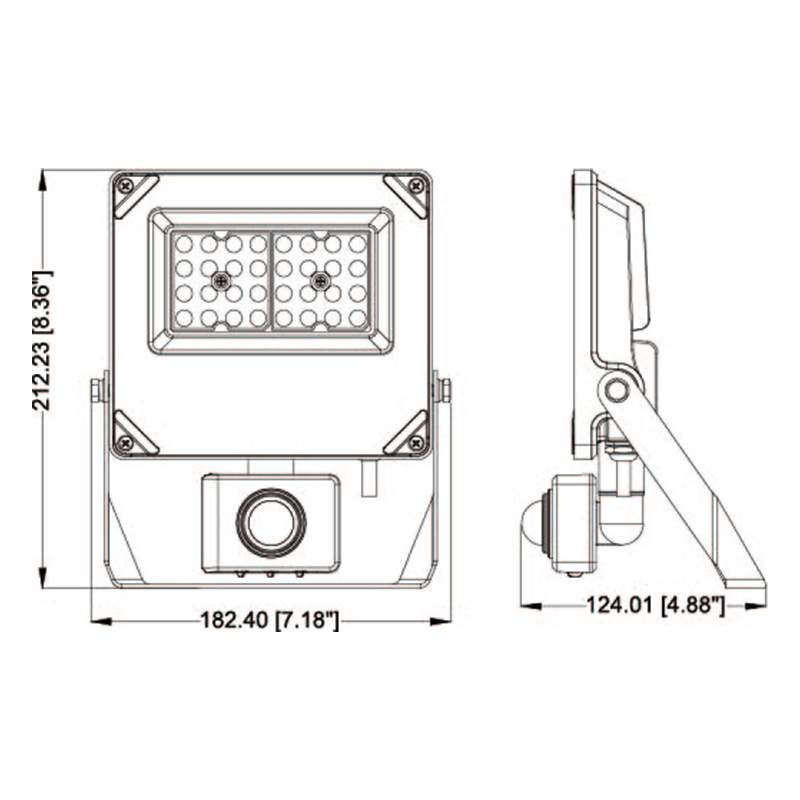

Dimensions
212 x 182 x 124mm
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
230 mm
Height
230 mm
Depth
85 mm
Weight
0.97 kg
