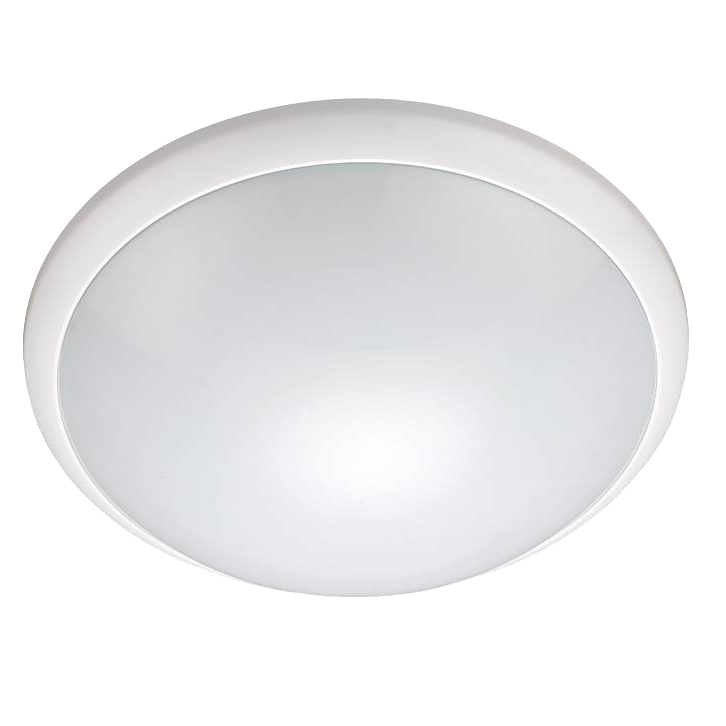

Intelligent 16W LED Sensor Down Light (3000K)

Brand logo
SKU LEDDL16W3KS
Brand logo

Intelligent 16W LED Sensor Down Light (3000K)

SKU LEDDL16W3KS

Stock may be limited. Please contact us for availability or for an alternative item.

The ENSA LEDDL16W3KS is an automated energy saving downlight. A truly customisable energy efficient lighting solution, it features a 5.8Ghz microwave motion sensor, light sensor and control electronics to compound the already superb energy savings of switching to LED over fluorescent.

When ambient light levels are above the set limit, the LEDDL16W3KS remains in standby mode, consuming only 0.9W. When ambient light levels fall below the set limit, the light will turn on when motion is detected. Motion and daylight sensitivity are adjustable and can be fine tuned to match the area's needs.

Product Features:
• Light use is cleverly automatically controlled via daylight & motion sensors and the on-timer
• Adjustable daylight sensor: 3 ~ 2000 lux ambient light level adjustable
• Adjustable microwave motion sensor: 360° detection in a 1m ~ 8m radius
• On-time adjustable: from 10s ~ 12min - the light stays on for a set time after no movement detected;
• During this time, if movement is detected, the on-time delay timer is reset automatically
• Comes ready for installation in IP44 housing

* This professional light must only be installed by a qualified electrician.

Links and Downloads

LEDDL16WxKS Product Brochure (PDF) 0.19 MB
LEDDL16WxKS Product Manual (PDF) 0.19 MB
ENSA LEDDL Series Smart Oyster Light Datasheet (PDF) 0.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Optical
Light Output
1200lm
Luminous Efficacy
75lm/W
Colour Temperature
3000K
Colour Rendering Index
> 80
Beam Angle
120°
Light Decay
<15% at 10,000 hours
Rated Lifespan
30,000 hours
Electrical
Power Consumption
16W
Input Voltage
220-240VAC (50Hz)
Power Factor
> 0.9
Dimmable
No
Motion Activated
General
Ingress Protection
IP44
Plug / Socket / Base
Internal terminal block
Reflector / Diffuser
Frosted diffuser
Housing Adjustments
N/A
NSW ESS Accepted
No
Operating Environment
-20° ~ 50°C
Dimensions
Ø300 x 115mm
Other
Ambient Light Sensor
< 3 ~ 2000lx (adjustable)
Battery Backup
N/A
Dimmed Brightness
N/A
Dimming Description
N/A
Dimming Timeout
N/A
Emergency Brightness
N/A
Equivalent Wattage
75W halogen
Motion Detection
360° Microwave (5.8GHz) / 8m radius (adjustable)
On-Time Delay
10s ~ 12min (adjustable)
Standby Light Modes
Off (0% brightness)
Vandal Resistance
N/A
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
310 mm
Height
310 mm
Depth
120 mm
Weight
1.40 kg
