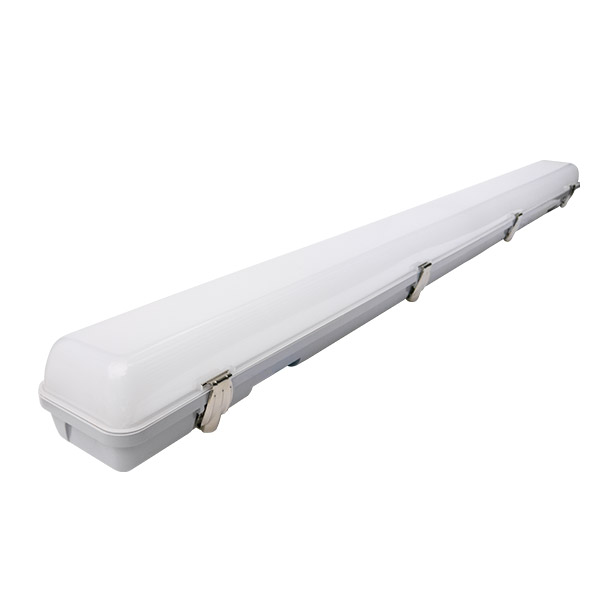

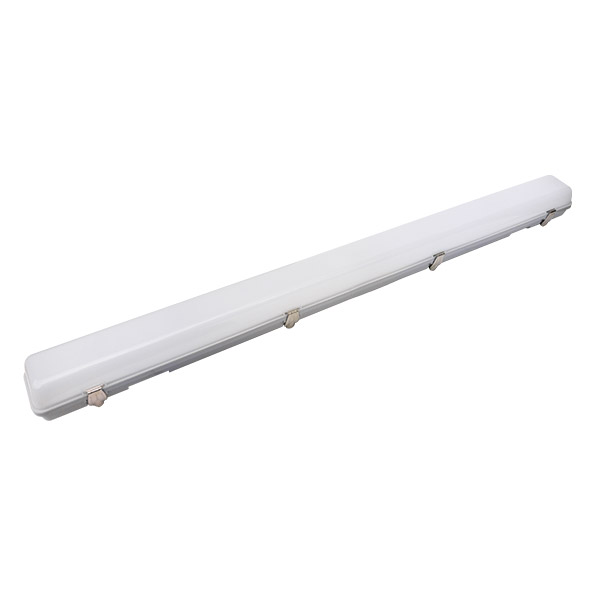

Intelligent 36W LED Batten Light (1200mm)

Brand logo
SKU LEDBT36WS2
Brand logo

Intelligent 36W LED Batten Light (1200mm)

SKU LEDBT36WS2

The ENSA™ LED batten light series comprises customisable energy efficient lighting solutions that deliver control over your lighting, without the need for a complex management system. Models are available as standard sensor batten lights or as an emergency sensor batten light fitted with an emergency backup battery for over 5 hours light uptime.

Intelligent emergency battens feature motion detection, on-time delay and standby time delay functions to tailor your light use for efficiency & practicality. Each model features 2-stage dimming and can be configured to stay at 100% brightness, to dim and then turn off, or to dim and stay dimmed.

• Tailor your light use to further compound energy savings.
• Adjustable light-use controls such as on-time delay.
• Sensor can detect motion through glass and thin walls.
• Built tough housing: IP65 dust and weather resistant.
• Emergency lighting models are AS2293.3 approved.
• Easy access TEST button for emergency light testing.
• NSW ESS Accepted

Links and Downloads

LEDBTWS2 / SE Series Datasheet (PDF) 0.24 MB
LEDBT36WS - IES File for Lighting Simulation 0.02 MB
LEDBTWS2 / SE Series Install Guide (PDF) 0.27 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Optical
Light Output
3900lm
Luminous Efficacy
108lm/W
Colour Temperature
6000K
Colour Rendering Index
> 80
Beam Angle
123°
Light Decay
L70 at 54,000 hours
Rated Lifespan
54,000 hours
Electrical
Power Consumption
36W
Input Voltage
220 ~ 240VAC (50 ~ 60Hz)
Power Factor
>0.9
Battery Backup
N/A
Emergency Power Output
N/A
Control
Motion Detection
360° 5.8GHz Microwave / 8m max. radius / 50% ~ 100% adjustable (default: 100%)
On-Time Delay
5s / 30s / 90s / 180s (default: 90s)
Dimmed Brightness
20% / 40% / 60% / 100% (default: 20%)
Dimming Timeout
0s / 90s / 180s / ∞s (default: ∞s)
Dimming Description
Turn off / Time delay / Always on
General
Ingress Protection
IP65
Plug / Socket / Base
Internal terminal block
Installation Materials
Mounting clips, mounting screws & wall plugs, cable
Reflector / Diffuser
Frosted diffuser
Operating Environment
-20° ~ 40°C
Dimensions
1260 x 108 x 85mm
Certifications
IPART
Other
Ambient Light Sensor
N/A
Dimmable
Yes
Equivalent Wattage
N/A
Motion Activated
Yes
NSW ESS Accepted
Yes
Standby Light Modes
N/A
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
100 mm
Height
1,220 mm
Depth
80 mm
Weight
1.90 kg
