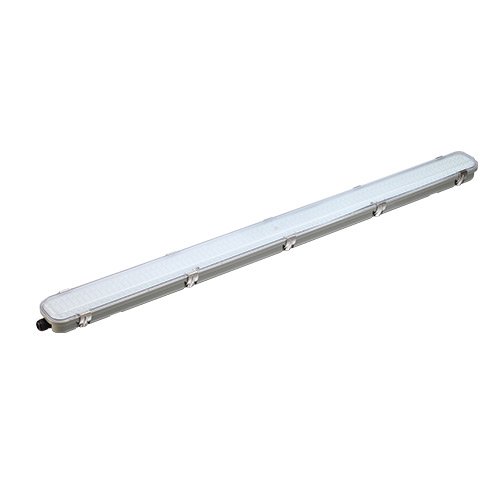

Intelligent 36W LED Batten Light (1200mm)

Brand logo
SKU LEDBT36WS
Brand logo

Intelligent 36W LED Batten Light (1200mm)

SKU LEDBT36WS

The ENSA™ LEDBT36WS is an automated, customisable, energy saving batten light. It features a 5.8GHz microwave motion sensor, daylight sensor and control electronics to compound energy savings offered by switching to LED from fluorescent tubes.

Product Highlights:
• Effectively halve power use compared to 1200mm (4ft) fluorescent twin battens.
• Compound your energy savings with adjustable daylight and motion sensors.
• 360° microwave sensor detects motion through doors, glass or even thin walls.
• IP65 rated: polyurethane gaskets, stainless steel clips and polycarbonate diffuser.
• Adjustable 10s ~ 12min on-time delay: perfect for carparks, stairwells and more.

Links and Downloads

LEDBT36WS Product Manual (PDF) 0.20 MB
LEDBT Intelligent Lighting Series (PDF) 1.44 MB
LEDBT36WS - IES File for Lighting Simulation 0.02 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Optical
Light Output
3240lm
Luminous Efficacy
90lm/W
Colour Temperature
6000K
Colour Rendering Index
> 70
Beam Angle
140°
Light Decay
<15% at 20,000 hours
Rated Lifespan
> 50,000 hours
Electrical
Power Consumption
36W
Input Voltage
220-240VAC (50Hz)
Power Factor
> 0.9
Dimmable
No
Motion Activated
Yes
General
Ingress Protection
IP65
Plug / Socket / Base
Internal terminal block
Reflector / Diffuser
Clear polycarbonate diffuser / Metal clips
Housing Adjustments
N/A
NSW ESS Accepted
No
Operating Environment
-20° ~ 50°C
Dimensions
1200 x 95 x 80mm
Other
Ambient Light Sensor
3 ~ 2000lx (adjustable)
Battery Backup
N/A
Certifications
N/A
Dimmed Brightness
N/A
Dimming Description
N/A
Dimming Timeout
N/A
Emergency Power Output
N/A
Equivalent Wattage
80W fluorescent
Installation Materials
N/A
Motion Detection
360° Microwave (5.8GHz) / 8m radius (adjustable)
On-Time Delay
10s ~ 12min (adjustable)
Standby Light Modes
Off (0% brightness) / Dimmed (50% brightness)
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
72 mm
Height
123 mm
Depth
100 mm
Weight
1.60 kg
