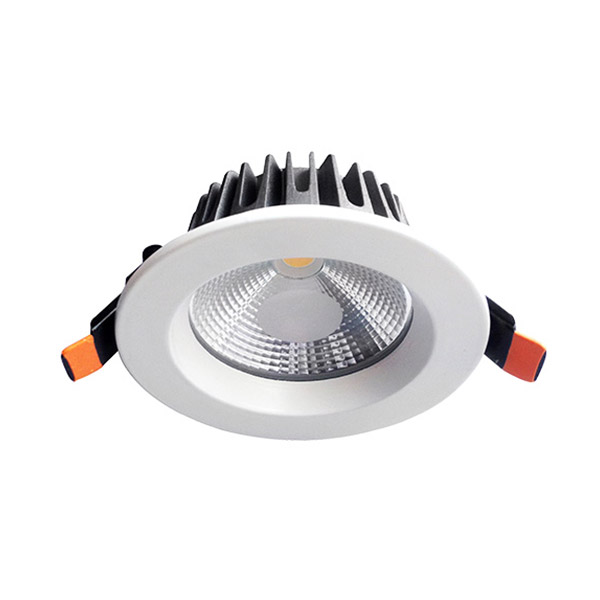

9W Commercial Fixed Dimmable LED Downlight (3000K)

Brand logo
SKU LDL-BD9-FW
Brand logo

9W Commercial Fixed Dimmable LED Downlight (3000K)

SKU LDL-BD9-FW

• 9W LED downlight with 700lm light output, equivalent to 26W halogen
• 95° beam angle, Ø95mm diameter hole cut size
• LED downlight series ideal for residential or small business applications
• Available in warm (3000K) and cool white (6000K) colour temperatures
• Ideal for general purpose lighting with wide beam angles
• Up to 35,000 hours rated lifespan; features high CRI of >80
• Discreet white gimble surround and partially frosted diffuser
• All models are dimmable and include LED transformer

Links and Downloads

LDL-BD Series Brochure (PDF) 0.61 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Adjustable Housing
No
Beam Angle
95°
Category
LED Lighting
Colour Rendering Index
>80
Colour Temperature
3000K
Dimensions
Ø105 x 48mm
Dimmable
Yes
Equivalent Wattage
25W halogen
Hole Cut Size
Ø95mm
Housing Adjustments
N/A
Input Voltage
100~240VAC
Light Decay
< 30% over 10,000 hours
Luminous Efficacy
78lm/W
Luminous Flux
700lm
Operating Environment
-20°C ~ 40°C
Plug / Socket / Base
3-pin AC plug with external driver
Power Consumption
9W
Power Factor
>0.9
Rated Lifespan
>35,000 hours
Reflector / Diffuser
Partially diffused reflector lens
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
140 mm
Height
140 mm
Depth
90 mm
Weight
0.46 kg
