12W Residential Fixed LED Downlight (3000K)

Brand logo
SKU LDL-A12-WW
Brand logo

12W Residential Fixed LED Downlight (3000K)

SKU LDL-A12-WW

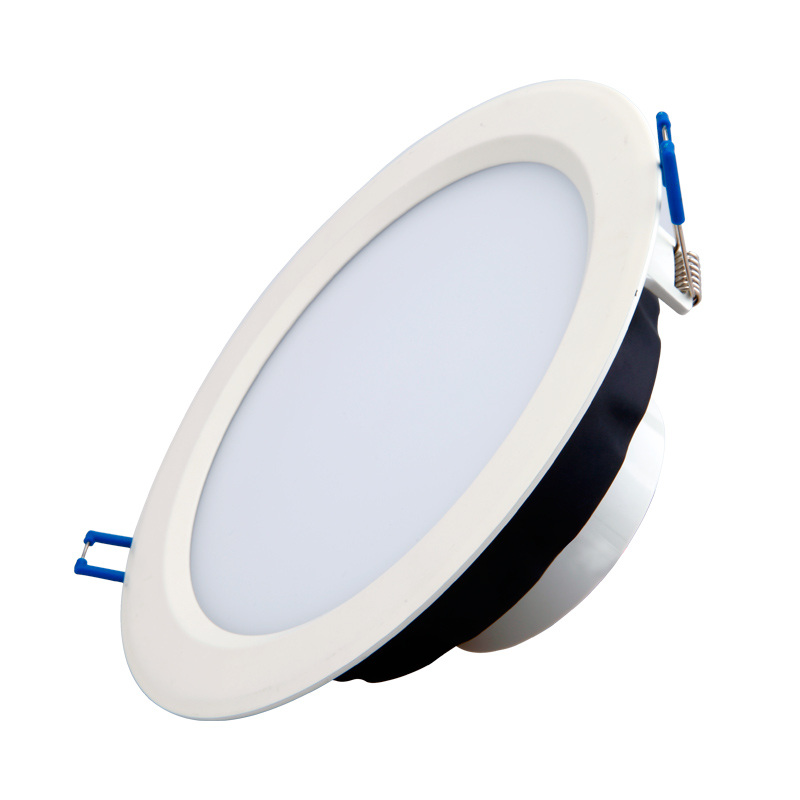

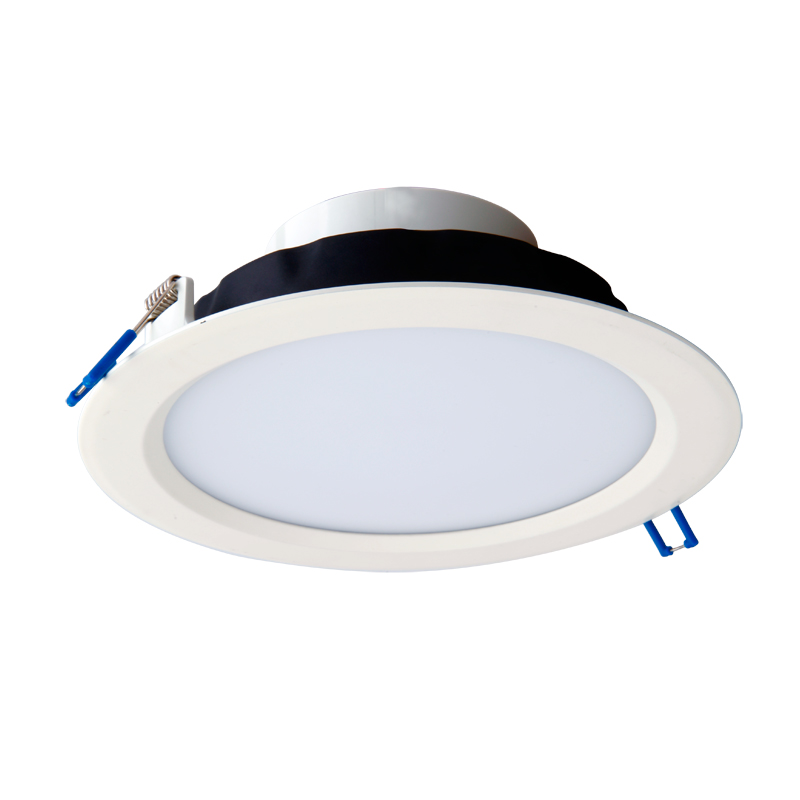

The ENSA™ LDL-A12-WW is a LED downlight that is suitable for general purpose illumination in retail, residential or office environments. For the best in light output and long lifespan, choose the ENSA premium range.

• 12W power consumption
• 3000K warm white colour temperature
• Illuminates large areas easily with a wide 110° beam angle
• Up to 30,000 hours rated lifespan; features high CRI of >75
• Discreet white gimble surround and partially frosted diffuser
• Includes LED transformer
• 1020lm equivalent to 40W halogen
• Ø150mm hole cut size

Links and Downloads

Commercial Fixed Downlight Series (PDF) 0.70 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Optical
Light Output
1020lm
Luminous Efficacy
85lm/W
Colour Temperature
3000K
Colour Rendering Index
>75
Beam Angle
110°
Light Decay
< 30% over 10,000 hours
Rated Lifespan
>30,000 hours
Electrical
Power Consumption
12W
Input Voltage
100~240VAC
Power Factor
>0.9
Dimmable
No
General
Plug / Socket / Base
3-pin AC plug with external driver
Reflector / Diffuser
Frosted Diffuser
Housing Adjustments
N/A
IPART Accepted
Ingress Protection
Operating Environment
-20°C ~ 40°C
Dimensions
Ø175 x 68mm
Hole Cut Size
Ø150mm
Other
Category
LED Lighting
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
40 mm
Height
40 mm
Depth
61 mm
Weight
0.20 kg
