23.8" Flashview 1080p LCD Surveillance Monitor (IPS)

Brand logo
SKU LCDFL24G
Brand logo

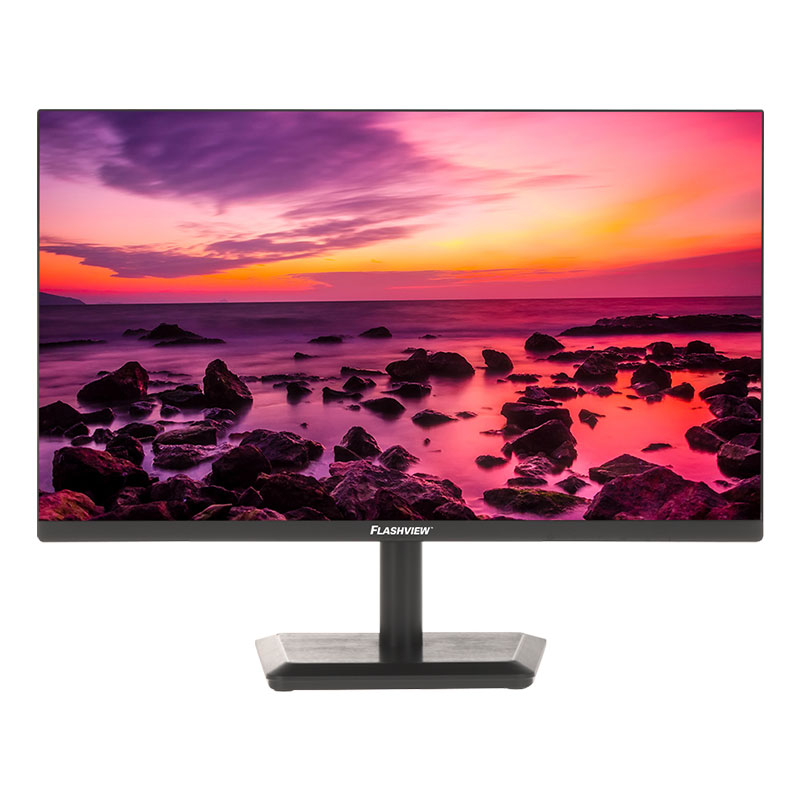

23.8" Flashview 1080p LCD Surveillance Monitor (IPS)

SKU LCDFL24G

The LCDFL24G is a slimline 24" LCD monitor that supports D-Sub (VGA) and HDMI inputs at 1920 x 1080 resolution. Supports flexible wall mounting via VESA points on rear of monitor.

Product features:
• Full HD 1080p (1920 x 1080) video resolution
• Horizontal facing input ports; 1 x HDMI input & 1 x VGA input
• 178° (H) & 178°(V) extra wide viewing angles
• 8ms response time for smooth operation
• 1000:1 contrast ratio
• 1 x audio output
• Low energy consumption (<0.3W standby)
• External 19VDC power supply
• VESA 100x100 mountable

*NOTE: If using this product with the Vertical Security Cabinet (SECCAB), you will require a HDMI Right-Angle Adapter (HDMIBMTF) in order to mount it properly.

Suggested Products

Suggested product image
HDMI Right-Angle Adapter (Male to Female)
HDMIBMTF
Suggested product image
Vertical Wall Mount Security Cabinet
SECCAB

Links and Downloads

Flashview 22" & 24" Monitor Datasheet (PDF) 0.62 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Display
Screen Size
24 inch
Resolution
1920 x 1080
Aspect Ratio
16:9
Display Panel
IPS
Brightness
250cd/m²
Contrast Ratio
1000:1
Display Colours
16.7M
Viewing Angles
178°(H) / 178°(V)
Response Time
8ms
Refresh Rate
60Hz
Signals
Video Inputs
1 x HDMI / 1 x VGA
Speakers
N/A
Input Orientation
Horizontal
Power
Power Input
19VDC, 1.31A
Power Consumption
23W (standard) / ≤0.3W (standby)
General
Tilt
N/A
VESA Interface
100 x 100mm
Colour
Black
Operating Temperature
0°C~40°C, <85%RH
Brand
Flashview

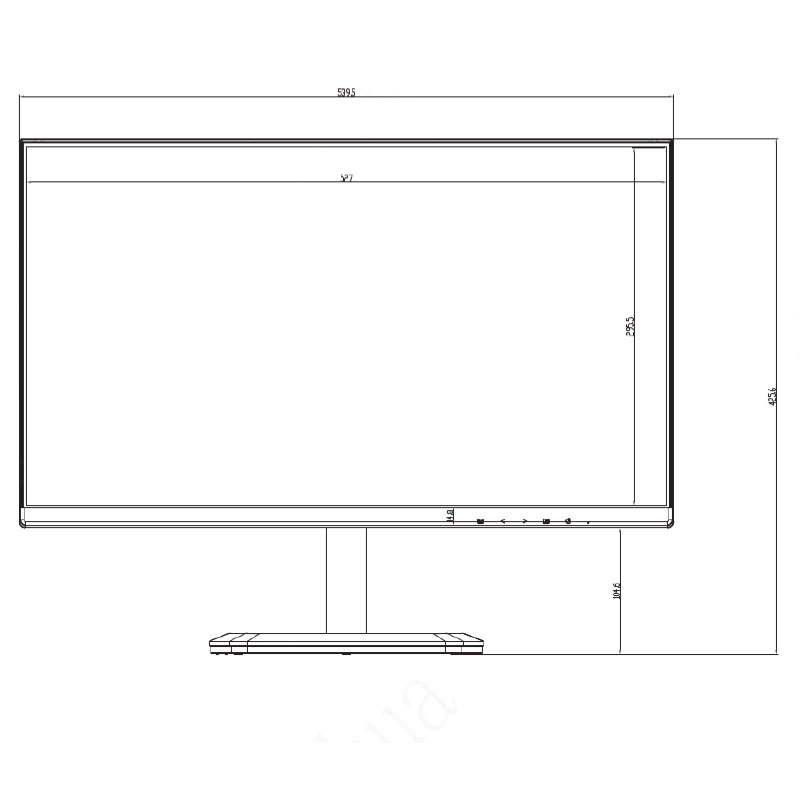

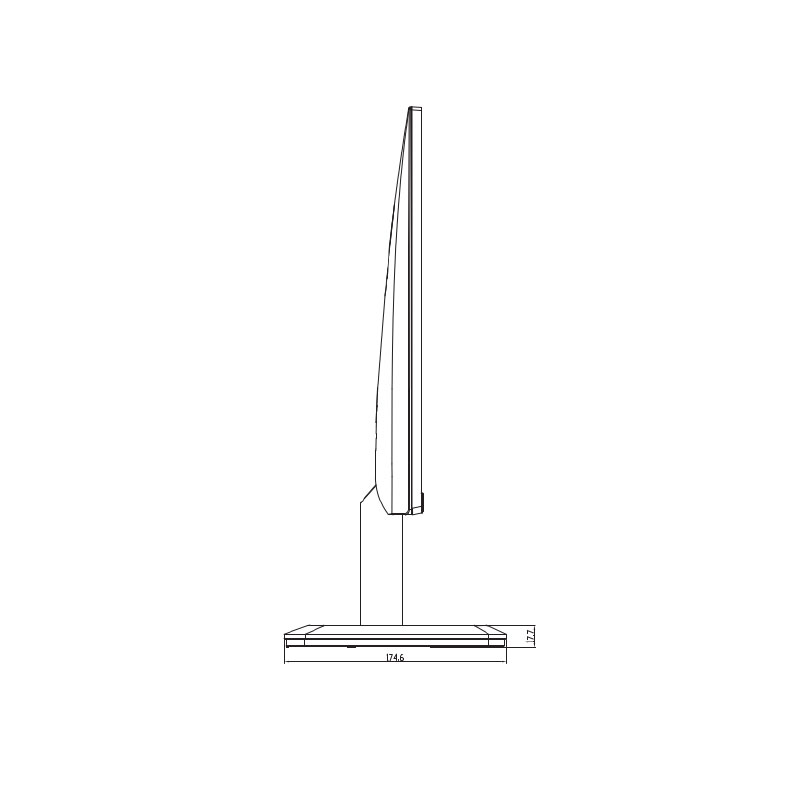

Dimensions (with stand)
540 x 175 x 426mm (W/D/H)
Dimensions (without stand)
540 x 39 x 321mm (W/D/H)
Weight
2.7kg
Other
Video Outputs
1 x Audio
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
490 mm
Height
600 mm
Depth
120 mm
Weight
5.00 kg
