22" Flashview 1080p LED LCD Surveillance Monitor (VA)

SKU LCDFL22K

22" Flashview 1080p LED LCD Surveillance Monitor (VA)

SKU LCDFL22K

This product is Coming Soon. Please contact us for more information.

The LCDFL22K is a slimline 22" LCD monitor that supports D-Sub (VGA) and HDMI inputs at 1920 x 1080 resolution. Supports flexible wall mounting via VESA points on rear of monitor.

Product features:
• Full HD 1080p (1920 x 1080) video resolution
• Vertical input ports; 1 x HDMI input & 1 x VGA input
• 2 x Built-in 1W stereo monitor speakers
• 178° (H) & 178°(V) extra wide viewing angles
• 5ms response time for smooth operation
• 3000:1 contrast ratio
• Low energy consumption (≤0.5W standby/<22W standard)
• External 12VDC power supply
• 2x VESA 75mm mountable

Suggested Products

10m 4K HDMI Cable
HDMI-10C

HDMI Extender Over CAT6 (50m)
HDMI-EXT50M

2-way 4K Ultra HD HDMI Splitter
HDMI-SPL2P3

Vertical Wall Mount Security Cabinet
SECCAB

Links and Downloads

Flashview LCD-K Series Datasheet (PDF) 0.63 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Display

Screen Size

22 inch

Resolution

1920 x 1080

Aspect Ratio

16:9

Display Panel

Brightness

250nits

Contrast Ratio

3000:1

Display Colours

99% sRGB, 85% NTSC, 85% DCI-P3, 85% Adobe RGB

Viewing Angles

178°(H) / 178°(V)

Response Time

5ms

Refresh Rate

100Hz

Signals

Video Inputs

1 x HDMI / 1 x VGA

Speakers

2 x 1W Speakers

Input Orientation

Vertical

Power

Power Input

12VDC

Power Consumption

22W (standard) / ≤0.5W (standby)

General

Tilt

Yes

VESA Interface

2 x 75mm

Colour

Black

Operating Temperature

0°C~40°C, <85%RH

Brand

Flashview

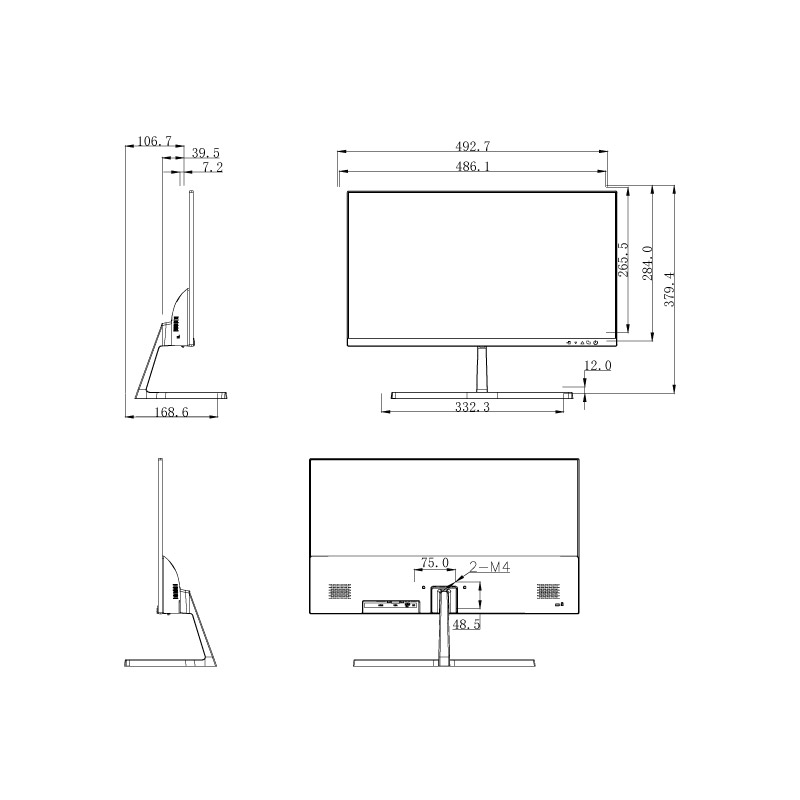

Dimensions (with stand)

493mm x 379mm x 39.5mm

Dimensions (without stand)

493mm x 284mm x 39.5mm

Weight

2.18kg

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

554 mm

Height

120 mm

Depth

353 mm

Weight

3.74 kg
