22" Flashview 1080p LED LCD Surveillance Monitor (VA)

Brand logo
SKU LCDFL22G2
Brand logo

22" Flashview 1080p LED LCD Surveillance Monitor (VA)

SKU LCDFL22G2

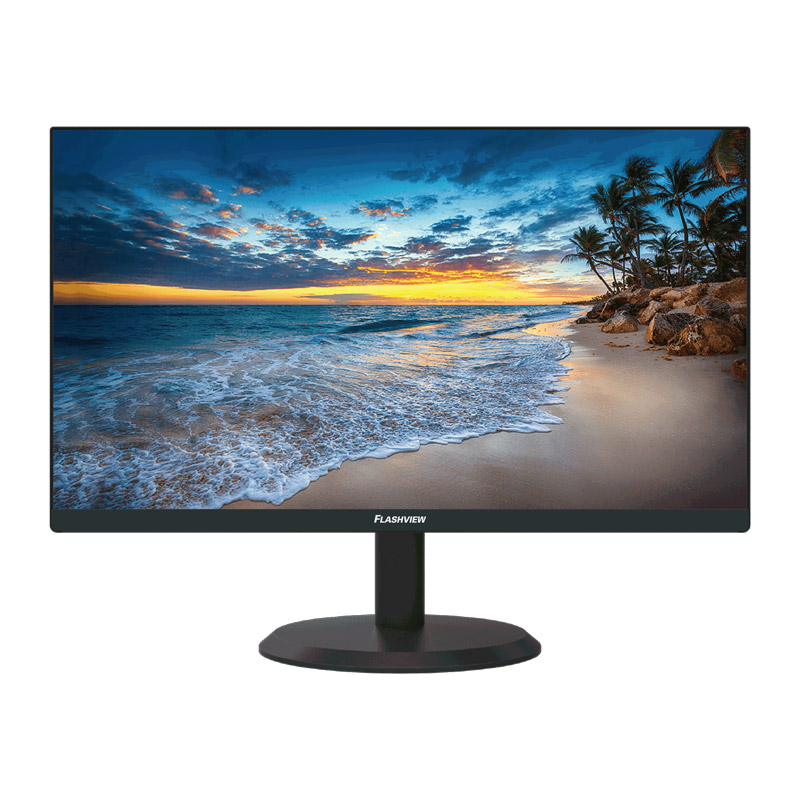

The LCDFL22G2 is a slimline 22" LCD monitor that supports D-Sub (VGA) and HDMI inputs at 1920 x 1080 resolution. Supports flexible wall mounting via VESA points on rear of monitor.

Product features:
• Full HD 1080p (1920 x 1080) video resolution
• Vertical input ports; 1 x HDMI input / 1 x VGA input / 1 x Audio-in
• 2 x Built-in 1.5W stereo monitor speakers
• 178° (H) & 178°(V) extra wide viewing angles
• 6.5ms response time for smooth operation
• 3000:1 contrast ratio
• Low energy consumption (≤0.5W standby/<24W standard)
• External 12VDC 2A power supply
• VESA 75mm mountable

Links and Downloads

LCDFLG2_Series.pdf 3.06 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Display
Screen Size
22 inch
Resolution
1920 x 1080
Aspect Ratio
16:9
Display Panel
VA
Brightness
250nits
Contrast Ratio
3000:1
Display Colours
16.7M (8 Bit)
Viewing Angles
178°(H) / 178°(V)
Response Time
6.5ms
Refresh Rate
60Hz
Signals
Video Inputs
1 x HDMI / 1 x VGA / 1 x Audio-in
Speakers
2 x 1.5W Speakers
Input Orientation
Vertical
Power
Power Input
12VDC 2A
Power Consumption
24W (standard) / ≤0.5W (standby)
General
Tilt
Yes
VESA Interface
75mm
Colour
Black
Operating Temperature
0°C~40°C, <85%RH
Brand
Flashview

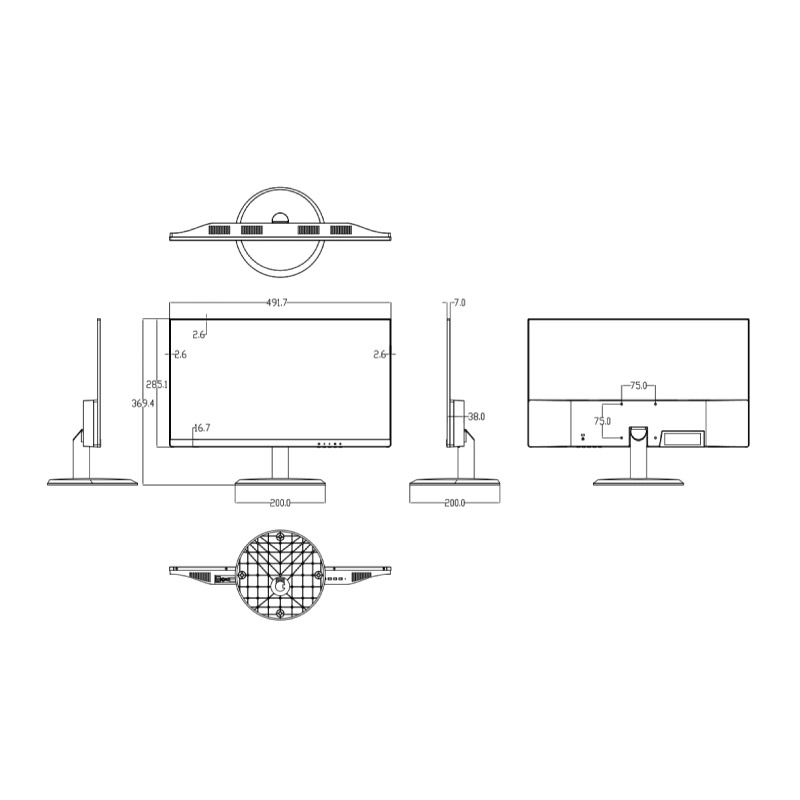

Dimensions (with stand)
491.7mm x 200mm x 369.4mm
Dimensions (without stand)
491.7mm x 38mm x 285.1mm
Weight
2.1kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
140 mm
Height
150 mm
Depth
70 mm
Weight
4.00 kg
