3-Monitor Pole Desk Mount Bracket

Brand logo
SKU LCDBKT-B3A
Brand logo

3-Monitor Pole Desk Mount Bracket

SKU LCDBKT-B3A

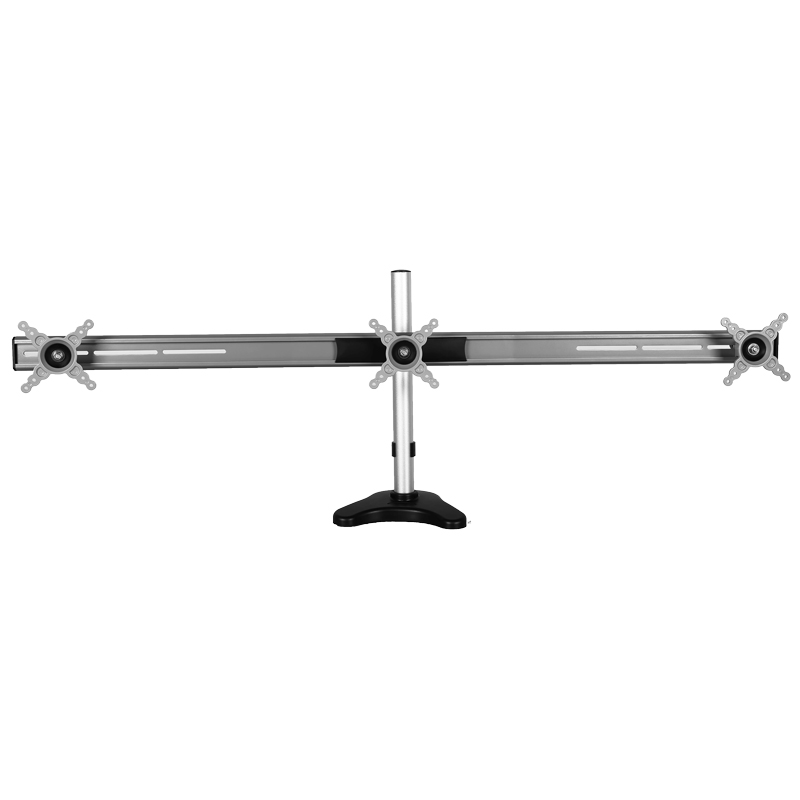

The LCDBKT-B3A is a full aluminium pole bracket, designed for mounting VESA-compatible monitors up to 24". These brackets are perfect for desk monitor use, with adjustable heights, tilt & swivel angles.

Product features:
• Supports three 10”~24” monitors
• 100/75 VESA support
• Up to 8kg load capacity
• -5~15° tilt and -5~15° swivel adjustment
• Adjustable pole height up to 620mm
• Aluminium construction with silver colour

Links and Downloads

LCDBKT-BxA Series Monitor Brackets Datasheet (PDF) 0.39 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Installation Type
Clamp, Grommet
Load Capacity
8kg
Rotation
-45°~45° (Horizontal), 360° (Screen)
Swivel Angle
-8°~15°
Screen Size
10~24''
Tilt Angle
-8°~15°
USB Ports
-
Environmental
Desk Thickness
Material
Aluminium
Max. Extension
315mm
Max. Height
620mm
Max. Monitors
3
VESA Mount
100 / 75
Distance from Mounting Surface
Dimensions
1280 x 437 x 135mm
Weight
3.46kg
Other
Desk Thickness (Clamp)
15 ~ 55mm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
220 mm
Height
175 mm
Depth
1,340 mm
Weight
5.67 kg
