1-Monitor Arm Desk Mount Bracket

Brand logo
SKU LCDBKT-B1M
Brand logo

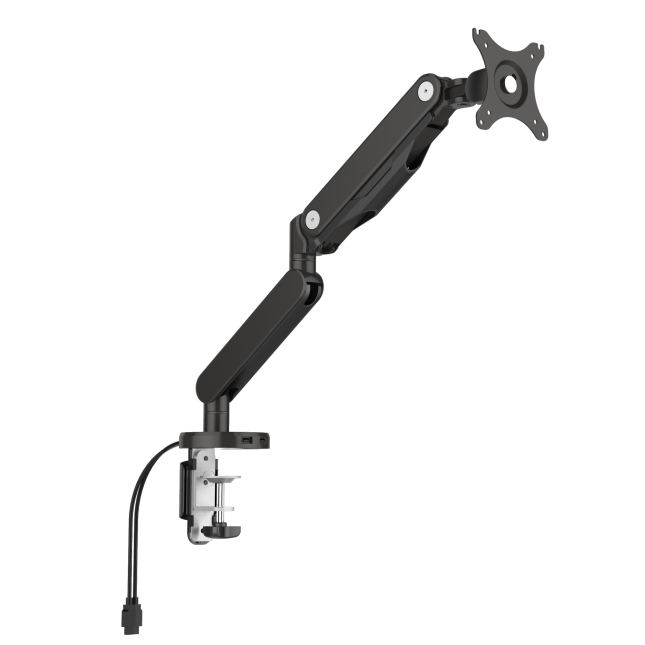

1-Monitor Arm Desk Mount Bracket

SKU LCDBKT-B1M

Available by special order only. Please contact us for lead times.

The LCDBKT-B1M is a flexible monitor arm bracket that has 360° rotation and a wide tilt/swivel angle adjustment, making it perfect for a wide variety of desk setups. Includes convenient USB passthrough ports for keyboard, mouse or flash storage.

Product features:
• Supports one 10”~30” monitor
• 100/75 VESA support
• Up to 9kg load capacity
• -85~15° tilt and -85~15° swivel adjustment
• Full 360° rotation adjustment
• Two USB passthrough ports for convenience
• Aluminium construction with black colour

Links and Downloads

LCDBKT-BxM Series Monitor Brackets Datasheet (PDF) 0.31 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Installation Type
Clamp, Grommet
Load Capacity
9kg
Rotation
360°
Swivel Angle
-85~15°
Screen Size
10~30''
Tilt Angle
-85~15°
USB Ports
2 x USB ports
Environmental
Desk Thickness
20 ~ 120mm (clamp)
Material
Aluminium

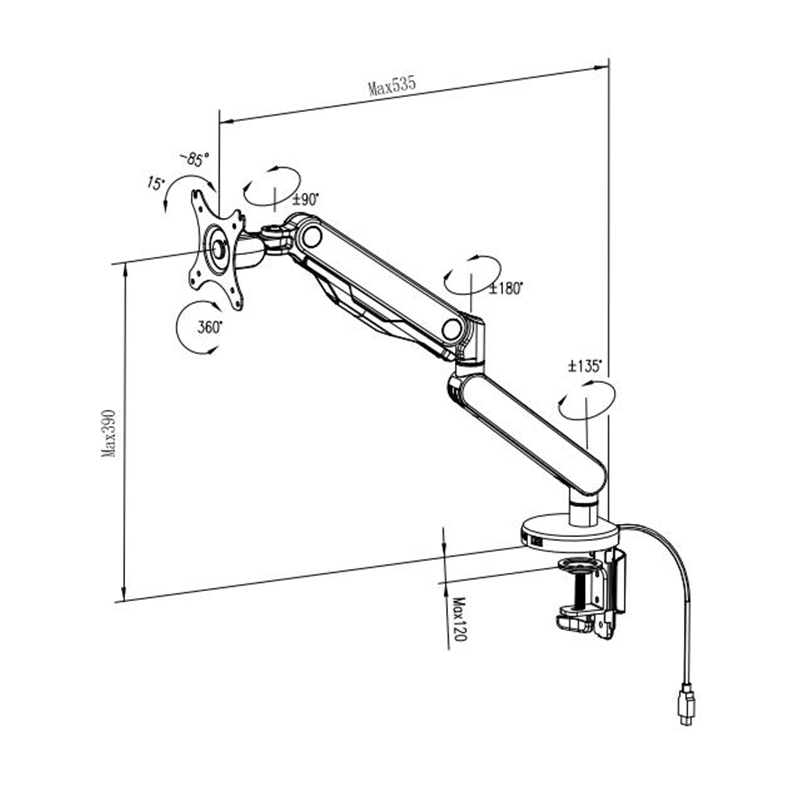

Max. Extension
535mm
Max. Height
390mm
Max. Monitors
1
VESA Mount
75 / 100
Distance from Mounting Surface
Dimensions
Weight
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
407 mm
Height
122 mm
Depth
292 mm
Weight
3.30 kg
