LCDBKT-A50T2: 37-70" LCD Wall Mount Bracket

Our people, our products: Dedicated to winning you more business™

37-70" LCD Wall Mount Bracket

SKU LCDBKT-A50T2

37-70" LCD Wall Mount Bracket

SKU LCDBKT-A50T2

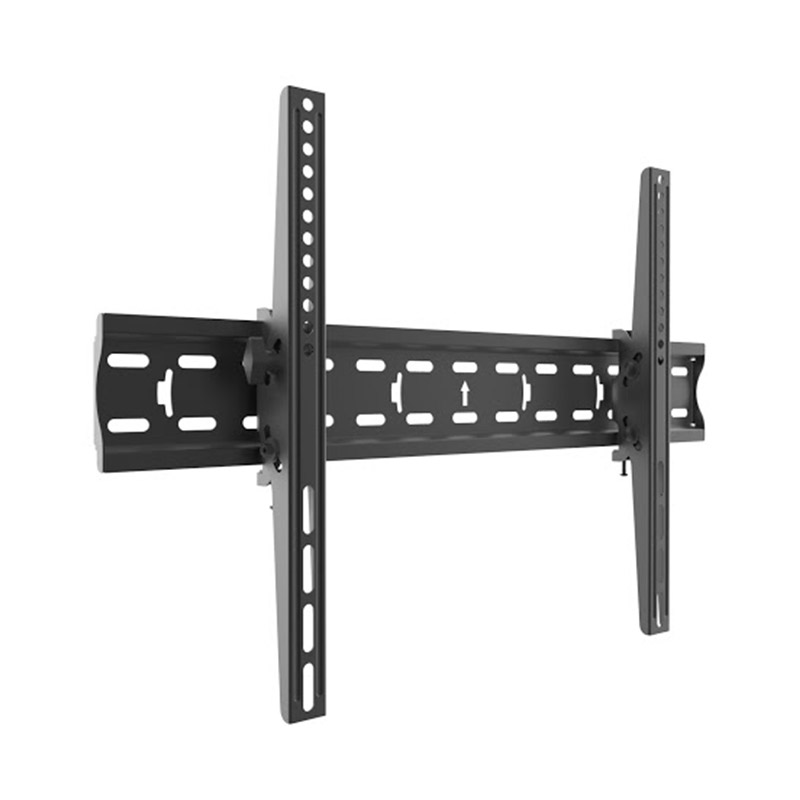

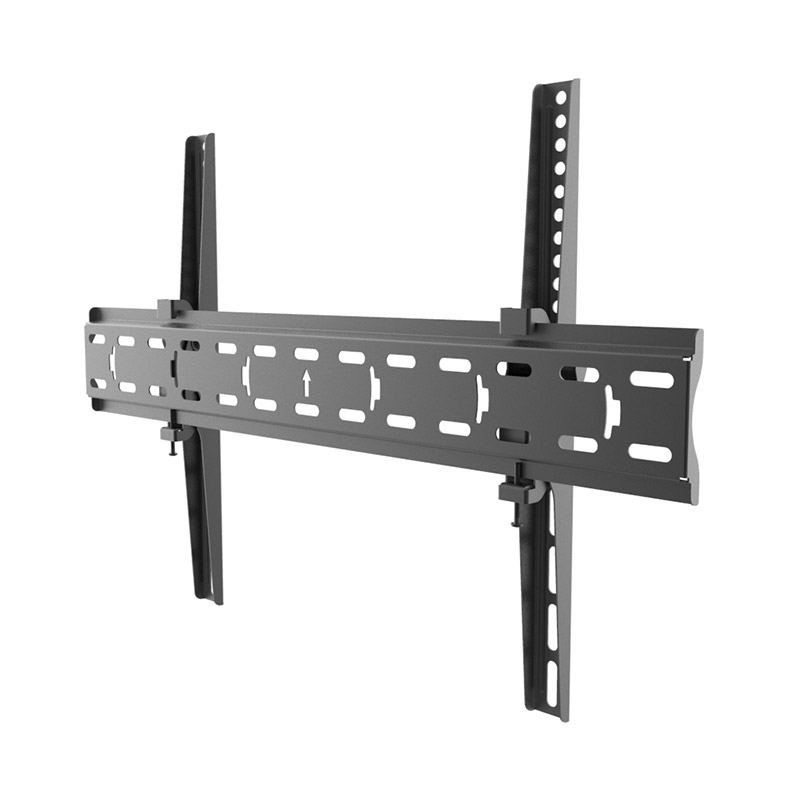

The LCDBKT-A50T2 is an LCD wall mount bracket for flat screen monitors and televisions up to 50kg. Includes screws & wall plugs for fitting to the wall, screws & washers for mounting the monitor, and all other required adjustment tools and bracket accessories.

Product features:
• Support for screen sizes 37" to 70"
• VESA support for any size up to 600x400
• Up to 50kg load capacity
• ±12° tilt angle adjustable
• Satin black finish aluminium
• 55mm minimum distance from wall

Links and Downloads

CE/ RCM Certificate

RoHS Certificate

Specifications

General

Installation Type

Wall Mount

Load Capacity

50kg

Rotation

N/A

Swivel Angle

N/A

Screen Size

37~70''

Tilt Angle

±12°

USB Ports

N/A

Environmental

Desk Thickness

N/A

Material

SPCC Steel

Max. Extension

N/A

Max. Height

N/A

Max. Monitors

1

VESA Mount

600x400

Distance from Mounting Surface

43mm

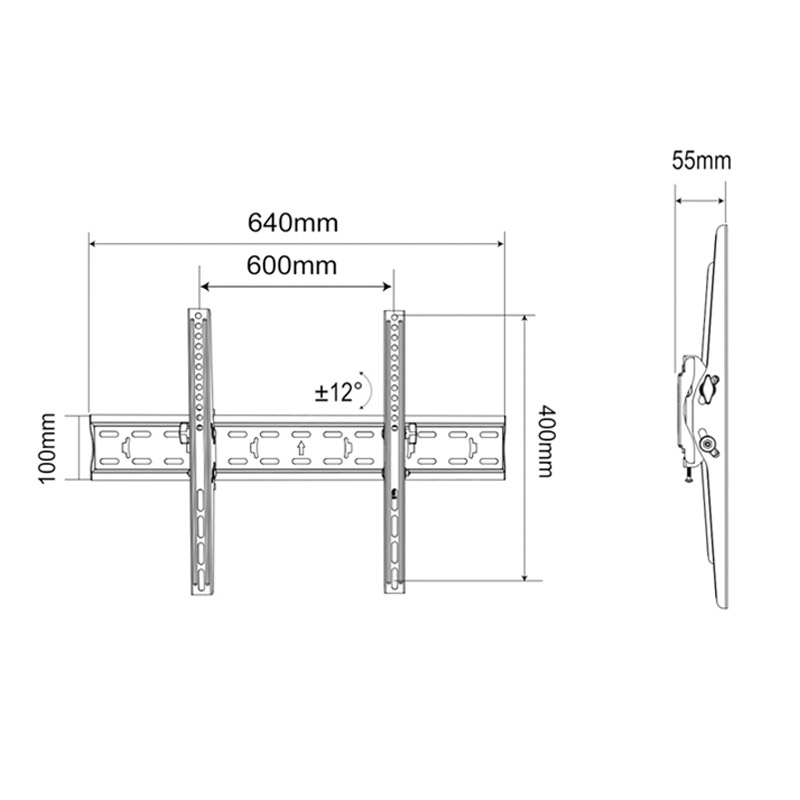

Dimensions

640 x 400 x 55mm

Weight

2.25kg

Warranty (Years)

1

Shipping Weight and Dimensions

Includes product packaging

Width

175 mm

Height

50 mm

Depth

180 mm

Weight

2.25 kg
