Reader Multi-Tenant Intercom Module

SKU INTIPVDSR

Reader Multi-Tenant Intercom Module

SKU INTIPVDSR

Available by special order only. Please contact us for lead times.

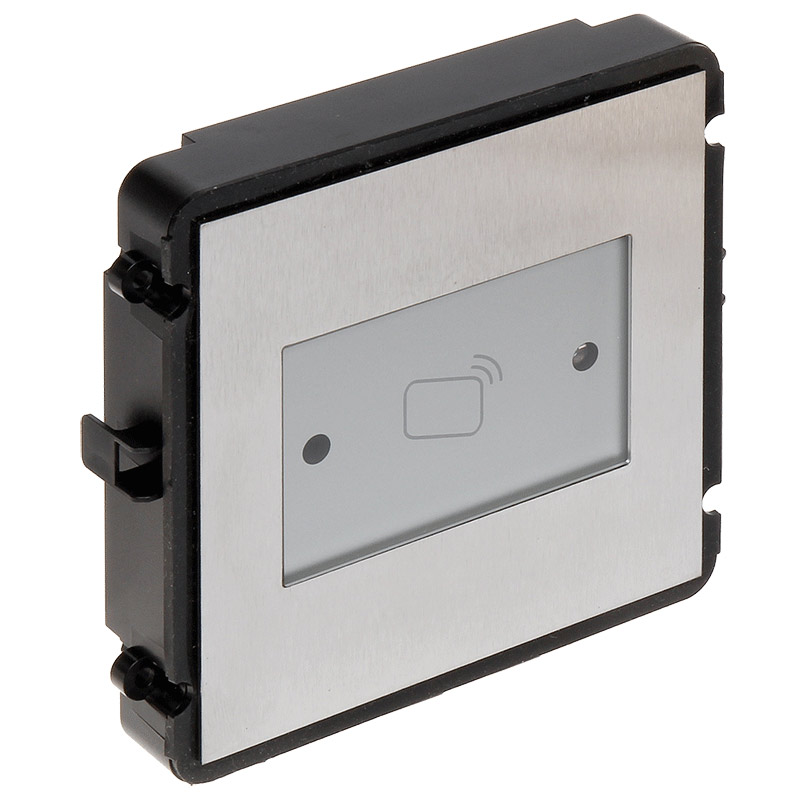

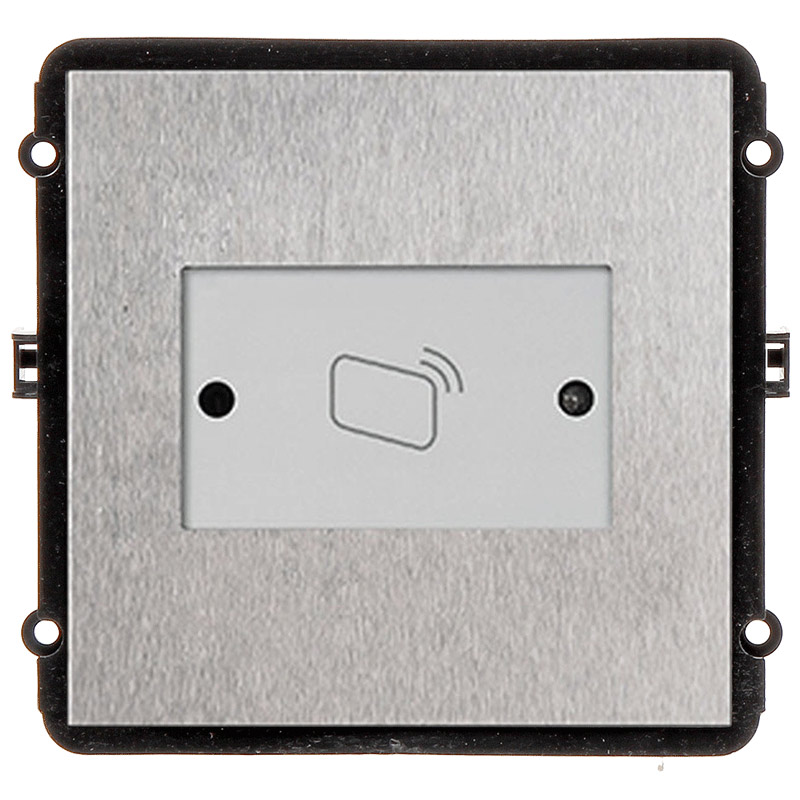

The INTIPVDSR is a reader door station module for the VIP Vision Multi-Tenant Intercom Series. This compact unit features a robust stainless steel front pane with an RFID card reader to scan registered cards/tags for quick, secure access.

Product features:
• RFID reader with 1m range
• Module installed via surface or flush mount
• IP54/IK07 weather/vandal resistant stainless steel front plate
• Requires INTIPVDSC camera module for power

Suggested Products

13.56MHz NFC Thin Proximity Cards (10 Pack)
ACKEY103

13.56MHz NFC Proximity Keyfobs (NTAG215)
ACKEY104

Camera Multi-Tenant Intercom Module
INTIPVDSC

Links and Downloads

VIP Vision Multi-Tenant Series Intercoms Datasheet (PDF) 0.96 MB

Multi-Tenant Series Modules Manual (PDF) 1.43 MB

VIP Vision Intercom Product Guide 2019 (PDF) 6.53 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Body Approaching

Card Support

13.56MHz RFID (NFC) card reader

Construction

Stainless steel front plate

Dimensions

118 x 112 x 25mm

Ingress Protection

IP54

Operating Temperature

-40 ~ +60°C

Power Consumption

<0.45W

Power Input

Tamper Detection

N/A

Vandal Resistant

IK07

Weight

0.19kg

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

150 mm

Height

150 mm

Depth

75 mm

Weight

0.20 kg
