Camera Multi-Tenant Intercom Module

Brand logo
SKU INTIPVDSC
Brand logo

Camera Multi-Tenant Intercom Module

SKU INTIPVDSC

Stock may be limited. Please contact us for availability or for an alternative item.

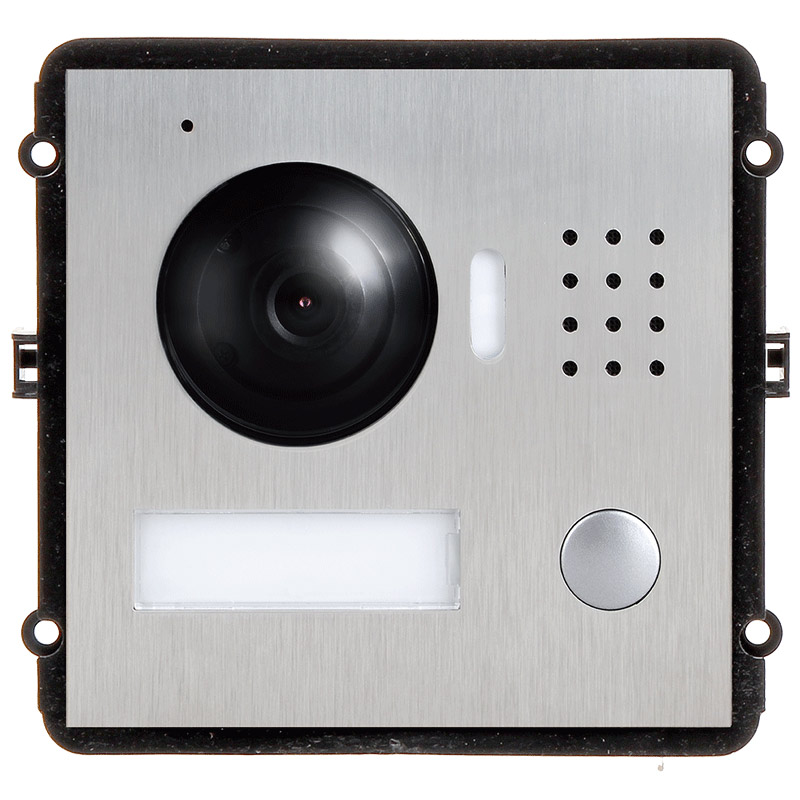

The INTIPVDSC is the master camera IP door station module for the VIP Vision Multi-Tenant Intercom Series. Up to 20x door stations and 100x indoor monitors can be installed in a single system making it ideal for small apartment blocks and multiple building dwellings.

This compact unit features a robust stainless steel front panel, simple single button operation and a 1.3 megapixel camera that operates in low light conditions. It is IP54/IP07 weather/vandal resistant and is compatible with the entire VIP Vision Multi-Tenant IP Intercom Series and supporting accessories including door strikes and networking switches.

Product features:
• 1 x Mechanical doorbell button
• Adjustable 1.3MP camera with 2.8mm lens for video recording/chat
• Built-in microphone and speakers for two-way talk
• Tamper switch to deter vandalism
• Support for door strikes & electical locks
• Module installed via surface or flush mount
• IP54/IK07 weather/vandal resistant stainless steel front plate
• 12/24VDC, <10W

Suggested Products

Suggested product image
Door Unlock Expander Module
INTIPDM
Suggested product image
Flush Mount Box - 2 Modules
INTIPVDSFB2
Suggested product image
Flush Mount Box - 3 Modules
INTIPVDSFB3
Suggested product image
Front Panel - 2 Modules
INTIPVDSFP2
Suggested product image
Front Panel - 3 Modules
INTIPVDSFP3
Suggested product image
Flush Mount Box & Front Panel - 9 Modules
INTIPVDSFPFB9
Suggested product image
Surface Mount Box - 2 Modules
INTIPVDSSB2
Suggested product image
Surface Mount Box - 3 Modules
INTIPVDSSB3

Links and Downloads

VIP Vision Multi-Tenant Series Intercoms Datasheet (PDF) 0.96 MB
Multi-Tenant Series Modules Manual (PDF) 1.43 MB
Intercom Config Tool 21.38 MB
Intercom_Firmware_TypeC_20171023 12.20 MB
VIP Vision Intercom Product Guide 2019 (PDF) 6.53 MB
SIP Intercom Firmware Upgrade Guide
CE/ RCM Certificate
RoHS Certificate

Specifications

Audio Input
Omni-directional Microphone
Audio Output
Built-in Loudspeaker
Bidirectional Talk Support
Yes
Card Support
N/A
Construction
Stainless steel front plate
Dimensions
118 x 112 x 42mm
Ethernet
10M/100Mbps Self-adaptive
Image Sensor
1.0 Megapixel CMOS
Ingress Protection
IP54
Main Processor
Embedded Microprocessor
Network Protocol
TCP/IP
Operating System
Embedded Linux OS
Operating Temperature
-40 ~ +60°C
Operational Input
Single Hard Button
Power Consumption
<10W
Power Input
12/24VDC
Tamper Detection
Yes
Vandal Resistant
IK07
Video Compression
H.264
Weight
0.30kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
150 mm
Height
150 mm
Depth
75 mm
Weight
0.40 kg
