3 Button Multi-Tenant Intercom Module

SKU INTIPVDSB

3 Button Multi-Tenant Intercom Module

SKU INTIPVDSB

Available by special order only. Please contact us for lead times.

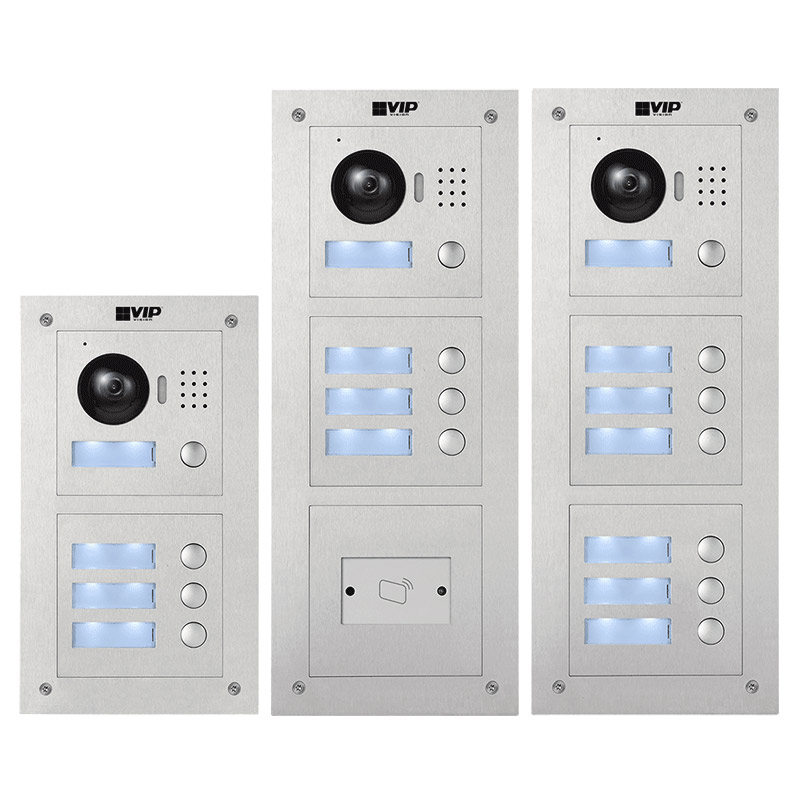

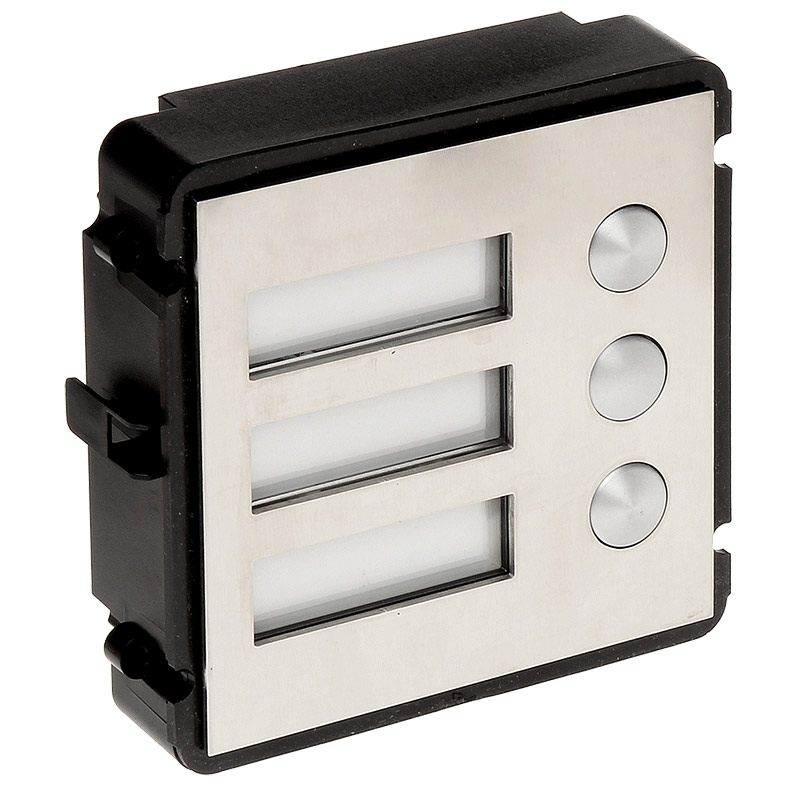

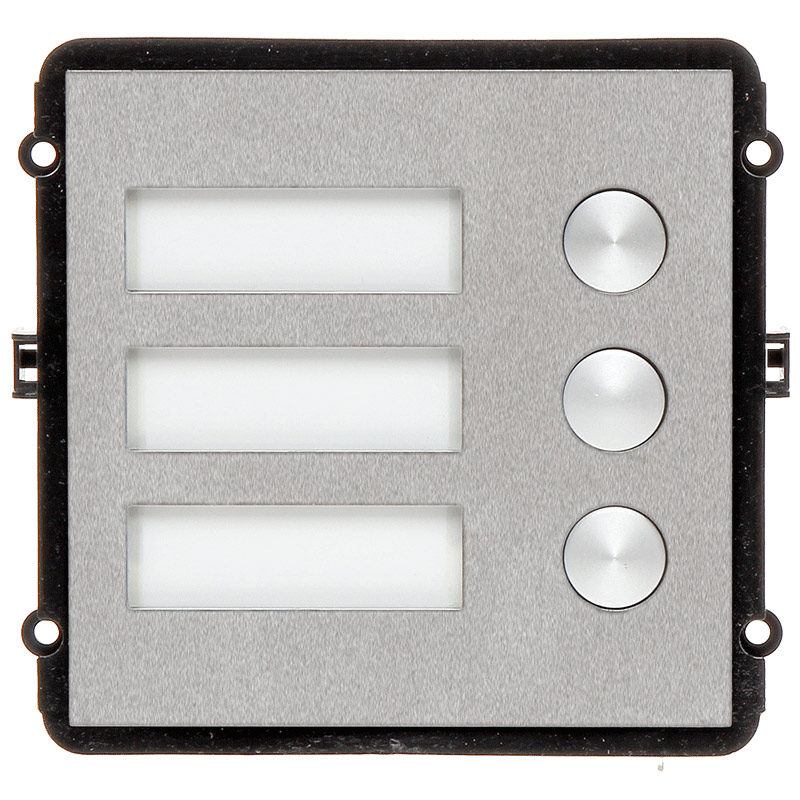

The INTIPVDSB is a 3 button IP door station module for the VIP Vision Multi-Tenant Intercom Series. This compact unit features a robust stainless steel front pane, with 3 doorbell buttons to call up to 3 separate residences.

Product features:
• 3 x Mechanical button
• Module installed via surface or flush mount
• IP54/IK07 weather/vandal resistant stainless steel front plate
• Requires INTIPVDSC camera module for power

Suggested Products

1 Button Multi-Tenant Intercom Module
INTIPVDSB1

5 Button Multi-Tenant Intercom Module
INTIPVDSB5

Camera Multi-Tenant Intercom Module
INTIPVDSC

Links and Downloads

VIP Vision Multi-Tenant Series Intercoms Datasheet (PDF) 0.96 MB

Multi-Tenant Series Modules Manual (PDF) 1.43 MB

VIP Vision Intercom Product Guide 2019 (PDF) 6.53 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Card Support

N/A

Construction

Stainless steel front plate

Dimensions

118 x 112 x 35mm

Ingress Protection

IP54

Operating Temperature

-40 ~ +60°C

Operational Input

3x Mechanical Button

Power Consumption

<0.45W

Power Input

Powered by INTIPVDSC

Tamper Detection

N/A

Vandal Resistant

IK07

Weight

0.21kg

Warranty (Years)

4

Shipping Weight and Dimensions

Includes product packaging

Width

150 mm

Height

150 mm

Depth

75 mm

Weight

0.30 kg
