2-Wire Residential IP Intercom Door Station

Brand logo
SKU INTIPRDSVW2W
Brand logo

2-Wire Residential IP Intercom Door Station

SKU INTIPRDSVW2W

Stock may be limited. Please contact us for availability or for an alternative item.

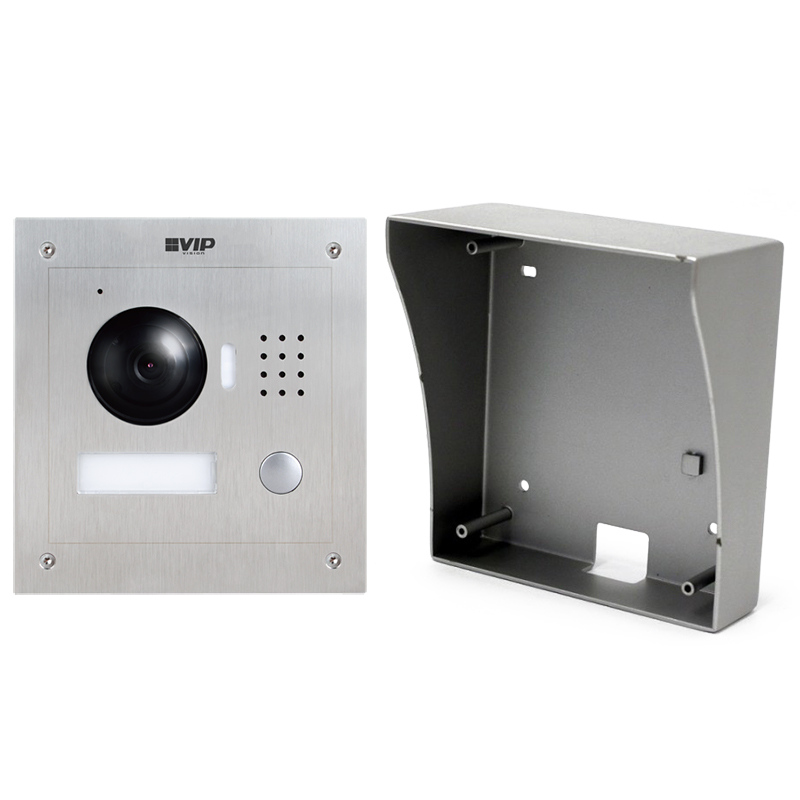

A stylish and heavy duty 2-wire intercom door station. It features an adjustable camera mount, to ensure the best possible result. It offers weather and vandal resistance can be surface or flush mounted with available accessories.

Product features:
• 1/1.3’’ 1.3MP 2.8mm lens camera with 120° FOV
• Adjustable camera angle via internal joystick
• Built-in microphone and speaker for 2-way talk
• Connect with intercom monitor(s) via Ethernet
• Door control, alarm and RS485 input/output relays
• Supports network and 24VDC power over 2-wire bus
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP07/IK54 stainless steel body

Suggested Products

Suggested product image
2-Wire Residential IP Intercom Monitor
INTIPMONFB2W
Suggested product image
2-Wire Residential IP Intercom Network Controller
INTIPNC2W
Suggested product image
Flush Mount Box
INTIPRDSVW-FMA

Links and Downloads

VIP Vision 2-Wire Series Intercoms Datasheet (PDF) 0.66 MB
INTIP-2W Series Quick Installation Guide (PDF) 1.50 MB
Intercom Config Tool 21.38 MB
Intercom_Firmware_TypeD_20171025 12.19 MB
VIP Vision Intercom Product Guide 2019 (PDF) 6.53 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Microprocessor
Button Illumination
Card Support
N/A
Tamper Detection
Yes
Internal MicroSD Slot
N/A
Max. Additional Door Stations
20
Max. Indoor Monitors
10
App Connection
QR Code (requires network controller)
Camera
Camera System
1.3’’ 1.3 Megapixel CMOS with 2.8mm lens - Angle adjustable (Diagonal FoV: 120°)
Low-Light Application
N/A
Input / Output
6 x alarm input / 1 x alarm output / 2-wire ports
Audio / 2-Way Talk
Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Ethernet / Network
10M/100Mbps Self-adaptive
Environmental
Vandal Resistant
IK07
Ingress Protection
IP54
Construction
Stainless steel front plate
Installation Options
Includes surface mount rain shield/bracket
Power Input
24VDC
Power Consumption
Standby < 1W / Operation < 7W
Weight
0.80kg
Dimensions
130 x 140 x 32mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
315 mm
Height
275 mm
Depth
50 mm
Weight
0.74 kg
