Residential IP Intercom Door Station

Brand logo
SKU INTIPRDSJ
Brand logo

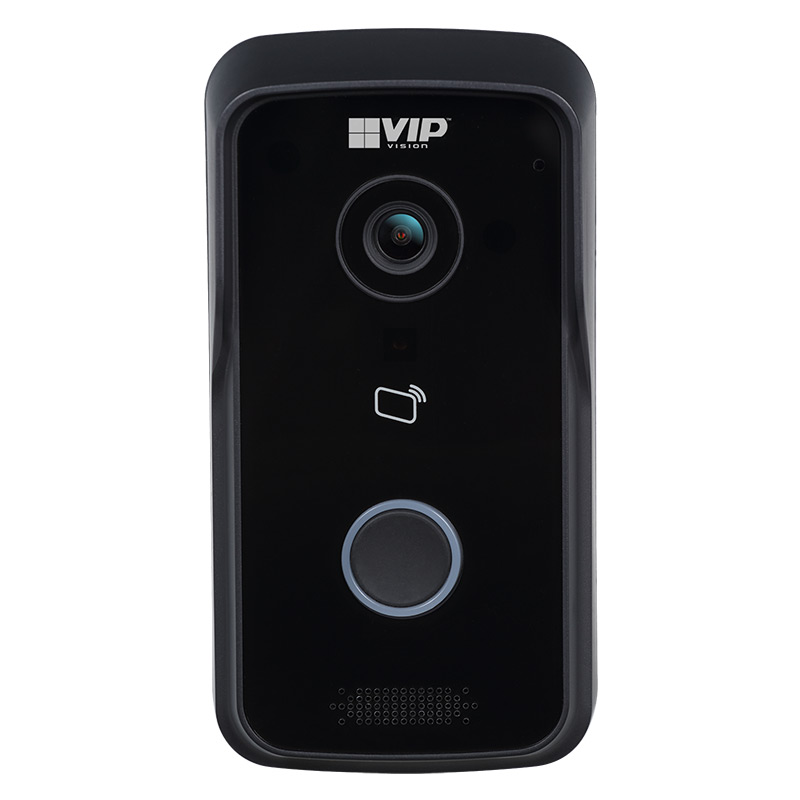

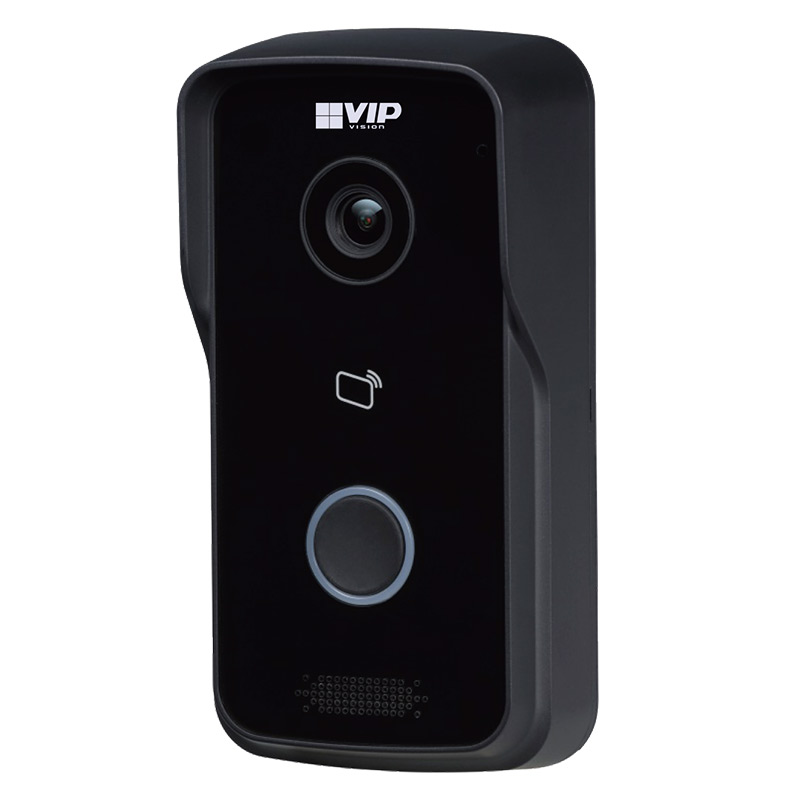

Residential IP Intercom Door Station

SKU INTIPRDSJ

The INTIPRDSJ is a single channel video intercom solution ideal for homes and single-premises buildings. It can be operated via a single backlit button or via NFC-capable card, with voice prompts to inform the user about door lock, call & resident status. Also features door sensor and door strike integration, remote unlock via smartphone and visitor audio/video messaging functions.

Product features:
• 1/4’’ 1.0MP camera with 122° FOV
• Built-in microphone and speaker for 2-way talk
• Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
• Connect with intercom monitor(s) via Ethernet
• Door control, alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Power over Ethernet (12VDC, 802.3af)
• IP65 rated weather resistant matte plastic body (front plate)

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.

*This door station is compatible with 13.56MHz NFC cards only.

Suggested Products

Suggested product image
13.56MHz NFC Thin Proximity Cards (10 Pack)
ACKEY103
Suggested product image
13.56MHz NFC Proximity Keyfobs (NTAG215)
ACKEY104
Suggested product image
Residential Series IP Intercom Monitor (White)
INTIPMONGW
Suggested product image
4-port Unmanaged Fast PoE Ethernet Switch
VSPOE-SW4H

Links and Downloads

VIP Vision Residential Door Station INTIPRDSJ Datasheet (PDF) 0.71 MB
VIP Vision SIP Intercom Installation Manual (SIP 4.5 Firmware) - Q3 2022 (PDF) 4.94 MB
(GEN.2) SIP_Intercom_Firmware_TypeF_20221129 29.08 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Microprocessor
Button Illumination
Backlit Interface
Card Support
Built-in NFC Card Reader, Supports up to 10,000 NFC cards
Tamper Detection
Yes
Internal MicroSD Slot
No
Max. Additional Door Stations
20
Max. Indoor Monitors
10
App Connection
QR Code
Camera
Camera System
1/4" 1.0 Megapixel CMOS (Diagonal FoV: 122°)
Low-Light Application
Day/Night ICR
Input / Output
1 x Alarm Input / 1 x Alarm Output / 1 x RS485
Audio / 2-Way Talk
Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Ethernet / Network
10M/100Mbps Self-adaptive / TCP/IP protocol
Environmental
Vandal Resistant
N/A
Ingress Protection
IP65 (Front plate)
Construction
Matte Plastic
Installation Options
Surface Mount
Power Input
12VDC 1A, PoE (802.3af)
Power Consumption
<5W
Weight
0.32kg

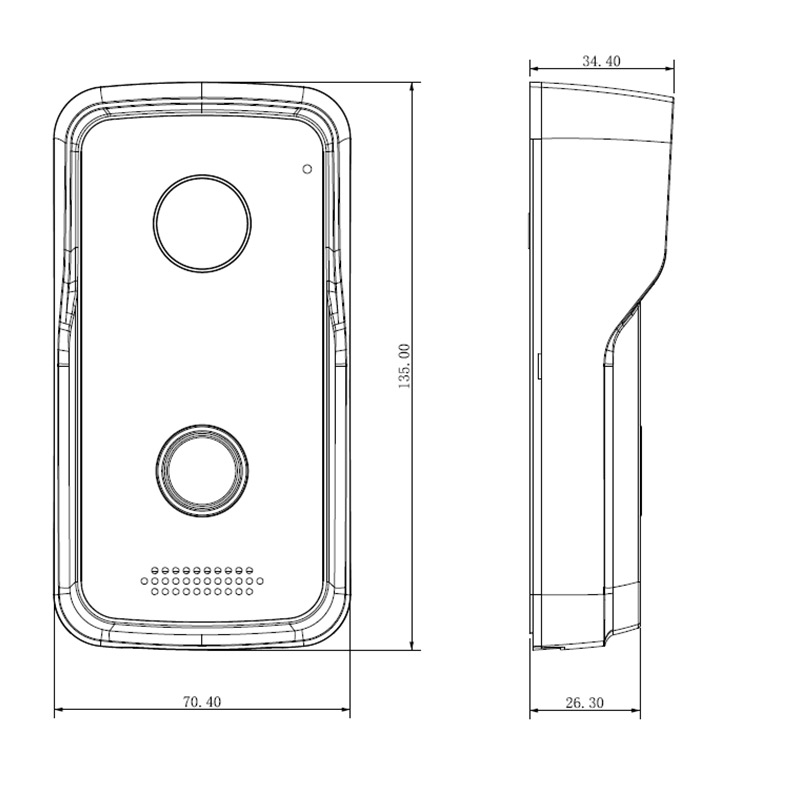

Dimensions
71 x 35 x 135mm
Other
Keypad
N/A
Series
J Series
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
71 mm
Height
135 mm
Depth
35 mm
Weight
0.33 kg
