Residential PoE IP Intercom Door Station

Brand logo
SKU INTIPRDSG2
Brand logo

Residential PoE IP Intercom Door Station

SKU INTIPRDSG2

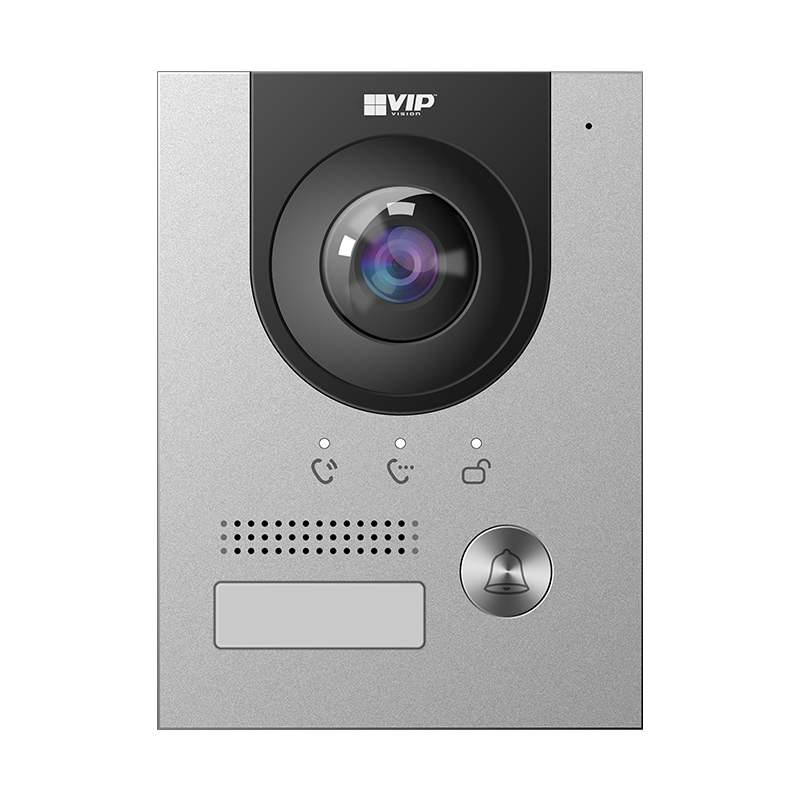

The INTIPRDSG2 is a single channel video intercom solution ideal for homes and single-premises buildings. This door station features a 2.0MP camera, all in a stylish aluminium weather and vandal resistant body.

Product features:
• 1/2.5’’ 2.0MP 1.9mm lens camera with 169° FOV
• Built-in microphone and speaker for 2-way talk
• Connect with intercom monitor(s) via Ethernet
• Alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP55/IK07 aluminium body
• Power via 48VDC or Power over Ethernet (802.3af)
• Flush and surface mount installation options

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.

Suggested Products

Suggested product image
Flush Mount Box for INTIPRDSG
INTIPRDSGFB
Suggested product image
Surface Mount Box for INTIPRDSG
INTIPRDSGSB2

Links and Downloads

INTIPRDSG2 DATASHEET (PDF).pdf 0.63 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Microprocessor
Button Illumination
None
Card Support
N/A
Tamper Detection
Yes
Internal MicroSD Slot
Yes, up to 64GB
Max. Additional Door Stations
20
Max. Indoor Monitors
10
App Connection
QR Code
Camera
Camera System
1/2.5’’, 2.0 Megapixel CMOS camera with 1.9mm lens (Horizontal FoV: 169°), WDR
Low-Light Application
Infrared
Input / Output
1 x alarm input / 1 x alarm output / 1 x RS485
Audio / 2-Way Talk
Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Ethernet / Network
N/A
Environmental
Vandal Resistant
IK07
Ingress Protection
IP55
Construction
Aluminium
Installation Options
Supports surface box and flush box mount
Power Input
48VDC 1A / PoE (802.3af)
Power Consumption
<12W
Weight
0.35kg

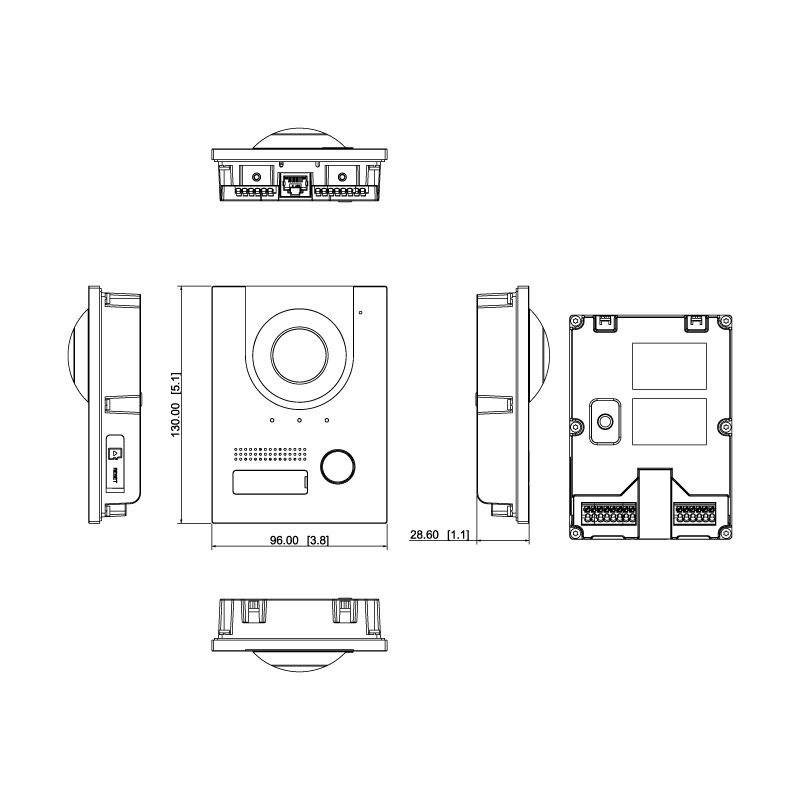

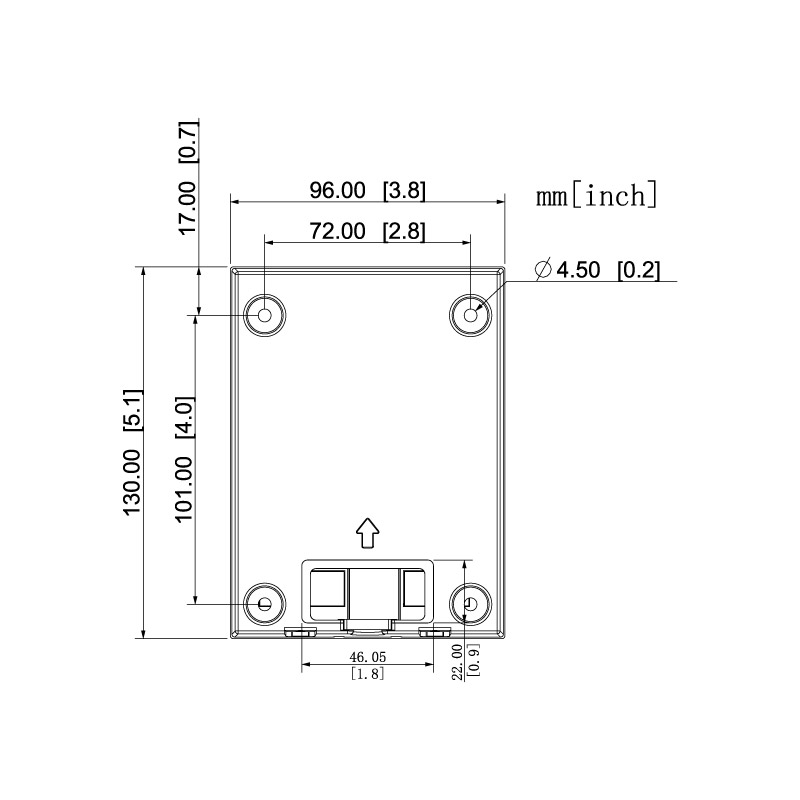

Dimensions
130 x 96 x 29mm
Other
Keypad
N/A
Series
G Series
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
120 mm
Height
150 mm
Depth
60 mm
Weight
0.50 kg
