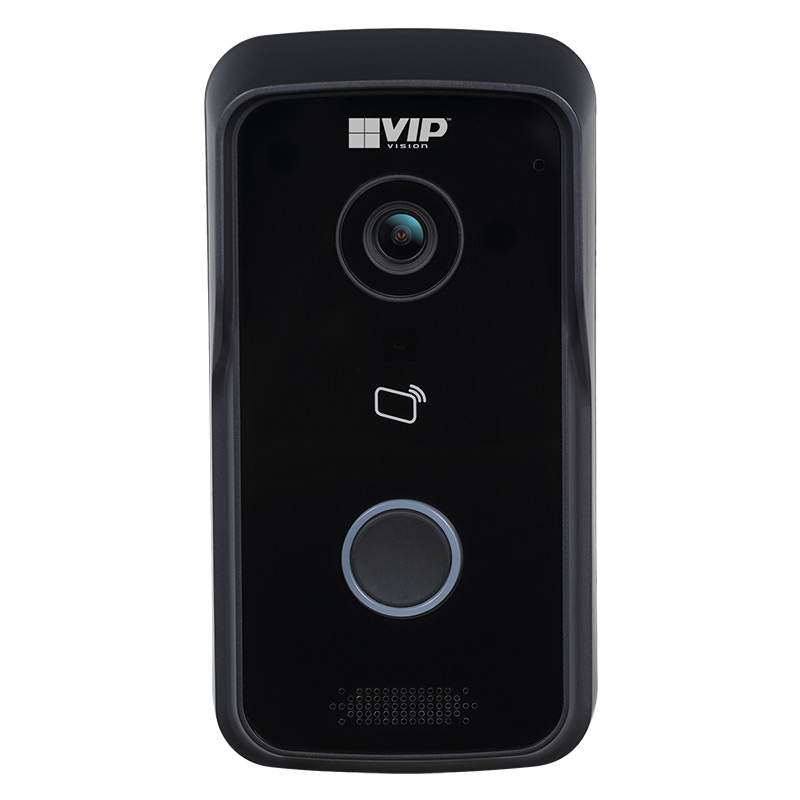

Residential IP Intercom Door Station with WiFi

Brand logo
SKU INTIPRDSDB
Brand logo

Residential IP Intercom Door Station with WiFi

SKU INTIPRDSDB

Available by special order only. Please contact us for lead times.

The INTIPRDSB is a single channel video intercom solution ideal for homes and single-premises buildings. It can be operated via a single backlit button or via NFC-capable card, with voice prompts to inform the user about door lock, call & resident status. Also features door sensor and door strike integration, remote unlock via smartphone and visitor audio/video messaging functions.

Product features:
• 1/4’’ 1.0MP 2.2mm lens camera with 125° FOV
• Built-in microphone and speaker for 2-way talk
• Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
• Connect with intercom monitor(s) via WiFi or Ethernet
• Door control, alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Weather resistant IP65 matte plastic body
• Power over Ethernet (12VDC, 802.3af)

Suggested Products

Suggested product image
13.56MHz NFC Thin Proximity Cards (10 Pack)
ACKEY103
Suggested product image
13.56MHz NFC Proximity Keyfobs (NTAG215)
ACKEY104
Suggested product image
Door Unlock Expander Module
INTIPDM
Suggested product image
Residential IP Intercom Monitor with WiFi (Black)
INTIPMONDB
Suggested product image
Residential IP Intercom Monitor with WiFi (White)
INTIPMONDW
Suggested product image
Residential Stainless Steel IP Intercom Door Station
INTIPRDSVW

Links and Downloads

VIP Vision Residential Series Intercoms Datasheet (PDF) 0.71 MB
VIP Vision Residential IP Intercom Installation Guide (PDF) 3.14 MB
Intercom Config Tool 21.38 MB
Intercom_Firmware_TypeA_20171024 12.45 MB
VIP Vision Intercom Product Guide 2019 (PDF) 6.53 MB
SIP Intercom Firmware Upgrade Guide
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Microprocessor
Button Illumination
Card Support
Built-in NFC Card Reader, Supports up to 10,000 13.56MHz NFC cards
Tamper Detection
Yes
Internal MicroSD Slot
Yes, up to 64GB
Max. Additional Door Stations
Max. Indoor Monitors
App Connection
Camera
Camera System
1/4" 1.0 Megapixel CMOS with 2.2mm lens (Diagonal FoV: 125°)
Low-Light Application
Backlit interface / Day/Night ICR
Input / Output
2 x relay for door control (1 x relay out main lock, 1 x extended by access control module) / 2 x channel alarm interface (1 x unlock button, 1 x feedback)/ 1 x RS485
Audio / 2-Way Talk
Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Ethernet / Network
10M/100Mbps Self-adaptive / TCP/IP protocol
Environmental
Vandal Resistant
N/A
Ingress Protection
IP65 (door station front only)
Construction
Matte Plastic
Installation Options
Power Input
Power Consumption
Weight
Dimensions
Other
Installation Kit
Includes surface mount bracket & Ethernet cable adapter
Power Input / Use
12VDC, PoE (802.3af) / Standby < 1W / Operation < 10W
Weight / Dimensions

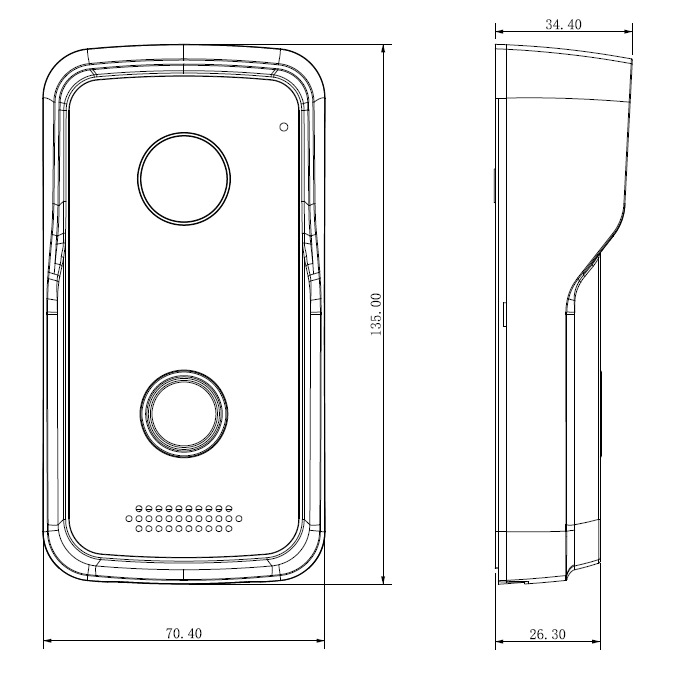

0.40kg / 135 x 70 x 34mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
175 mm
Height
90 mm
Depth
95 mm
Weight
0.80 kg
