Residential Series IP Outdoor Station

Brand logo
SKU INTIPRDSD
Brand logo

Residential Series IP Outdoor Station

SKU INTIPRDSD

Stock may be limited. Please contact us for availability or for an alternative item.

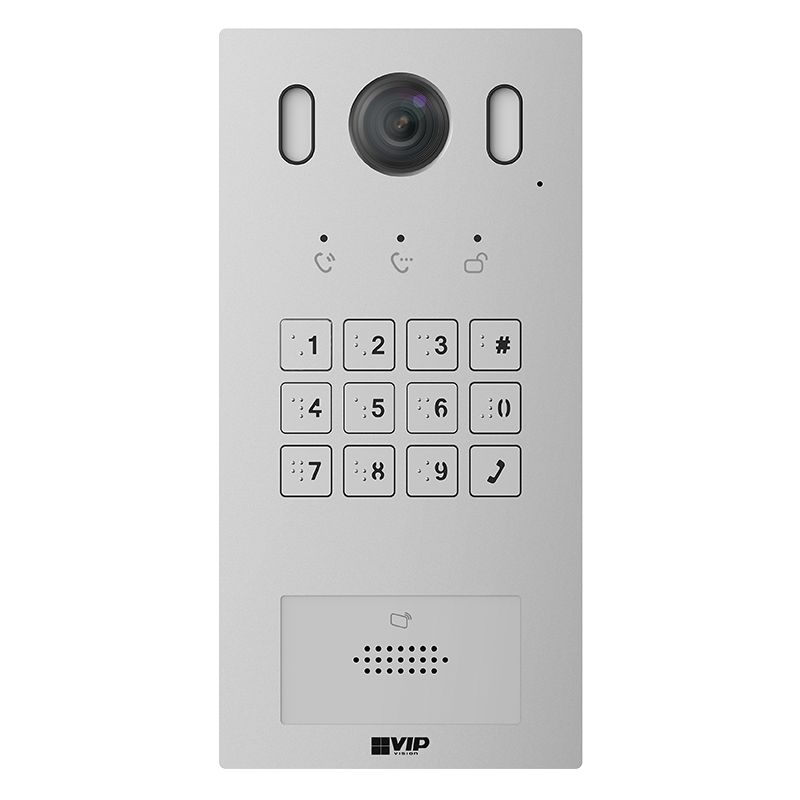

The INTIPRDSD is an outdoors video intercom solution, ideal for gated single or multi building dwellings. Features a 2.0MP camera and embedded microphone and speakers for two-way talk between the door station and indoor monitors.

Product features:
• 1/2.9’’ 2.0MP 2mm lens camera w/ 158° diagonal FOV
• Call residence for two-way talk via indoor monitor(s)
• Built-in NFC reader for keycard or keypad access
• Connect with intercom monitor(s) via Ethernet
• Backlit OLED interface & supplemental white light
• Mechanical buttons with Braille
• Intuitive, easy-to-use interface
• Power over Ethernet (12VDC, 802.3af)
• IP65/IK08 weather & vandal resistant aluminum alloy body (front plate)

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.

*This door station is compatible with 13.56MHz NFC cards only.

Suggested Products

Suggested product image
13.56MHz NFC Thin Proximity Cards (10 Pack)
ACKEY103
Suggested product image
13.56MHz NFC Proximity Keyfobs (NTAG215)
ACKEY104
Suggested product image
Flush Mount Box for INTIPADSD & INTIPRDSD
INTIPADSDFB
Suggested product image
Surface Mount Box for INTIPADSD & INTIPRDSD
INTIPADSDSB
Suggested product image
4-port Unmanaged Fast PoE Ethernet Switch
VSPOE-SW4H

Links and Downloads

VIP Vision INTIPRDSD Datasheet (PDF) 0.66 MB
VIP Vision SIP Intercom Installation Manual (SIP 4.5 Firmware) - Q3 2022 (PDF) 4.94 MB
SIP_Intercom_Firmware_TypeG_20230223 22.60 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Microprocessor
Button Illumination
Backlit 2.3" OLED, Supplemental White Light (AGC)
Card Support
Built-in NFC Card Reader, Supports up to 10,000 MiFare 13.56MHz NFC cards
Tamper Detection
Yes
Internal MicroSD Slot
N/A
Max. Additional Door Stations
20
Max. Indoor Monitors
10
App Connection
QR Code
Camera
Camera System
1/2.9" 2 Megapixel CMOS with 2mm lens (FoV: 138°(H), 78°(V), 158°(D))
Low-Light Application
N/A
Input / Output
N/A
Audio / 2-Way Talk
Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Ethernet / Network
10M/100Mbps Self-adaptive / TCP/IP protocol
Environmental
Vandal Resistant
IK08
Ingress Protection
IP65 (Front plate)
Construction
N/A
Installation Options
Surface mount / Flush mount
Power Input
12VDC, PoE (802.3af)
Power Consumption
Standby <2W / Operation <7W
Weight
1.50kg

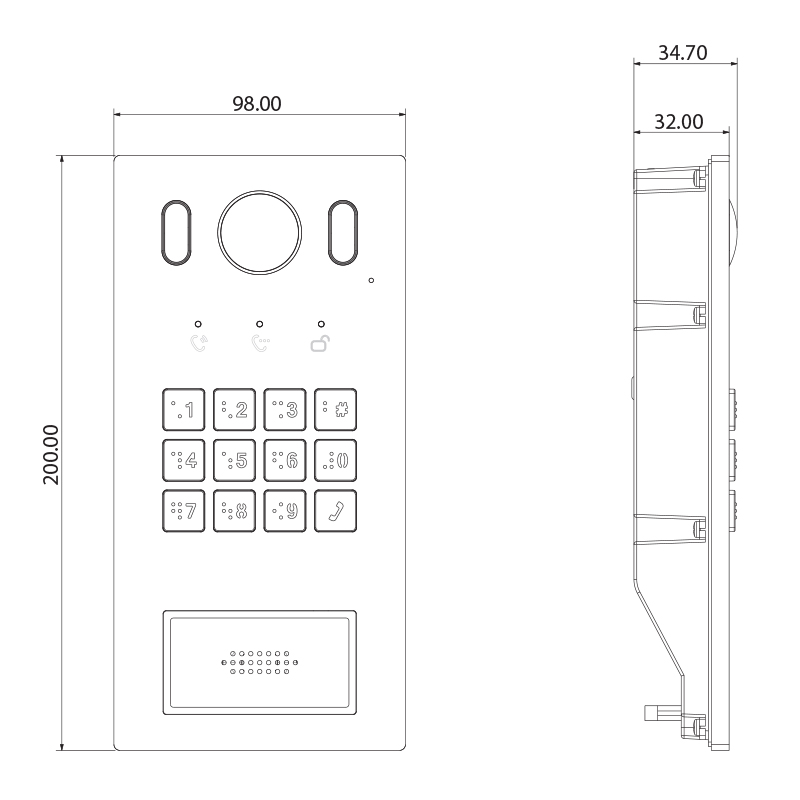

Dimensions
200 x 98 x 32mm
Other
Keypad
N/A
Series
D Series
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
212 mm
Height
458 mm
Depth
96 mm
Weight
1.80 kg
