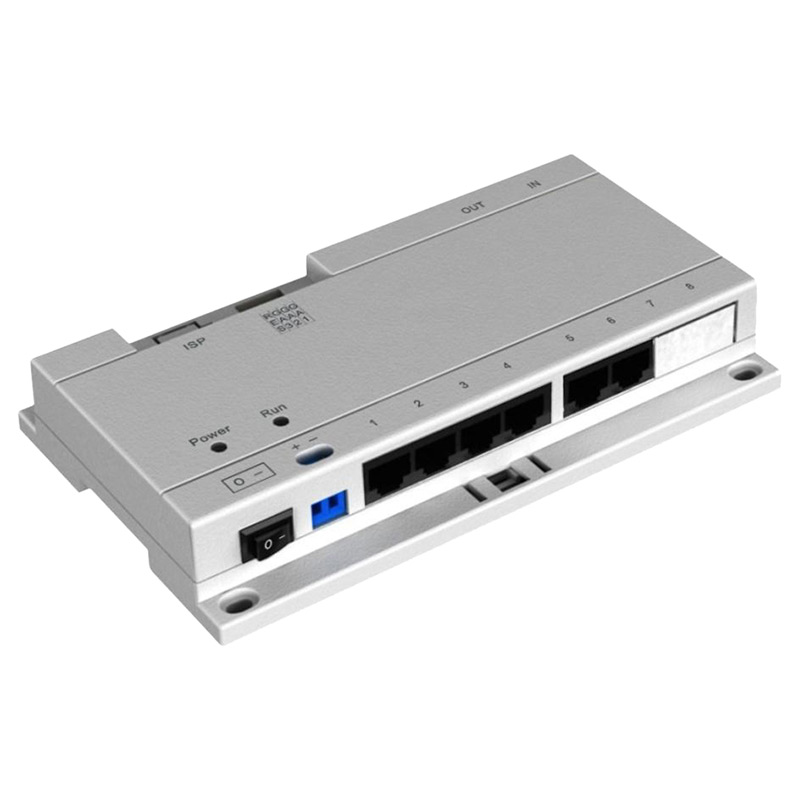

Power Over Ethernet Switch for IP Intercoms

SKU INTIPMONPOE

Power Over Ethernet Switch for IP Intercoms

SKU INTIPMONPOE

Stock may be limited. Please contact us for availability or for an alternative item.

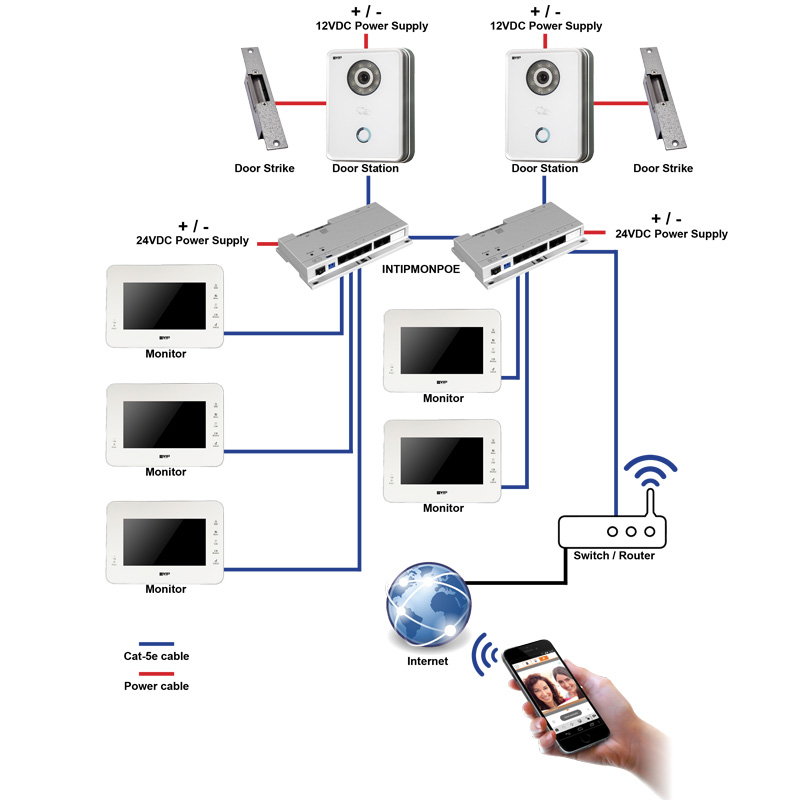

Inline Power over Ethernet switch that facilitates network and power for up to six IP intercom monitors. Simplify the expansion of intercom systems, save time and create professional installations with the INTIPMONPOE.

Product features;
• Integrate 24V Power over Ethernet for easy intercom installation
• IEEE802.3af standard Power over Ethernet (max. 15.4W per port)
• 45W maximum switch load; 0.2W standby switch power consumption
• Plug & play installation, requires no configuration or complex IP setup
• Facilitates network and power via CAT5e for up to 6 x IP indoor monitors
• Surface mount and DIN-rail mounting options
• Includes 24VDC/2.5A power supply (PS24V2.5A)

* Note: This product is ONLY compatible with the INTIPMONBLW, INTIPMONBL and INTIPMON.

Suggested Products

24VDC 2.5A Switched-mode Power Supply
PS24V2.5A

Links and Downloads

INTIPMONPOE Product Brochure (PDF) 0.26 MB

INTIPMONPOE User Manual (PDF) 0.33 MB

VIP Vision Intercom Product Guide 2019 (PDF) 6.53 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

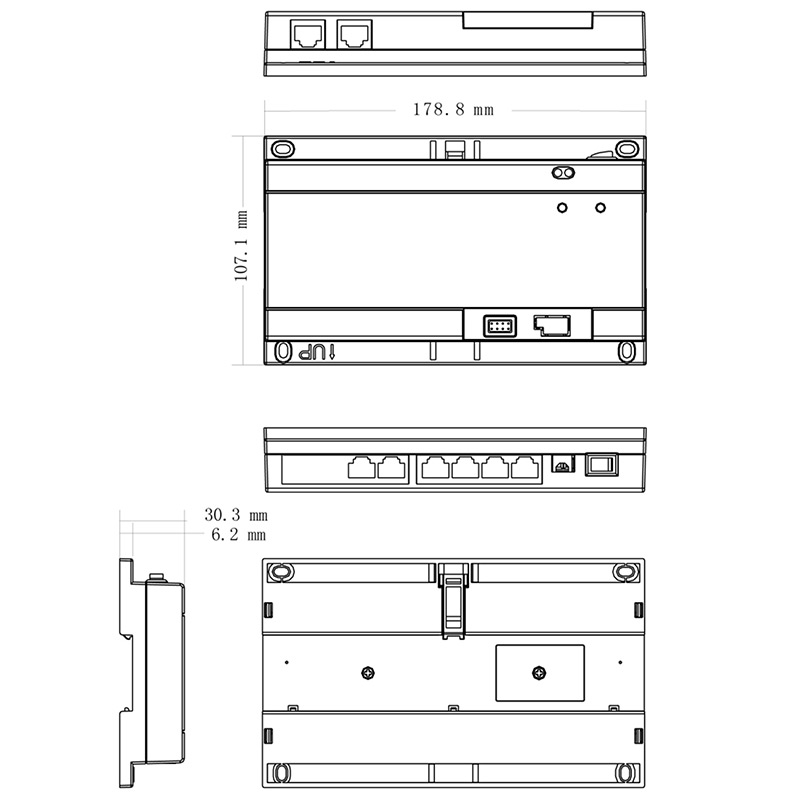

Dimensions

179 x 107 x 30mm

Power Consumption

Standby consumption: 0.2W (under free load) / Max consumption: 45W (under full load)

Voltage

24V

Weight

0.3kg

Working Temperature

-10°C ~ +55°C

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

156 mm

Height

240 mm

Depth

55 mm

Weight

0.30 kg
