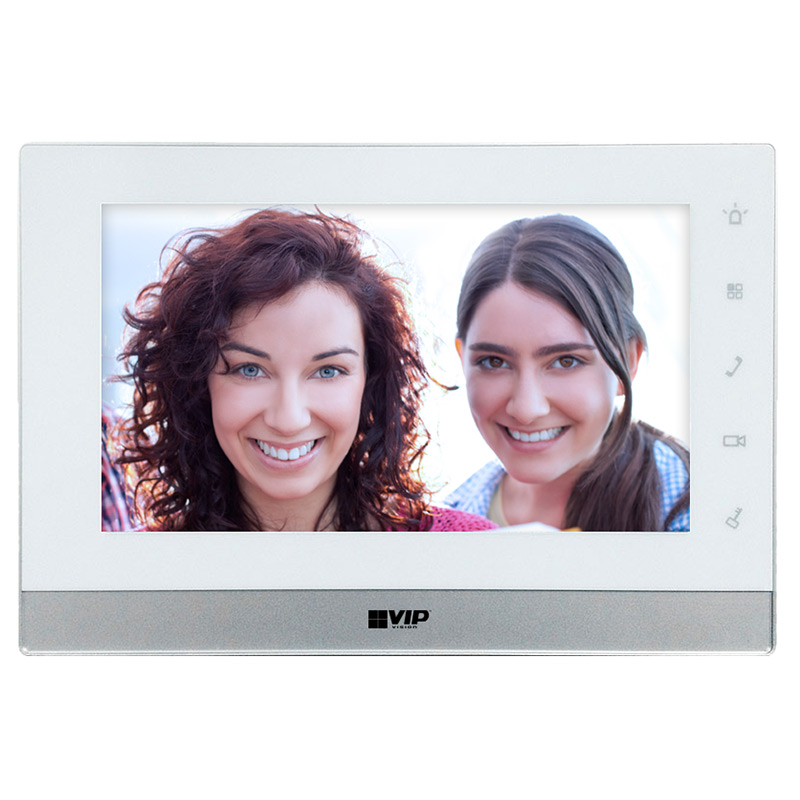

2-Wire Residential IP Intercom Monitor

Brand logo
SKU INTIPMONFB2W
Brand logo

2-Wire Residential IP Intercom Monitor

SKU INTIPMONFB2W

Stock may be limited. Please contact us for availability or for an alternative item.

The INTIPMONFB2W is a part of the VIP Vision range of elegant indoor monitors to accompany your 2-Wire video intercom solution. The unit is operated via the resistive touchscreen, with common functions completed quickly via buttons on the front of the monitor.

Features include:
• 7'' TFT LCD resistive touchscreen controlled, 2-wire intercom monitor
• Surface mount; white gloss and brushed aluminium finish
• 800 x 480 pixels resolution / Internal SD card storage (accessible)
• Omni-directional microphone with two-way talk support
• Supports 6 channels alarm input; 1 channel alarm output
• Stores missed calls / received calls / placed calls / audio-video messages
• Monitor door station camera mode / DND / Connect to multiple stations
• TCP/IP network protocol; 10/100Mbps self-adaptive Ethernet
• Supports network and 24VDC power over 2-wire bus
• Maximum cable run distance of 100m (total)
• Includes surface mounting components

Suggested Products

Suggested product image
2-Wire Residential IP Intercom Network Controller
INTIPNC2W
Suggested product image
2-Wire Residential IP Intercom Door Station
INTIPRDSVW2W

Links and Downloads

VIP Vision 2-Wire Series Intercoms Datasheet (PDF) 0.66 MB
INTIP-2W Series Quick Installation Guide (PDF) 1.50 MB
Intercom Config Tool 21.38 MB
Intercom_Firmware_TypeE_20171023 11.70 MB
VIP Vision Intercom Product Guide 2019 (PDF) 6.53 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Monitor
Main Processor
Embedded Microprocessor
Video Compression
H.264
Audio Input
Omni-directional Microphone
Audio Output
Embedded loudspeaker
Bidirectional Talk
Support
Display Size
7” Colour TFT LCD
Display Resolution
SVGA (800 x 480)
Alarm Support
Yes; 6 Input channels / 1 output channel
Operational Input
Resistive Touchscreen / On-unit Soft Keys
Internal Capacity
MicroSD Slot, up to 32GB
Ethernet
10M/100Mbps Self-adaptive
Network Protocol
TCP/IP
Environmental
Operating Temperature
-10 ~ +60°C / 10 ~ 90%RH (max.)
Installation
Surface wall mounting bracket & kit
Power Input
24VDC
Power Consumption
Standby < 1.5W / Operation < 7W
Dimensions
200mm x 136mm x 22mm
Weight
0.80kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
155 mm
Height
153 mm
Depth
112 mm
Weight
0.30 kg
