Residential Large IP Intercom Monitor with WiFi (White)

Brand logo
SKU INTIPMONDWL
Brand logo

Residential Large IP Intercom Monitor with WiFi (White)

SKU INTIPMONDWL

Available by special order only. Please contact us for lead times.

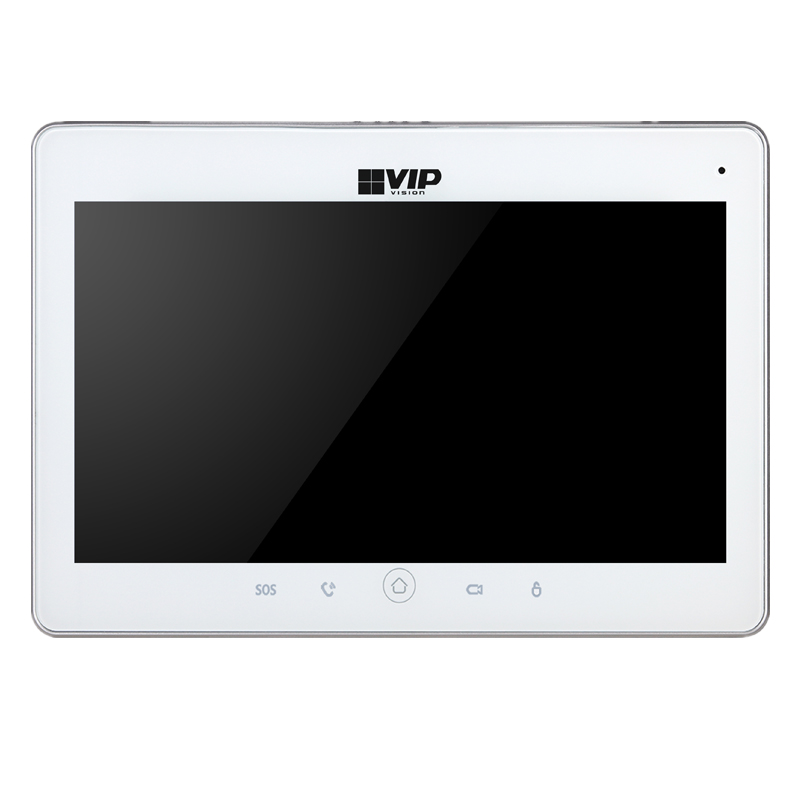

The INTIPMONDWL is a large touch screen indoor monitor that integrates into IP video intercom solutions. The monitor is used for two-way talk with an apartment door station, featuring live-view of the door station camera.

Product features:
• Record and snapshot video calls/messages
• All calls and messages logged
• Prevent unwanted calls with Do Not Disturb mode
• Door station & IP camera live viewing
• Alarm system integration
• 10" TFT capacitive touch screen
• MicroSD storage (up to 32GB)

Suggested Products

Suggested product image
Residential 2 Button IP Intercom Door Station
INTIPDDS2
Suggested product image
Residential IP Intercom Door Station with WiFi
INTIPRDSDB
Suggested product image
Residential Stainless Steel IP Intercom Door Station
INTIPRDSVW

Links and Downloads

VIP Vision Residential Series Intercoms Datasheet (PDF) 0.71 MB
VIP Vision Intercom Product Guide 2019 (PDF) 6.53 MB
SIP Intercom Firmware Upgrade Guide
CE/ RCM Certificate
RoHS Certificate

Specifications

Monitor
Main Processor
Embedded Microprocessor
Video Compression
H.264
Audio Input
Omni-directional Microphone
Audio Output
Embedded loudspeaker
Bidirectional Talk
Support
Display Size
10" LCD Screen
Display Resolution
1024 x 600
Alarm Support
6 Input / 1 Output
Operational Input
Capacitive Touchscreen / Mechanical Keys
Internal Capacity
MicroSD Slot, up to 32GB
Ethernet
10M / 100Mbps Self-adaptive
Network Protocol
TCP / IP
Environmental
Operating Temperature
-10 ~ +55°C / 10 ~ 90%RH (max.)
Installation
Surface wall mounting bracket & kit
Power Input
12VDC, PoE (802.3af)
Power Consumption
Standby < 1W / Operation < 8W

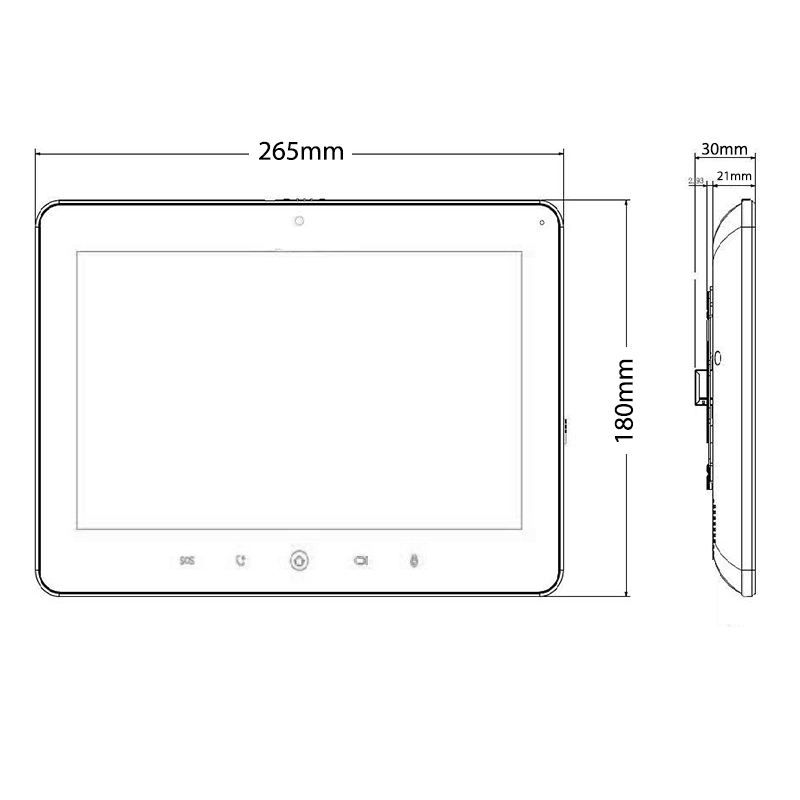

Dimensions
265mm x 180mm x 22mm
Weight
1.0kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
320 mm
Height
80 mm
Depth
240 mm
Weight
1.05 kg
